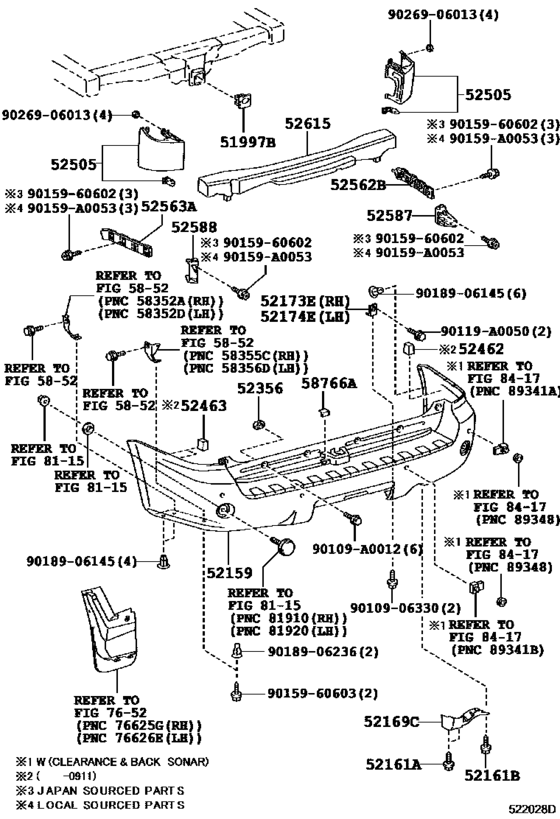

Rear Bumper & Bumper Stay ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51997B
|
51997B
51997-0C040 Cap, Receiver HitchRECEIVER HITCH [11.2008 - 09.2016] USK6# |
51997-0C040 |
US $16.57 |
||
|
52159
|
52159
52159-0C905
Cover, Rear Bumper
[11.2008 - 02.2010] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
52159-0C905 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-0C909 Cover, Rear BumperREAR BUMPER [11.2008 - 02.2010] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
52159-0C909 |
from US $205.32 |
||
|
52159
|
52159
52159-0C906
Cover, Rear Bumper
[11.2008 - 02.2010] USK6#..SR5 |
52159-0C906 |
— | ||
| replacement | |||||
|
52159
|
52159
52159-0C910 Cover, Rear BumperREAR BUMPER [11.2008 - 02.2010] USK6#..SR5 |
52159-0C910 |
US $580.94 |
||
|
52159
|
52159
52159-0C909 Cover, Rear BumperREAR BUMPER [02.2010 - 08.2014] USK6#..LIMD,PLAT; USK6#..SR5 CLEARANCE & BACK SONAR-WITH(FRONT & REAR) |
52159-0C909 |
from US $205.32 |
||
|
52159
|
52159
52159-0C910 Cover, Rear BumperREAR BUMPER [02.2010 - 08.2014] USK6#..SR5 |
52159-0C910 |
US $580.94 |
||
|
52159
|
52159
52159-0C911 Cover, Rear Bumper[08.2014 - 09.2016] USK6# |
52159-0C911 |
from US $324.30 |
||
|
52161A
|
52161A
52161-02020 Clip[11.2008 - 09.2016] USK6# |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161A
|
52161A
52161-16010 Clip[11.2008 - 09.2016] USK6# |
52161-16010 |
from US $1.68 |
||
|
52161B
|
52161B
52161-02020 Clip[11.2008 - 09.2016] USK6# |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161B
|
52161B
52161-16010 Clip[11.2008 - 09.2016] USK6# |
52161-16010 |
from US $1.68 |
||
|
52169C
|
52169C
52169-0C020 Cover, Rear Bumper, LowerREAR BUMPER, LOWER [11.2008 - 09.2016] USK6# |
52169-0C020 |
US $24.46 |
||
|
52173E
|
52173E
52173-0C080 Bracket, Rear Bumper Bar, RhREAR BUMPER BAR, RH [11.2008 - 09.2016] USK6# |
52173-0C080 |
US $4.51 |
||
|
52174E
|
52174E
52173-0C080 Bracket, Rear Bumper Bar, RhREAR BUMPER BAR, RH [11.2008 - 09.2016] USK6# |
52173-0C080 |
US $4.51 |
||
|
52356
|
52356
52356-0C020
Cushion, Rear Bumper Step
[01.2013 - 08.2014] USK6#..SR5 |
52356-0C020 |
— | ||
|
52356
|
52356
52356-60050 Cushion, Rear Bumper Step[11.2008 - 12.2012] USK6# |
52356-60050 |
from US $1.12 |
||
|
52505
|
52505
52505-0C010 Filler Sub-Assy, Rear BumperREAR BUMPER [11.2008 - 09.2016] USK6# RH |
52505-0C010 |
US $35.95 |
||
|
52505
|
52505
52507-0C010 Filler Sub-Assy, Rear BumperREAR BUMPER [11.2008 - 09.2016] USK6# LH |
52507-0C010 |
from US $25.33 |
||
|
52562B
|
52562B
52562-0C010 Retainer, Rear Bumper, Upper RhREAR BUMPER, UPPER RH [11.2008 - 09.2016] USK6# |
52562-0C010 |
from US $54.51 |
||
|
52563A
|
52563A
52563-0C010 Retainer, Rear Bumper, Upper LhREAR BUMPER, UPPER LH [11.2008 - 09.2016] USK6# |
52563-0C010 |
US $49.21 |
||
|
52587
|
52587
52587-0C010 Retainer, Rear Bumper End, RhREAR BUMPER END, RH [11.2008 - 09.2016] USK6# |
52587-0C010 |
US $37.30 |
||
|
52588
|
52588
52588-0C010 Retainer, Rear Bumper End, LhREAR BUMPER END, LH [11.2008 - 09.2016] USK6# |
52588-0C010 |
US $33.60 |
||
|
52615
|
52615
52615-0C010 Absorber, Rear Bumper EnergyREAR BUMPER ENERGY [11.2008 - 09.2016] USK6# |
52615-0C010 |
US $88.82 |
||
|
58766A
|
58766A
58766-0C010 Cover, Jack Box HoleJACK BOX HOLE [11.2008 - 09.2016] USK6# |
58766-0C010 |
from US $2.63 |
||
|
90109A0012
|
90109A0012
90109-A0012 BOLT |
90109-A0012 |
US $1.60 |
||
|
90119A0050
|
90119A0050
90119-A0050 New Genuine Part |
90119-A0050 |
US $1.12 |
||
|
90159A0053
|
90159A0053
90159-A0053
New Genuine Part
|
90159-A0053 |
— | ||
|
9010906330
|
9010906330
90109-06330 BOLT |
90109-06330 |
from US $0.94 |
||
|
9015960602
|
9015960602
90159-60602 SCREW |
90159-60602 |
from US $0.62 |
||
|
9015960603
|
9015960603
90159-60603 SCREW WITH-WASHER |
90159-60603 |
from US $0.66 |
||
|
9018906145
|
9018906145
90189-06145 GROMMET SCREW |
90189-06145 |
from US $1.01 |
||
|
9018906236
|
9018906236
90189-06236 GROMMET SCREW |
90189-06236 |
from US $0.59 |
||
|
9026906013
|
9026906013
90269-06013 RIVET |
90269-06013 |
from US $0.62 |
||
