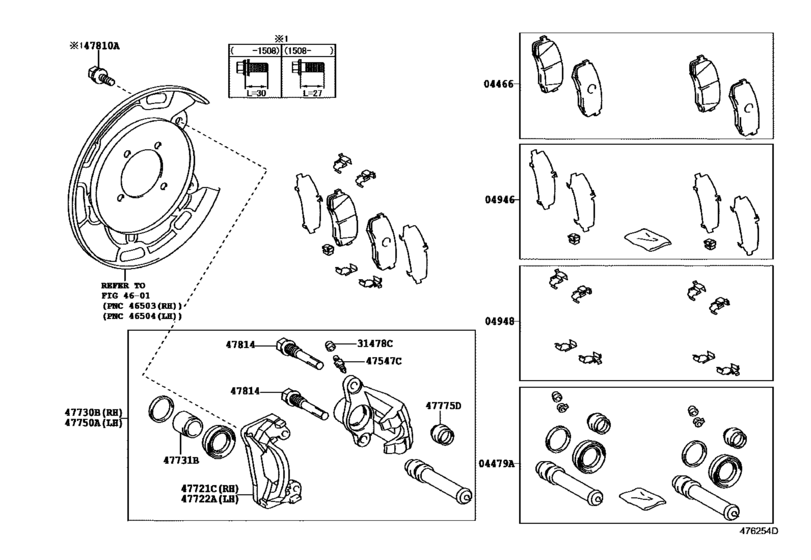

Rear Disc Brake Caliper & Dust Cover ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04466
|
04466
04466-0C010 Pad Kit, Disc Brake, RearDISC BRAKE, REAR [11.2008 - 09.2016] USK6# MARK ADVICS PS558H |
04466-0C010 |
from US $121.36 |
||
|
04479A
|
04479A
04479-0C040 Cylinder Kit, Disc Brake, Rear[11.2008 - 09.2016] USK6# |
04479-0C040 |
US $37.39 |
||
| replacement | |||||
|
04479A
|
04479A
04479-60270 Cylinder Kit, Disc Brake, Rear[11.2008 - 09.2016] USK6# |
04479-60270 |
from US $22.80 |
||
|
04946
|
04946
04946-0C010 Shim Kit, Anti Squeal(For Rear Disc Brake)ANTI SQUEAL(FOR REAR DISC BRAKE) [11.2008 - 09.2016] USK6# |
04946-0C010 |
from US $21.58 |
||
|
04948
|
04948
04948-0C020 Fitting Kit, Disc Brake, RearDISC BRAKE, REAR [11.2008 - 09.2016] USK6# |
04948-0C020 |
US $29.64 |
||
|
31478C
|
31478C
31478-30010 Bleeder Plug Cap[11.2008 - 09.2016] USK6# |
31478-30010 |
from US $1.66 |
||
|
47547C
|
47547C
47547-12130
Plug, Bleeder(For Front Disc Brake)
[11.2008 - 09.2016] USK6# |
47547-12130 |
— | ||
|
47721C
|
47721C
47821-0C010
Mounting, Rear Disc Brake Cylinder, Rh
[11.2008 - 08.2015] USK6# |
47821-0C010 |
— | ||
|
47721C
|
47721C
47821-0C020
Mounting, Rear Disc Brake Cylinder, Rh
[08.2015 - 09.2016] USK6# |
47821-0C020 |
— | ||
|
47722A
|
47722A
47822-0C010 Mounting, Rear Disc Brake Cylinder, LhREAR DISC BRAKE CYLINDER, LH [11.2008 - 08.2015] USK6# |
47822-0C010 |
US $108.33 |
||
|
47722A
|
47722A
47822-0C020
Mounting, Rear Disc Brake Cylinder, Lh
[08.2015 - 09.2016] USK6# |
47822-0C020 |
— | ||
|
47730B
|
47730B
47830-0C010 Cylinder Assy, Rear Disc Brake, RhREAR DISC BRAKE, RH [11.2008 - 08.2015] USK6# |
47830-0C010 |
US $387.30 |
||
|
47730B
|
47730B
47830-0C020
Cylinder Assy, Rear Disc Brake, Rh
[08.2015 - 09.2016] USK6# |
47830-0C020 |
— | ||
|
47731B
|
47731B
47831-0C010 Piston, Rear Disc BrakeREAR DISC BRAKE [11.2008 - 09.2016] USK6# |
47831-0C010 |
US $19.91 |
||
|
47750A
|
47750A
47850-0C010 Cylinder Assy, Disc Brake, Rear LhDISC BRAKE, REAR LH [11.2008 - 08.2015] USK6# |
47850-0C010 |
US $360 |
||
|
47750A
|
47750A
47850-0C020
Cylinder Assy, Disc Brake, Rear Lh
[08.2015 - 09.2016] USK6# |
47850-0C020 |
— | ||
|
47775D
|
47775D
47875-0C010 Boot, Bush Dust(For Rear Disc Brake)BUSH DUST(FOR REAR DISC BRAKE) [11.2008 - 09.2016] USK6# |
47875-0C010 |
US $3.84 |
||
| replacement | |||||
|
47775D
|
47775D
47775-35010 Boot, Bush Dust(For Front Disc Brake)[11.2008 - 09.2016] USK6# |
47775-35010 |
from US $3.68 |
||
|
47810A
|
47810A
90105-A0337
Bolt, Hexagon(For Rear Caliper)
[08.2015 - 09.2016] USK6# |
90105-A0337 |
— | ||
|
47810A
|
47810A
90119-A0276
Bolt, Hexagon(For Rear Caliper)
[11.2008 - 08.2015] USK6# |
90119-A0276 |
— | ||
|
47814
|
47814
47814-0C010 Pin, Cylinder Slide, No.1(For Rear Disc Brake)CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE) [11.2008 - 09.2016] USK6# |
47814-0C010 |
US $9.12 |
||
