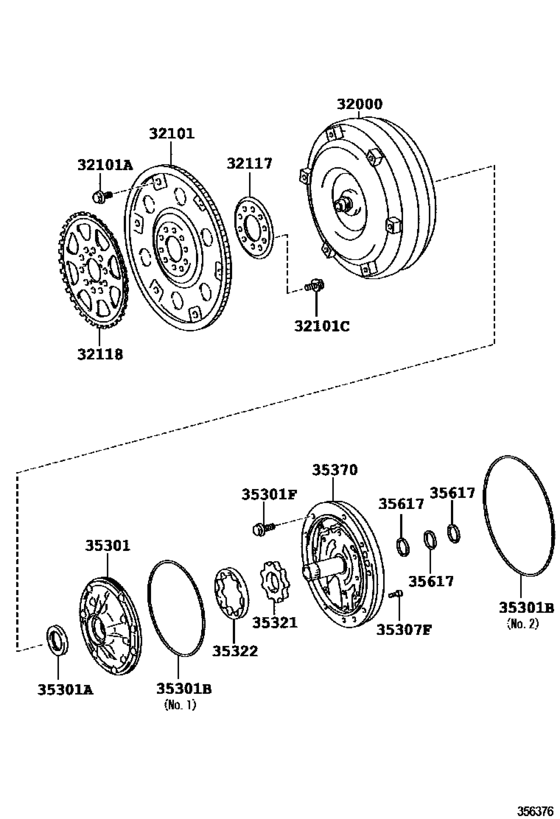

Torque Converter, Front Oil Pump & Chain (Atm) ([11.2008 - ] AB60E,AB60F (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
32000
|
32000
32000-0C030
Converter Assy, Torque
[11.2008 - 07.2010] USK6# |
32000-0C030 |
— | ||
| replacement | |||||
|
32000
|
32000
32000-0C060
Converter Assy, Torque
[11.2008 - 07.2010] USK6# |
32000-0C060 |
— | ||
|
32000
|
32000
32000-0C060
Converter Assy, Torque
[07.2010 - 09.2016] USK6# |
32000-0C060 |
— | ||
|
32101
|
32101
32101-0C020
Gear Sub-Assy, Drive Plate & Ring
[11.2008 - 09.2016] USK6# |
32101-0C020 |
— | ||
|
32101A
|
32101A
90105-10551 Bolt(For Drive Plate & Torque Converter Setting)[11.2008 - 09.2016] USK6# *10-1.25PX16-12.9 |
90105-10551 |
US $1.60 |
||
|
32101A
|
32101A
90105-10552 Bolt(For Drive Plate & Torque Converter Setting)[11.2008 - 09.2016] USK6# *10-1.25PX16-13 |
90105-10552 |
US $0.96 |
||
|
32101C
|
32101C
90910-02129 Bolt, Flywheel Setting[11.2008 - 09.2016] USK6# *10-1.25PX23-16,(J) |
90910-02129 |
from US $1.95 |
||
|
32101C
|
32101C
90910-A2002
Bolt, Hexagon(For Drive Plate Setting)
[11.2008 - 09.2016] USK6# *10-1.25PX23-16,(L) |
90910-A2002 |
— | ||
|
32117
|
32117
32117-34010 Spacer, Drive Plate, Rear[11.2008 - 09.2016] USK6# |
32117-34010 |
from US $12.52 |
||
|
32118
|
32118
32118-34010 Rotor, Crankshaft Angle Sensor[11.2008 - 09.2016] USK6# |
32118-34010 |
from US $27.66 |
||
|
35301
|
35301
35301-0C030
Body Sub-Assy, Front Oil Pump
[11.2008 - 01.2013] USK6# |
35301-0C030 |
— | ||
| replacement | |||||
|
35301
|
35301
35310-0C050
Body Sub-Assy, Front Oil Pump
[11.2008 - 01.2013] USK6# |
35310-0C050 |
— | ||
|
35301
|
35301
35301-0C040
Body Sub-Assy, Front Oil Pump
[01.2013 - 09.2016] USK6# |
35301-0C040 |
— | ||
|
35301A
|
35301A
90311-45032 Seal, Oil (For Front Oil Pump)[11.2008 - 09.2016] USK6# |
90311-45032 |
from US $7.52 |
||
|
35301B
|
35301B
90301-99175 Ring, O (For Front Oil Pump Body)O (FOR FRONT OIL PUMP BODY) [11.2008 - 09.2016] USK6# NO.1 |
90301-99175 |
from US $3.14 |
||
|
35301B
|
35301B
90301-99178 Ring, O (For Front Oil Pump Body)O (FOR FRONT OIL PUMP BODY) [11.2008 - 09.2016] USK6# NO.2 |
90301-99178 |
US $3.84 |
||
|
35301F
|
35301F
90105-08065 Bolt (For Overdrive Support)[11.2008 - 07.2013] USK6# *8-1.25PX45-35 |
90105-08065 |
US $2.04 |
||
|
35301F
|
35301F
90105-A0313
Bolt (For Front Oil Pump Setting)
[07.2013 - 09.2016] USK6# *8-1.25PX45-35 |
90105-A0313 |
— | ||
|
35307F
|
35307F
90148-60079 Bolt (For Stator Shaft)[11.2008 - 09.2016] USK6# |
90148-60079 |
US $0.52 |
||
|
35321
|
35321
35321-0C080 Gear, Front Oil Pump DriveFRONT OIL PUMP DRIVE [11.2008 - 09.2016] USK6# T=11.66,MARK 0 |
35321-0C080 |
US $39.66 |
||
|
35321
|
35321
35321-0C090
Gear, Front Oil Pump Drive
[11.2008 - 09.2016] USK6# T=11.66,MARK 1 |
35321-0C090 |
— | ||
|
35321
|
35321
35321-0C100
Gear, Front Oil Pump Drive
[11.2008 - 09.2016] USK6# T=11.66,MARK 2 |
35321-0C100 |
— | ||
|
35321
|
35321
35321-0C110
Gear, Front Oil Pump Drive
[11.2008 - 09.2016] USK6# T=11.66,MARK 3 |
35321-0C110 |
— | ||
|
35321
|
35321
35321-0C120
Gear, Front Oil Pump Drive
[11.2008 - 09.2016] USK6# T=11.66,MARK 4 |
35321-0C120 |
— | ||
|
35321
|
35321
35321-0C130
Gear, Front Oil Pump Drive
[11.2008 - 09.2016] USK6# T=11.66,MARK 5 |
35321-0C130 |
— | ||
|
35321
|
35321
35321-0C140
Gear, Front Oil Pump Drive
[11.2008 - 09.2016] USK6# T=11.66,MARK 6 |
35321-0C140 |
— | ||
|
35322
|
35322
35322-0C080 Gear, Front Oil Pump DrivenFRONT OIL PUMP DRIVEN [11.2008 - 09.2016] USK6# T=11.66,MARK 0 |
35322-0C080 |
US $39.66 |
||
|
35322
|
35322
35322-0C090
Gear, Front Oil Pump Driven
[11.2008 - 09.2016] USK6# T=11.66,MARK 1 |
35322-0C090 |
— | ||
|
35322
|
35322
35322-0C100
Gear, Front Oil Pump Driven
[11.2008 - 09.2016] USK6# T=11.66,MARK 2 |
35322-0C100 |
— | ||
|
35322
|
35322
35322-0C110
Gear, Front Oil Pump Driven
[11.2008 - 09.2016] USK6# T=11.66,MARK 3 |
35322-0C110 |
— | ||
|
35322
|
35322
35322-0C120
Gear, Front Oil Pump Driven
[11.2008 - 09.2016] USK6# T=11.66,MARK 4 |
35322-0C120 |
— | ||
|
35322
|
35322
35322-0C130
Gear, Front Oil Pump Driven
[11.2008 - 09.2016] USK6# T=11.66,MARK 5 |
35322-0C130 |
— | ||
|
35322
|
35322
35322-0C140
Gear, Front Oil Pump Driven
[11.2008 - 09.2016] USK6# T=11.66,MARK 6 |
35322-0C140 |
— | ||
|
35370
|
35370
35370-0C020
Shaft Assy, Stator
[11.2008 - 01.2013] USK6# |
35370-0C020 |
— | ||
| replacement | |||||
|
35370
|
35370
35370-0C030 Shaft Assy, Stator[11.2008 - 01.2013] USK6# |
35370-0C030 |
US $200.93 |
||
|
35370
|
35370
35370-0C030 Shaft Assy, Stator[01.2013 - 09.2016] USK6# |
35370-0C030 |
US $200.93 |
||
|
35617
|
35617
35617-50030 Ring, Clutch Drum Oil Seal[11.2008 - 09.2016] USK6# |
35617-50030 |
from US $4.02 |
||
