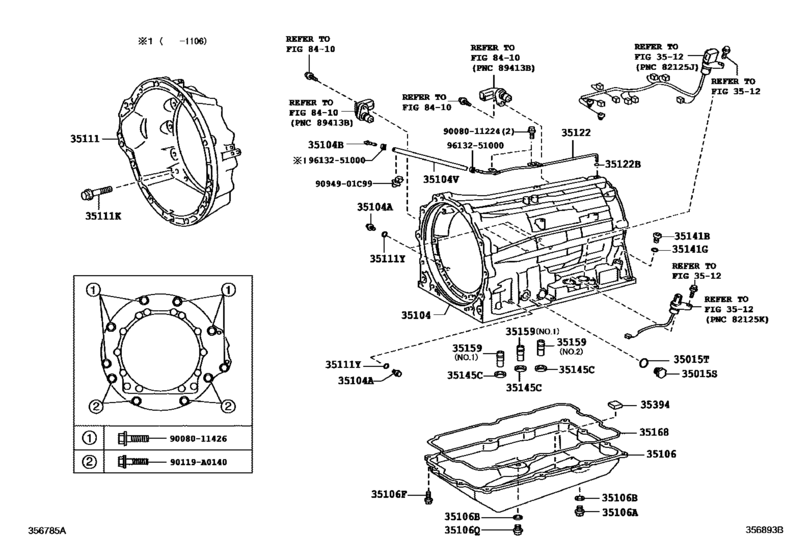

Transmission Case & Oil Pan (Atm) ([11.2008 - ] AB60E,AB60F (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35015S
|
35015S
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[11.2008 - 09.2016] USK6# |
90341-18059 |
US $3.04 |
||
|
35015T
|
35015T
90301-15004 Ring, O(For Oil Cooler Tube Union)[11.2008 - 09.2016] USK6# |
90301-15004 |
from US $1.60 |
||
|
35104
|
35104
35104-0C030
Case Sub-Assy, Automatic Transmission
[11.2008 - 09.2016] USK6# |
35104-0C030 |
— | ||
|
35104A
|
35104A
90341-A0001 Plug, Automatic Transmission CaseAUTOMATIC TRANSMISSION CASE [11.2008 - 09.2016] USK6# |
90341-A0001 |
US $2.18 |
||
|
35104B
|
35104B
90930-03188 Plug, Breather, No.1 (Atm)BREATHER, NO.1 (ATM) [11.2008 - 06.2011] USK6# |
90930-03188 |
US $8.16 |
||
|
35104B
|
35104B
90930-03211 Plug, Breather, No.1 (Atm)[06.2011 - 09.2016] USK6# |
90930-03211 |
US $2.97 |
||
|
35104V
|
35104V
90445-10020 Hose (For Breather Plug)[11.2008 - 09.2016] USK6# |
90445-10020 |
from US $4.54 |
||
|
35106
|
35106
35106-0C030
Pan Sub-Assy, Automatic Transmission Oil
[11.2008 - 09.2016] USK6# |
35106-0C030 |
— | ||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[11.2008 - 09.2016] USK6# |
90341-10011 |
from US $1.60 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[11.2008 - 09.2016] USK6# |
35178-30010 |
from US $1.76 |
||
|
35106F
|
35106F
90119-06A02 Bolt (For Automatic Transmission Oil Pan)[02.2014 - 09.2016] USK6# |
90119-06A02 |
from US $0.59 |
||
|
35106F
|
35106F
90119-A0401
Bolt (For Automatic Transmission Oil Pan)
[07.2013 - 02.2014] USK6# |
90119-A0401 |
— | ||
|
35106F
|
35106F
91611-B0625 Bolt (For Automatic Transmission Oil Pan)[11.2008 - 07.2013] USK6# |
91611-B0625 |
from US $0.38 |
||
|
35106Q
|
35106Q
90341-10021 Plug, Drain(Hv) (Check)[11.2008 - 09.2016] USK6# |
90341-10021 |
from US $1.92 |
||
|
35111
|
35111
35111-0C050
Housing, Automatic Transmission
[11.2008 - 09.2016] USK6# |
35111-0C050 |
— | ||
|
35111K
|
35111K
90119-A0272 Bolt (For Transmission Housing & Case Setting)[11.2008 - 09.2016] USK6# *10-1.5PX35-29.3 |
90119-A0272 |
US $1.31 |
||
|
35111Y
|
35111Y
90301-06196 O Ring, Transaxle Case, No.1[11.2008 - 09.2016] USK6# |
90301-06196 |
from US $2.26 |
||
|
35122
|
35122
35122-34020
Tube, Breather (For Automatic Transaxle)
[11.2008 - 09.2016] USK6# |
35122-34020 |
— | ||
|
35122B
|
35122B
90301-04014 O Ring, Transmission Breather[11.2008 - 09.2016] USK6# |
90301-04014 |
US $1.22 |
||
|
35141B
|
35141B
90341-14011 Plug, Automatic Transmission Case[11.2008 - 09.2016] USK6# |
90341-14011 |
from US $3.04 |
||
|
35141G
|
35141G
90301-11030 Ring, O(For Oil Cooler Tube Union)[11.2008 - 09.2016] USK6# |
90301-11030 |
from US $2.24 |
||
|
35145C
|
35145C
35145-60020 Gasket, Transaxle Case[11.2008 - 09.2016] USK6# |
35145-60020 |
from US $5.76 |
||
|
35159
|
35159
35159-0C020
Gasket, Brake Drum
[11.2008 - 09.2016] USK6# NO.2 |
35159-0C020 |
— | ||
|
35159
|
35159
35159-0C030
Gasket, Brake Drum
[11.2008 - 09.2016] USK6# NO.1 |
35159-0C030 |
— | ||
|
35168
|
35168
35168-34020 Gasket, Automatic Transmission Oil PanAUTOMATIC TRANSMISSION OIL PAN [05.2009 - 09.2016] USK6# |
35168-34020 |
from US $27.06 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[11.2008 - 09.2016] USK6# |
35394-30011 |
from US $5.76 |
||
|
90119A0140
|
90119A0140
90119-A0140
Bolt(For Transaxle & Engine Setting)
|
90119-A0140 |
— | ||
|
9094901C99
|
9094901C99
90949-01C99 Clip, Radiator Hose, No.5 |
90949-01C99 |
US $1.31 |
||
|
9008011224
|
9008011224
90080-11224 New Genuine Part |
90080-11224 |
US $1.16 |
||
|
9008011426
|
9008011426
90080-11426 Bolt(For Transaxle & Engine Setting) |
90080-11426 |
US $2.77 |
||
|
9613251000
|
9613251000
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.62 |
