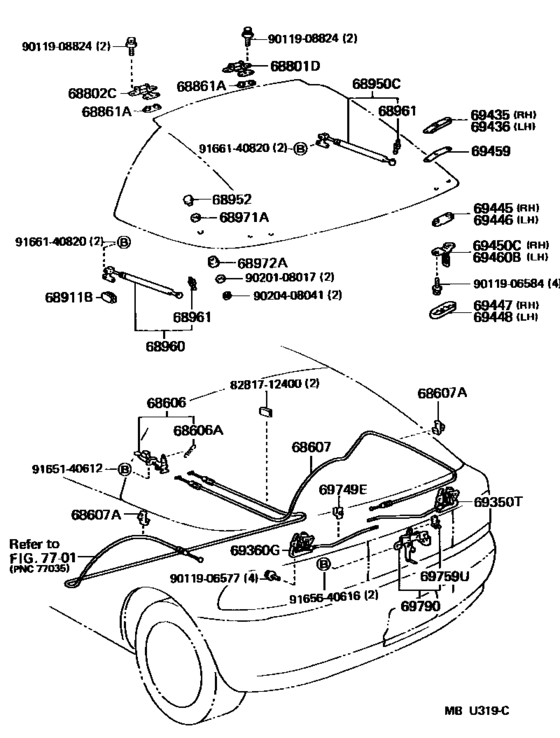

Back Door Lock & Handle ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-18010
Lever Sub-Assy, Back Door Lock Open
[03.1990 - 12.1995] EXY10 |
64606-18010 |
— | ||
|
68606A
|
68606A
90506-09034 Spring, Tension(For Luggage Door Lock Open Lever)[03.1990 - 12.1995] EXY10 |
90506-09034 |
US $2.97 |
||
|
68607
|
68607
64607-18020 Cable Sub-Assy, Back Door Lock Control[03.1990 - 01.1991] EXY10 |
64607-18020 |
US $44.70 |
||
|
68607
|
68607
64607-18040 Cable Sub-Assy, Back Door Lock Control[01.1991 - 12.1995] EXY10 |
64607-18040 |
US $26.50 |
||
|
68607A
|
68607A
69749-12010 Clamp(For Hood Lock Control Cable)[03.1990 - 12.1995] EXY10 |
69749-12010 |
from US $2.24 |
||
|
68801D
|
68801D
68801-18010 Hinge Sub-Assy, Back Door, Rh[03.1990 - 12.1995] EXY10 |
68801-18010 |
US $33.63 |
||
|
68802C
|
68802C
68802-18010 Hinge Sub-Assy, Back Door, Lh[03.1990 - 12.1995] EXY10 |
68802-18010 |
US $33.63 |
||
|
68861A
|
68861A
68861-18010 Pad, Back Door Hinge[03.1990 - 12.1995] EXY10 |
68861-18010 |
US $4.66 |
||
|
68911B
|
68911B
68911-18010 Cover, Back Door Stay[03.1990 - 12.1995] EXY10 |
68911-18010 |
US $10.63 |
||
|
68950C
|
68950C
68950-19735
Stay Assy, Back Door, Rh
[03.1990 - 03.1991] EXY10 |
68950-19735 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-19736
Stay Assy, Back Door, Rh
[03.1990 - 03.1991] EXY10 |
68950-19736 |
— | ||
|
68950C
|
68950C
68950-19736
Stay Assy, Back Door, Rh
[03.1991 - 04.1991] EXY10 |
68950-19736 |
— | ||
|
68950C
|
68950C
68950-19737
Stay Assy, Back Door, Rh
[04.1991 - 06.1992] EXY10 |
68950-19737 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-19738
Stay Assy, Back Door, Rh
[04.1991 - 06.1992] EXY10 |
68950-19738 |
— | ||
|
68950C
|
68950C
68950-19738
Stay Assy, Back Door, Rh
[06.1992 - 12.1995] EXY10 |
68950-19738 |
— | ||
|
68952
|
68952
68952-18010
Retainer, Back Door Stay
[03.1990 - 04.1991] EXY10 |
68952-18010 |
— | ||
|
68952
|
68952
68952-18020
Retainer, Back Door Stay
[04.1991 - 12.1995] EXY10 |
68952-18020 |
— | ||
|
68960
|
68960
68960-19425
Stay Assy, Back Door, Lh
[03.1990 - 03.1991] EXY10 |
68960-19425 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-19426
Stay Assy, Back Door, Lh
[03.1990 - 03.1991] EXY10 |
68960-19426 |
— | ||
|
68960
|
68960
68960-19426
Stay Assy, Back Door, Lh
[03.1991 - 04.1991] EXY10 |
68960-19426 |
— | ||
|
68960
|
68960
68960-19427
Stay Assy, Back Door, Lh
[04.1991 - 06.1992] EXY10 |
68960-19427 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-19428
Stay Assy, Back Door, Lh
[04.1991 - 06.1992] EXY10 |
68960-19428 |
— | ||
|
68960
|
68960
68960-19428
Stay Assy, Back Door, Lh
[06.1992 - 12.1995] EXY10 |
68960-19428 |
— | ||
|
68961
|
68961
68961-12010
Bolt, Hood Support, No.1
[03.1990 - 12.1995] EXY10 |
68961-12010 |
— | ||
|
68971A
|
68971A
68971-18010
Packing, Back Door Stay, No.1
[03.1990 - 04.1991] EXY10 |
68971-18010 |
— | ||
|
68971A
|
68971A
68971-18020
Packing, Back Door Stay, No.1
[04.1991 - 12.1995] EXY10 |
68971-18020 |
— | ||
|
68972A
|
68972A
68972-18010
Packing, Back Door Stay, No.2
[03.1990 - 12.1995] EXY10 |
68972-18010 |
— | ||
|
69350T
|
69350T
69350-18010
Lock Assy, Back Door, Rh
[03.1990 - 12.1995] EXY10 |
69350-18010 |
— | ||
|
69360G
|
69360G
69360-18010
Lock Assy, Back Door, Lh
[03.1990 - 12.1995] EXY10 |
69360-18010 |
— | ||
|
69435
|
69435
69435-18010
Retainer, Back Door Lock Striker, Rh
[03.1990 - 06.1992] EXY10 |
69435-18010 |
— | ||
| replacement | |||||
|
69435
|
69435
69435-18011 Retainer, Back Door Lock Striker, Rh[03.1990 - 06.1992] EXY10 |
69435-18011 |
US $8.30 |
||
|
69435
|
69435
69435-18011 Retainer, Back Door Lock Striker, Rh[06.1992 - 12.1995] EXY10 |
69435-18011 |
US $8.30 |
||
|
69436
|
69436
69436-18010
Retainer, Back Door Lock Striker, Lh
[03.1990 - 06.1992] EXY10 |
69436-18010 |
— | ||
| replacement | |||||
|
69436
|
69436
69436-18011 Retainer, Back Door Lock Striker, Lh[03.1990 - 06.1992] EXY10 |
69436-18011 |
US $8.30 |
||
|
69436
|
69436
69436-18011 Retainer, Back Door Lock Striker, Lh[06.1992 - 12.1995] EXY10 |
69436-18011 |
US $8.30 |
||
|
69445
|
69445
69445-18010 Pad, Back Door Lock Striker, Rh[03.1990 - 12.1995] EXY10 |
69445-18010 |
US $6.99 |
||
|
69446
|
69446
69446-18010 Pad, Back Door Lock Striker, Lh[03.1990 - 12.1995] EXY10 |
69446-18010 |
US $6.99 |
||
|
69447
|
69447
69447-18010 Cover, Back Door Lock Striker, Rh[03.1990 - 12.1995] EXY10 |
69447-18010 |
US $9.03 |
||
|
69448
|
69448
69448-18010 Pad, Back Door Lock Striker[03.1990 - 12.1995] EXY10 |
69448-18010 |
US $7.43 |
||
|
69450C
|
69450C
69450-18010 Striker Assy, Back Door Lock, Rh[03.1990 - 07.1990] EXY10 |
69450-18010 |
US $15 |
||
|
69450C
|
69450C
69450-18020 Striker Assy, Back Door Lock, Rh[07.1990 - 12.1995] EXY10 L=51.4 |
69450-18020 |
US $15 |
||
|
69450C
|
69450C
69450-18030 Striker Assy, Back Door Lock, Rh[07.1990 - 12.1995] EXY10 L=48.4 |
69450-18030 |
US $15 |
||
|
69459
|
69459
69459-18010 Pad, Back Door Lock Striker Retainer[03.1990 - 12.1995] EXY10 |
69459-18010 |
US $3.49 |
||
|
69460B
|
69460B
69460-18010
Striker Assy, Back Door Lock, Lh
[03.1990 - 07.1990] EXY10 |
69460-18010 |
— | ||
|
69460B
|
69460B
69460-18020 Striker Assy, Back Door Lock, Lh[07.1990 - 12.1995] EXY10 L=51.4 |
69460-18020 |
US $15 |
||
|
69460B
|
69460B
69460-18030 Striker Assy, Back Door Lock, Lh[07.1990 - 12.1995] EXY10 L=48.4 |
69460-18030 |
US $15 |
||
|
69749E
|
69749E
69749-18010 Clamp, Back Door Lock Link[03.1990 - 12.1995] EXY10 |
69749-18010 |
US $2.33 |
||
|
69759U
|
69759U
69759-50040 Snap, Front Door Lock Control Rod[03.1990 - 12.1995] EXY10 |
69759-50040 |
US $3.84 |
||
|
69790
|
69790
69790-18010
Control Assy, Back Door Lock
[03.1990 - 12.1995] EXY10 |
69790-18010 |
— | ||
|
8281712400
|
8281712400
82817-12400 Protector, Wiring Harness, No.1 |
82817-12400 |
US $2.34 |
||
|
9011906577
|
9011906577
90119-06577 New Genuine Part |
90119-06577 |
US $0.87 |
||
|
9011906584
|
9011906584
90119-06584 New Genuine Part |
90119-06584 |
US $1.60 |
||
|
9011908824
|
9011908824
90119-08824 New Genuine Part |
90119-08824 |
US $2.18 |
||
|
9020108017
|
9020108017
90201-08017 Washer, Seal(For Cylinder Head Cover) |
90201-08017 |
US $4.54 |
||
|
9020408041
|
9020408041
90204-08041 New Genuine Part |
90204-08041 |
from US $1.31 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9166140820
|
9166140820
91661-40820 New Genuine Part |
91661-40820 |
from US $1.66 |
||
