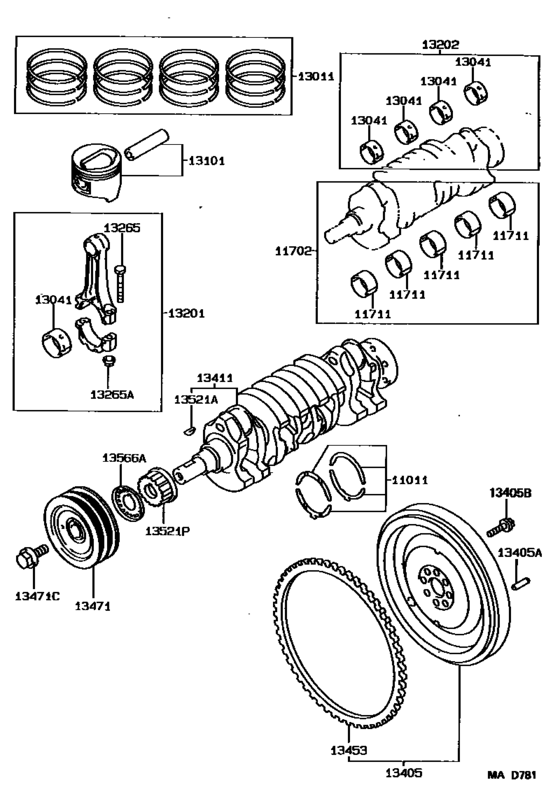

Crankshaft & Piston ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-11010 Washer Set, Crankshaft Thrust[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ |
11011-11010 |
US $25.51 |
||
|
11011
|
11011
11012-11010 Washer Set, Crankshaft Thrust[03.1990 - 12.1995] 5EFHE..EXY10 Ｏ／Ｓ ０．１２５ |
11012-11010 |
US $33.63 |
||
|
11702
|
11702
11704-11011
Bearing Set, Crankshaft
[03.1990 - 10.1992] 5EFHE..EXY10 Ｕ／Ｓ ０．２５ |
11704-11011 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-11012
Bearing Set, Crankshaft
[03.1990 - 10.1992] 5EFHE..EXY10 Ｕ／Ｓ ０．２５ |
11704-11012 |
— | ||
|
11702
|
11702
11704-11012
Bearing Set, Crankshaft
[10.1992 - 12.1995] 5EFHE..EXY10 Ｕ／Ｓ ０．２５ |
11704-11012 |
— | ||
|
11711
|
11711
11701-11011-01 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 1 |
11701-11011-01 |
US $42.08 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-01 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 1 |
11701-11012-01 |
US $37.84 |
||
|
11711
|
11711
11701-11011-02 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 2 |
11701-11011-02 |
US $42.08 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-02 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 2 |
11701-11012-02 |
from US $21.47 |
||
|
11711
|
11711
11701-11011-03 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 3 |
11701-11011-03 |
US $42.08 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-03 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 3 |
11701-11012-03 |
US $37.84 |
||
|
11711
|
11711
11701-11011-04 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 4 |
11701-11011-04 |
US $42.08 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-04 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 4 |
11701-11012-04 |
US $37.84 |
||
|
11711
|
11711
11701-11011-05 Bearing, Crankshaft[03.1990 - 10.1992] 5EFHE..EXY10 MARK 5 |
11701-11011-05 |
US $42.08 |
||
| replacement | |||||
|
11711
|
11711
11701-11012-05
Bearing, Crankshaft
[03.1990 - 10.1992] 5EFHE..EXY10 MARK 5 |
11701-11012-05 |
— | ||
|
11711
|
11711
11701-11012-01 Bearing, Crankshaft[10.1992 - 12.1995] 5EFHE..EXY10 MARK 1 |
11701-11012-01 |
US $37.84 |
||
|
11711
|
11711
11701-11012-02 Bearing, Crankshaft[10.1992 - 12.1995] 5EFHE..EXY10 MARK 2 |
11701-11012-02 |
from US $21.47 |
||
|
11711
|
11711
11701-11012-03 Bearing, Crankshaft[10.1992 - 12.1995] 5EFHE..EXY10 MARK 3 |
11701-11012-03 |
US $37.84 |
||
|
11711
|
11711
11701-11012-04 Bearing, Crankshaft[10.1992 - 12.1995] 5EFHE..EXY10 MARK 4 |
11701-11012-04 |
US $37.84 |
||
|
11711
|
11711
11701-11012-05
Bearing, Crankshaft
[10.1992 - 12.1995] 5EFHE..EXY10 MARK 5 |
11701-11012-05 |
— | ||
|
13011
|
13011
13011-11140 Ring Set, Piston[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ |
13011-11140 |
from US $108.48 |
||
|
13041
|
13041
13041-11040-01 Bearing, Connecting Rod[03.1990 - 12.1995] 5EFHE..EXY10 MARK 1 |
13041-11040-01 |
US $28.39 |
||
|
13041
|
13041
13041-11040-02 Bearing, Connecting Rod[03.1990 - 12.1995] 5EFHE..EXY10 MARK 2 |
13041-11040-02 |
US $28.39 |
||
|
13041
|
13041
13041-11040-03 Bearing, Connecting Rod[03.1990 - 12.1995] 5EFHE..EXY10 MARK 3 |
13041-11040-03 |
US $28.39 |
||
|
13101
|
13101
13101-11120-01
Piston Sub-Assy, W/pin
[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ,MARK 1 |
13101-11120-01 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-11121-01
Piston Sub-Assy, W/pin
[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ,MARK 1 |
13101-11121-01 |
— | ||
|
13101
|
13101
13101-11120-02
Piston Sub-Assy, W/pin
[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ,MARK 2 |
13101-11120-02 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-11121-02 Piston Sub-Assy, W/pin[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ,MARK 2 |
13101-11121-02 |
US $87.36 |
||
|
13101
|
13101
13101-11120-03
Piston Sub-Assy, W/pin
[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ,MARK 3 |
13101-11120-03 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-11121-03
Piston Sub-Assy, W/pin
[03.1990 - 12.1995] 5EFHE..EXY10 ＳＴＤ,MARK 3 |
13101-11121-03 |
— | ||
|
13201
|
13201
13201-19115 Rod Sub-Assy, Connecting[03.1990 - 04.1990] 5EFHE..EXY10 |
13201-19115 |
US $154.34 |
||
| replacement | |||||
|
13201
|
13201
13201-19117 Rod Sub-Assy, Connecting[03.1990 - 04.1990] 5EFHE..EXY10 |
13201-19117 |
US $155.79 |
||
|
13201
|
13201
13201-19116 Rod Sub-Assy, Connecting[04.1990 - 12.1995] 5EFHE..EXY10 |
13201-19116 |
US $152.88 |
||
| replacement | |||||
|
13201
|
13201
13201-19117 Rod Sub-Assy, Connecting[04.1990 - 12.1995] 5EFHE..EXY10 |
13201-19117 |
US $155.79 |
||
|
13202
|
13202
13204-11040 Bearing Set, Connecting Rod[03.1990 - 12.1995] 5EFHE..EXY10 Ｕ／Ｓ ０．２５ |
13204-11040 |
US $138.32 |
||
|
13265
|
13265
13265-10020
Bolt, Connecting Rod
[03.1990 - 04.1990] 5EFHE..EXY10 |
13265-10020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[03.1990 - 04.1990] 5EFHE..EXY10 |
13265-10022 |
from US $2.87 |
||
|
13265
|
13265
13265-10021 Bolt, Connecting Rod[04.1990 - 04.1995] 5EFHE..EXY10 |
13265-10021 |
US $6.99 |
||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[04.1990 - 04.1995] 5EFHE..EXY10 |
13265-10022 |
from US $2.87 |
||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[04.1995 - 12.1995] 5EFHE..EXY10 |
13265-10022 |
from US $2.87 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[03.1990 - 12.1995] 5EFHE..EXY10 |
90179-08014 |
from US $1.15 |
||
|
13405
|
13405
13405-11041 Flywheel Sub-Assy[03.1990 - 12.1995] 5EFHE..EXY10..MTM |
13405-11041 |
US $270.82 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[03.1990 - 12.1995] 5EFHE..EXY10..MTM 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.07 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[03.1990 - 12.1995] 5EFHE..EXY10..MTM |
90105-10138 |
US $2.88 |
||
|
13411
|
13411
13401-11070 Crankshaft[03.1990 - 12.1995] 5EFHE..EXY10 |
13401-11070 |
US $1,110.93 |
||
| replacement | |||||
|
13411
|
13411
13401-11071 Crankshaft[03.1990 - 12.1995] 5EFHE..EXY10 |
13401-11071 |
US $1,116.75 |
||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[03.1990 - 12.1995] 5EFHE..EXY10..MTM |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13407-11030
Pulley, Crankshaft
[03.1990 - 12.1995] 5EFHE..EXY10 |
13407-11030 |
— | ||
|
13471C
|
13471C
90109-12050
Bolt(For Crankshaft Pulley Set)
[03.1990 - 12.1995] 5EFHE..EXY10 |
90109-12050 |
— | ||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[02.1992 - 12.1995] 5EFHE..EXY10 |
90280-05005 |
from US $1.76 |
||
|
13521A
|
13521A
95161-20519 Key, Crankshaft(For Crankshaft Pulley Set)[03.1990 - 02.1992] 5EFHE..EXY10 |
95161-20519 |
from US $1.17 |
||
|
13521P
|
13521P
13521-11020 Pulley, Crankshaft Timing[03.1990 - 12.1995] 5EFHE..EXY10 |
13521-11020 |
from US $30.67 |
||
|
13566A
|
13566A
13566-11020 Guide, Timing Belt[03.1990 - 12.1995] 5EFHE..EXY10 |
13566-11020 |
from US $4.72 |
||
