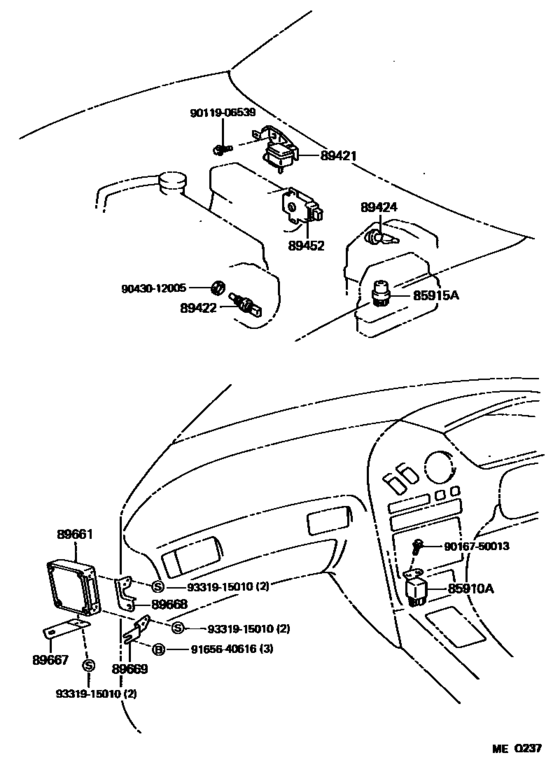

Electronic Fuel Injection System ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-18010
Relay Assy, Circuit Opening (For Efi)
[03.1990 - 12.1995] EXY10 |
85910-18010 |
— | ||
|
85915A
|
85915A
90987-02004 Relay Assy, Starter[03.1990 - 06.1992] EXY10 |
90987-02004 |
from US $28.70 |
||
| replacement | |||||
|
85915A
|
85915A
909870200483 [03.1990 - 06.1992] EXY10 |
909870200483 |
US $53.75 |
||
|
85915A
|
85915A
90987-02009 Relay Assy[06.1992 - 12.1995] EXY10 |
90987-02009 |
from US $33.87 |
||
|
89421
|
89421
89420-18010
Sensor Assy, Vacuum (For E.f.i.)
[03.1990 - 12.1995] EXY10 |
89420-18010 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[03.1990 - 12.1995] EXY10 |
89422-20010 |
from US $36.78 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[03.1990 - 12.1995] EXY10 |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-12060 Sensor, Throttle Position (For E.f.i.)[06.1992 - 12.1995] EXY10 |
89452-12060 |
US $111.47 |
||
|
89452
|
89452
89452-14020
Sensor, Throttle Position (For E.f.i.)
[03.1990 - 06.1992] EXY10 |
89452-14020 |
— | ||
|
89661
|
89661
89661-18010 Computer, Engine Control[03.1990 - 05.1991] EXY10 |
89661-18010 |
US $1,601.60 |
||
| replacement | |||||
|
89661
|
89661
89661-18020 Computer, Engine Control[03.1990 - 05.1991] EXY10 |
89661-18020 |
US $1,587.04 |
||
|
89661
|
89661
89661-18020 Computer, Engine Control[05.1991 - 06.1992] EXY10 |
89661-18020 |
US $1,587.04 |
||
|
89661
|
89661
89661-18030 Computer, Engine ControlENGINE CONTROL [06.1992 - 12.1995] EXY10 |
89661-18030 |
US $1,375.92 |
||
|
89667
|
89667
89667-18010 Bracket, Engine Control ComputerENGINE CONTROL COMPUTER [03.1990 - 12.1995] EXY10 |
89667-18010 |
US $6.99 |
||
|
89668
|
89668
89668-18011 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [03.1990 - 12.1995] EXY10 |
89668-18011 |
US $12.52 |
||
|
89669
|
89669
89669-18010 Bracket, Engine Control Computer, No.3ENGINE CONTROL COMPUTER, NO.3 [03.1990 - 12.1995] EXY10 |
89669-18010 |
US $5.24 |
||
|
9011906539
|
9011906539
90119-06539 New Genuine Part |
90119-06539 |
US $1.46 |
||
|
9016750013
|
9016750013
90167-50013
New Genuine Part
|
90167-50013 |
— | ||
| replacement | |||||
|
9016750013
|
9016750013
93568-55014 Screw |
93568-55014 |
from US $0.57 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
