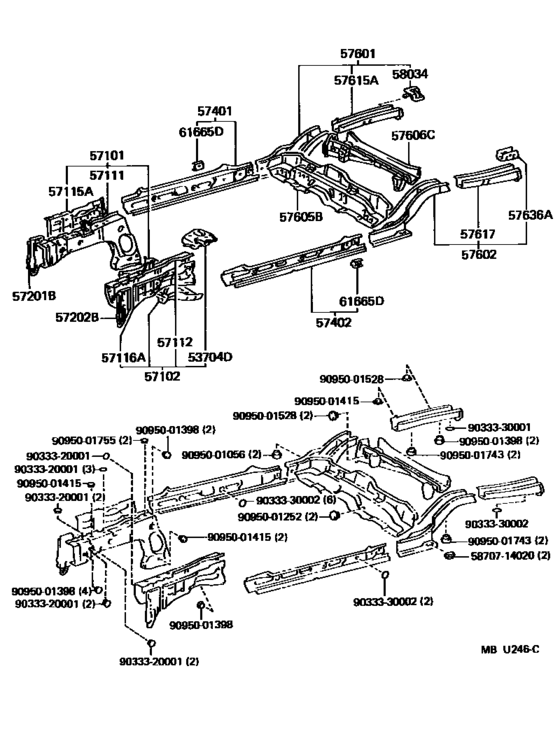

Floor Side Member ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53704D
|
53704D
53704-10030 Support Sub-Assy, Battery, Lh[03.1990 - 12.1995] EXY10 |
53704-10030 |
US $78.62 |
||
|
57101
|
57101
57101-18010 Member Sub-Assy, Front Side, Rh[03.1990 - 12.1995] EXY10 |
57101-18010 |
US $380.02 |
||
|
57102
|
57102
57102-18010 Member Sub-Assy, Front Side, Lh[03.1990 - 12.1995] EXY10 |
57102-18010 |
US $380.02 |
||
|
57111
|
57111
57111-18010 Member, Front Side, Rh[03.1990 - 12.1995] EXY10 |
57111-18010 |
US $160.16 |
||
|
57112
|
57112
57112-18010 Member, Front Side, Lh[03.1990 - 12.1995] EXY10 |
57112-18010 |
US $160.16 |
||
|
57115A
|
57115A
57115-10050 Plate, Front Side Member, Outer Rh[03.1990 - 12.1995] EXY10 |
57115-10050 |
US $53.14 |
||
|
57116A
|
57116A
57116-10050 Plate, Front Side Member, Outer Lh[03.1990 - 12.1995] EXY10 |
57116-10050 |
US $53.14 |
||
|
57201B
|
57201B
57201-18010 Extension Sub-Assy, Front Side Member, Rh[03.1990 - 12.1995] EXY10 |
57201-18010 |
US $66.10 |
||
|
57202B
|
57202B
57202-18010 Extension Sub-Assy, Front Side Member, Lh[03.1990 - 12.1995] EXY10 |
57202-18010 |
US $72.07 |
||
|
57401
|
57401
57401-18010 Member Sub-Assy, Main Floor Side, Rh[03.1990 - 12.1995] EXY10 |
57401-18010 |
US $198.02 |
||
|
57402
|
57402
57402-18010 Member Sub-Assy, Main Floor Side, Lh[03.1990 - 12.1995] EXY10 |
57402-18010 |
US $198.02 |
||
|
57601
|
57601
57601-18010 Member Sub-Assy, Rear Floor Side, Rh[03.1990 - 12.1995] EXY10 |
57601-18010 |
US $304.30 |
||
|
57602
|
57602
57602-18010 Member Sub-Assy, Rear Floor Side, Lh[03.1990 - 12.1995] EXY10 |
57602-18010 |
US $364 |
||
|
57605B
|
57605B
57605-18010 Member Sub-Assy, Rear Floor Cross, No.1[03.1990 - 12.1995] EXY10 |
57605-18010 |
US $253.34 |
||
|
57606C
|
57606C
57606-18010 Member Sub-Assy, Rear Floor Cross, No.2[03.1990 - 12.1995] EXY10 |
57606-18010 |
US $215.49 |
||
|
57615A
|
57615A
57615-10050 Member, Rear Floor Side, Rear Rh[03.1990 - 12.1995] EXY10 |
57615-10050 |
US $70.18 |
||
|
57617
|
57617
57616-10030 Member, Rear Floor Side, Rear Lh[03.1990 - 12.1995] EXY10 |
57616-10030 |
US $58.24 |
||
|
57636A
|
57636A
57636-10010 Reinforcement, Rear Floor Side Member, Rear Lh[03.1990 - 12.1995] EXY10 |
57636-10010 |
US $50.38 |
||
|
58034
|
58034
58034-10010 Bracket Sub-Assy, Exhaust Pipe Support, Rear[03.1990 - 12.1995] EXY10 |
58034-10010 |
US $19.22 |
||
|
61665D
|
61665D
61665-22010 Plate, Safety Belt Anchorage[03.1990 - 12.1995] EXY10 |
61665-22010 |
US $4.95 |
||
|
5870714020
|
5870714020
58707-14020
Plug Set, Hole
|
58707-14020 |
— | ||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033330001
|
9033330001
90333-30001
New Genuine Part
|
90333-30001 |
— | ||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.12 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001252
|
9095001252
90950-01252 New Genuine Part |
90950-01252 |
US $1.89 |
||
|
9095001398
|
9095001398
90950-01398 CUSHION |
90950-01398 |
from US $1.01 |
||
|
9095001415
|
9095001415
90950-01415 New Genuine Part |
90950-01415 |
US $1.40 |
||
|
9095001528
|
9095001528
90950-01528 New Genuine Part |
90950-01528 |
US $3.93 |
||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9095001755
|
9095001755
90950-01755 New Genuine Part |
90950-01755 |
US $2.48 |
||
