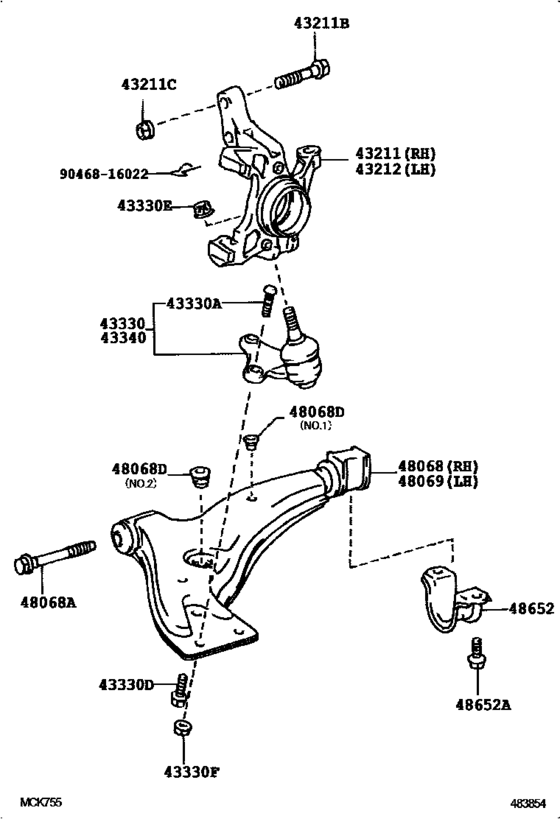

Front Axle Arm & Steering Knuckle ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43211
|
43211
43211-10060 Knuckle, Steering, Rh[03.1990 - 01.1992] EXY10 ｱﾘ(*66) |
43211-10060 |
US $221.31 |
||
|
43211
|
43211
43211-10061
Knuckle, Steering, Rh
[01.1992 - 06.1995] EXY10 ｱﾘ(*66) |
43211-10061 |
— | ||
| replacements | |||||
|
43211
|
43211
43211-59045
Knuckle, Steering, Rh
[01.1992 - 06.1995] EXY10 ｱﾘ(*66) |
43211-59045 |
— | ||
|
43211
|
43211
90389-16021 New Genuine Part[01.1992 - 06.1995] EXY10 ｱﾘ(*66) |
90389-16021 |
US $1.89 |
||
|
43211
|
43211
43211-10062
Knuckle, Steering, Rh
[06.1995 - 12.1995] EXY10 ｱﾘ(*66) |
43211-10062 |
— | ||
| replacement | |||||
|
43211
|
43211
43211-59045
Knuckle, Steering, Rh
[06.1995 - 12.1995] EXY10 ｱﾘ(*66) |
43211-59045 |
— | ||
|
43211
|
43211
43211-10070 Knuckle, Steering, Rh[03.1990 - 01.1992] EXY10 |
43211-10070 |
US $221.31 |
||
|
43211
|
43211
43211-10071 Knuckle, Steering, Rh[01.1992 - 12.1995] EXY10 |
43211-10071 |
US $215.49 |
||
| replacement | |||||
|
43211
|
43211
43211-59045
Knuckle, Steering, Rh
[01.1992 - 12.1995] EXY10 |
43211-59045 |
— | ||
|
43211B
|
43211B
90105-15001 Bolt (For Rear Axle Carrier)[04.1990 - 12.1995] EXY10 |
90105-15001 |
US $6.56 |
||
|
43211B
|
43211B
90105-15002 Bolt (For Absorber Setting)[03.1990 - 03.1990] EXY10 |
90105-15002 |
US $6.84 |
||
|
43211C
|
43211C
90179-15001 Nut (For Rear Axle Carrier)[04.1990 - 12.1995] EXY10 |
90179-15001 |
from US $3.24 |
||
|
43211C
|
43211C
90179-15003 Nut (For Absorber Setting)[03.1990 - 03.1990] EXY10 |
90179-15003 |
US $3.35 |
||
|
43212
|
43212
43212-10040 Knuckle, Steering, Lh[03.1990 - 01.1992] EXY10 ｱﾘ(*66) |
43212-10040 |
US $221.31 |
||
|
43212
|
43212
43212-10041
Knuckle, Steering, Lh
[01.1992 - 06.1995] EXY10 ｱﾘ(*66) |
43212-10041 |
— | ||
| replacements | |||||
|
43212
|
43212
43212-59045
Knuckle, Steering, Lh
[01.1992 - 06.1995] EXY10 ｱﾘ(*66) |
43212-59045 |
— | ||
|
43212
|
43212
90389-16021 New Genuine Part[01.1992 - 06.1995] EXY10 ｱﾘ(*66) |
90389-16021 |
US $1.89 |
||
|
43212
|
43212
43212-10042
Knuckle, Steering, Lh
[06.1995 - 12.1995] EXY10 ｱﾘ(*66) |
43212-10042 |
— | ||
| replacement | |||||
|
43212
|
43212
43212-59045
Knuckle, Steering, Lh
[06.1995 - 12.1995] EXY10 ｱﾘ(*66) |
43212-59045 |
— | ||
|
43212
|
43212
43212-10050 Knuckle, Steering, Lh[03.1990 - 01.1992] EXY10 |
43212-10050 |
US $221.31 |
||
|
43212
|
43212
43212-10051 Knuckle, Steering, Lh[01.1992 - 12.1995] EXY10 |
43212-10051 |
US $215.49 |
||
| replacement | |||||
|
43212
|
43212
43212-59045
Knuckle, Steering, Lh
[01.1992 - 12.1995] EXY10 |
43212-59045 |
— | ||
|
43330
|
43330
43330-19085 Joint Assy, Lower Ball, Front[03.1990 - 12.1995] EXY10 |
43330-19085 |
US $72.96 |
||
|
43330A
|
43330A
90114-10036
Serration Bolt(For Front Lower Ball Joint)
[03.1990 - 12.1995] EXY10 |
90114-10036 |
— | ||
| replacement | |||||
|
43330A
|
43330A
90114-10032 Serration Bolt(For Front Lower Ball Joint)[03.1990 - 12.1995] EXY10 |
90114-10032 |
US $0.70 |
||
|
43330D
|
43330D
90119-10407 Bolt (For Front Lower Ball Joint)[03.1990 - 12.1995] EXY10 |
90119-10407 |
US $3.20 |
||
|
43330E
|
43330E
90171-12007 Nut, Castle (For Front Lower Ball Joint Setting)[03.1990 - 12.1995] EXY10 |
90171-12007 |
US $1.76 |
||
|
43330F
|
43330F
90179-10088 Nut[03.1990 - 12.1995] EXY10 |
90179-10088 |
from US $1.07 |
||
|
43340
|
43340
43340-19025 Joint Assy, Lower Ball, Front[03.1990 - 12.1995] EXY10 |
43340-19025 |
US $72.96 |
||
|
48068
|
48068
48068-10090
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[03.1990 - 08.1990] EXY10 |
48068-10090 |
— | ||
| replacement | |||||
|
48068
|
48068
48068-16060
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[03.1990 - 08.1990] EXY10 |
48068-16060 |
— | ||
|
48068
|
48068
48068-16060
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1990 - 12.1995] EXY10 |
48068-16060 |
— | ||
|
48068A
|
48068A
90119-12099 Bolt(For Front Suspension Lower Arm)[03.1990 - 12.1995] EXY10 |
90119-12099 |
US $6.56 |
||
|
48068D
|
48068D
90950-01414 Plug, Hole(For Front Suspension Lower Arm)[03.1990 - 12.1995] EXY10 ＮＯ．１ |
90950-01414 |
US $2.80 |
||
|
48068D
|
48068D
90950-01478 Plug, Hole(For Front Suspension Lower Arm)[03.1990 - 12.1995] EXY10 ＮＯ．２ |
90950-01478 |
US $3.04 |
||
|
48069
|
48069
48069-10070
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[03.1990 - 08.1990] EXY10 |
48069-10070 |
— | ||
| replacement | |||||
|
48069
|
48069
48069-16060
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[03.1990 - 08.1990] EXY10 |
48069-16060 |
— | ||
|
48069
|
48069
48069-16060
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1990 - 12.1995] EXY10 |
48069-16060 |
— | ||
|
48652
|
48652
48652-10020 Bracket, Front Lower Arm[03.1990 - 12.1995] EXY10 |
48652-10020 |
US $16.26 |
||
|
48652A
|
48652A
90105-12061
Bolt(For Front Lower Arm Bracket)
[03.1990 - 12.1995] EXY10 |
90105-12061 |
— | ||
|
9046816022
|
9046816022
90468-16022 CLIP |
90468-16022 |
US $1.44 |
||
