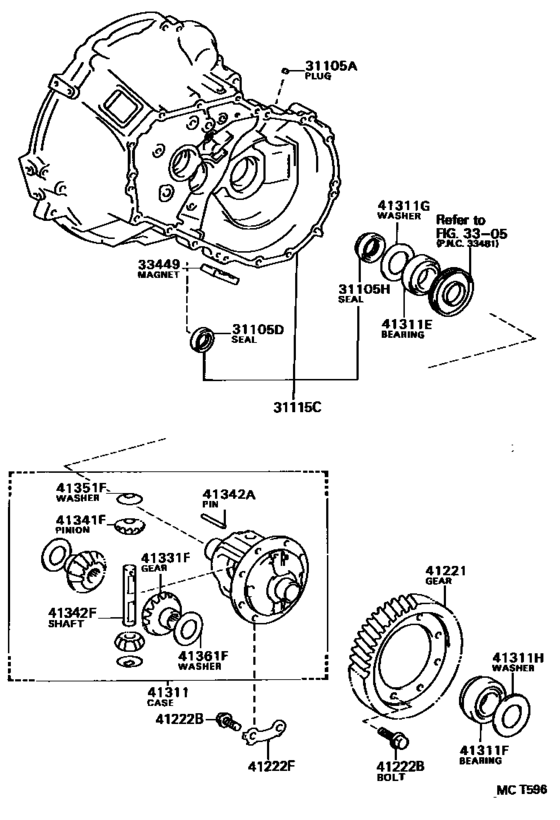

Front Axle Housing & Differential ([02.1992 - ] C155,ｱﾘ(ﾘﾐﾃﾂﾄﾞ ｽﾘﾂﾌﾟ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ) (9202- )MTM) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105A
|
31105A
90331-08002 Plug, Tight(For Front Transaxle Case)[03.1990 - 12.1995] EXY10..MTM |
90331-08002 |
US $1.46 |
||
|
31105D
|
31105D
90311-25016 Seal, Oil, No.1(For Front Transaxle Case)[03.1990 - 12.1995] EXY10..MTM |
90311-25016 |
from US $3.20 |
||
|
31105H
|
31105H
90311-34007 Seal, Oil, No.2(For Transaxle Case)[03.1990 - 08.1991] EXY10..MTM NOK-BC2078E |
90311-34007 |
US $3.93 |
||
| replacement | |||||
|
31105H
|
31105H
90311-34016 Seal, Oil, No.2(For Transaxle Case)[03.1990 - 08.1991] EXY10..MTM NOK-BC2078E |
90311-34016 |
from US $4.32 |
||
|
31105H
|
31105H
90311-34016 Seal, Oil, No.2(For Transaxle Case)[03.1990 - 08.1991] EXY10..MTM NOK-BH2078F |
90311-34016 |
from US $4.32 |
||
|
31105H
|
31105H
90311-50015
Seal, Oil, No.2(For Transaxle Case)
[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD) |
90311-50015 |
— | ||
|
31115C
|
31115C
31105-10021 Case, Front Transaxle(Mtm)[12.1992 - 05.1994] EXY10..MTM |
31105-10021 |
US $432.43 |
||
| replacements | |||||
|
31115C
|
31115C
31105-16090
Case, Front Transaxle(Mtm)
[12.1992 - 05.1994] EXY10..MTM |
31105-16090 |
— | ||
|
31115C
|
31115C
33125-12011 Receiver, Manual Transaxle Case[12.1992 - 05.1994] EXY10..MTM |
33125-12011 |
US $2.18 |
||
|
31115C
|
31115C
31105-16090
Case, Front Transaxle(Mtm)
[05.1994 - 12.1995] EXY10..MTM ｱﾘ(LSD) |
31105-16090 |
— | ||
|
31115C
|
31115C
31115-12060 Case Sub-Assy, Transaxle(Mtm)[03.1990 - 07.1991] EXY10..MTM |
31115-12060 |
US $358.18 |
||
| replacements | |||||
|
31115C
|
31115C
31115-16051 Case, Front Transaxle(Mtm)[03.1990 - 07.1991] EXY10..MTM |
31115-16051 |
US $387.30 |
||
|
31115C
|
31115C
33125-12011 Receiver, Manual Transaxle Case[03.1990 - 07.1991] EXY10..MTM |
33125-12011 |
US $2.18 |
||
|
31115C
|
31115C
31115-12061
Case, Front Transaxle(Mtm)
[07.1991 - 10.1992] EXY10..MTM |
31115-12061 |
— | ||
|
31115C
|
31115C
31115-16050 Case, Front Transaxle(Mtm)[05.1994 - 12.1995] EXY10..MTM |
31115-16050 |
US $384.38 |
||
| replacement | |||||
|
31115C
|
31115C
31115-16051 Case, Front Transaxle(Mtm)[05.1994 - 12.1995] EXY10..MTM |
31115-16051 |
US $387.30 |
||
|
33449
|
33449
33449-12010 Magnet, Transmission[03.1990 - 05.1990] EXY10..MTM |
33449-12010 |
US $13.69 |
||
| replacement | |||||
|
33449
|
33449
33449-12020 Magnet, Transmission[03.1990 - 05.1990] EXY10..MTM |
33449-12020 |
US $8.91 |
||
|
33449
|
33449
33449-12020 Magnet, Transmission[05.1990 - 12.1995] EXY10..MTM |
33449-12020 |
US $8.91 |
||
|
41221
|
41221
41221-10231 Gear, Front Differential Ring[03.1990 - 12.1995] EXY10..MTM |
41221-10231 |
US $168.90 |
||
| replacement | |||||
|
41221
|
41221
41221-52330 Gear, Front Differential Ring[03.1990 - 12.1995] EXY10..MTM |
41221-52330 |
US $165.98 |
||
|
41221
|
41221
41221-12340
Gear, Front Differential Ring
[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41221-12340 |
— | ||
| replacements | |||||
|
41221
|
41221
41221-52271 Gear, Front Differential Ring[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41221-52271 |
US $202.38 |
||
|
41221
|
41221
90105-11040 Bolt (For Rear Differential Ring Gear Set)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90105-11040 |
US $2.08 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[12.1992 - 01.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90101-11353 |
from US $0.90 |
||
|
41222B
|
41222B
90105-11040 Bolt (For Rear Differential Ring Gear Set)[01.1995 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90105-11040 |
US $2.08 |
||
|
41222B
|
41222B
90105-12100 Bolt (For Front Differential Ring Gear Set)[03.1990 - 12.1995] EXY10..MTM |
90105-12100 |
US $3.06 |
||
|
41222F
|
41222F
41222-12040 Plate, Rear Differential Ring Gear Set Bolt Lock[12.1992 - 01.1995] EXY10..MTM |
41222-12040 |
US $2.48 |
||
|
41311
|
41311
41301-10060 Case, Front Differential[03.1990 - 12.1995] EXY10..MTM |
41301-10060 |
US $464.46 |
||
| replacement | |||||
|
41311
|
41311
41301-10061 Case, Front Differential[03.1990 - 12.1995] EXY10..MTM |
41301-10061 |
US $461.55 |
||
|
41311
|
41311
41301-10070 Case, Front Differential[12.1992 - 12.1994] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41301-10070 |
US $559.10 |
||
| replacements | |||||
|
41311
|
41311
41301-10071 Case, Front Differential[12.1992 - 12.1994] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41301-10071 |
US $560.56 |
||
|
41311
|
41311
90105-11040 Bolt (For Rear Differential Ring Gear Set)[12.1992 - 12.1994] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90105-11040 |
US $2.08 |
||
|
41311
|
41311
41301-10071 Case, Front Differential[12.1994 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41301-10071 |
US $560.56 |
||
|
41311E
|
41311E
90366-38004 Bearing(For Counter Driven Gear)[03.1990 - 12.1995] EXY10..MTM |
90366-38004 |
from US $33.33 |
||
|
41311E
|
41311E
90366-55045 Bearing(For Ring Gear Mounting Case)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90366-55045 |
US $18.70 |
||
|
41311F
|
41311F
90368-38010 Bearing(For Rear Differential Case)[03.1990 - 12.1995] EXY10 |
90368-38010 |
from US $25.38 |
||
|
41311G
|
41311G
90201-41012 Washer, Plate (For Front Differential Case Front)[08.1994 - 12.1995] EXY10..MTM 厚さ＝２．１０ |
90201-41012 |
US $5.39 |
||
|
41311G
|
41311G
90201-41045 Washer, Plate (For Front Differential Case Front)[03.1990 - 08.1994] EXY10..MTM 厚さ＝２．１０ |
90201-41045 |
US $5.39 |
||
| replacement | |||||
|
41311G
|
41311G
90201-41012 Washer, Plate (For Front Differential Case Front)[03.1990 - 08.1994] EXY10..MTM 厚さ＝２．１０ |
90201-41012 |
US $5.39 |
||
|
41311G
|
41311G
90201-58001 Washer, Plate (For Front Differential Case Front)[12.1992 - 12.1995] EXY10..MTM 厚さ＝１．９０,ｱﾘ(LSD) |
90201-58001 |
US $3.64 |
||
|
41311H
|
41311H
90201-41046 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．１０，マーク Ａ |
90201-41046 |
US $5.39 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41014 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．１０，マーク Ａ |
90564-41014 |
US $3.67 |
||
|
41311H
|
41311H
90201-41047 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．１５，マーク Ｂ |
90201-41047 |
US $5.39 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41015 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．１５，マーク Ｂ |
90564-41015 |
US $3.67 |
||
|
41311H
|
41311H
90201-41048 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．２０，マーク Ｃ |
90201-41048 |
US $5.39 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41016 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．２０，マーク Ｃ |
90564-41016 |
US $3.67 |
||
|
41311H
|
41311H
90201-41049
Washer, Plate (For Front Differential Case Rear)
[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．２５，マーク Ｄ |
90201-41049 |
— | ||
| replacement | |||||
|
41311H
|
41311H
90564-41017 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．２５，マーク Ｄ |
90564-41017 |
US $3.67 |
||
|
41311H
|
41311H
90201-41050
Washer, Plate (For Front Differential Case Rear)
[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．３０，マーク Ｅ |
90201-41050 |
— | ||
| replacement | |||||
|
41311H
|
41311H
90564-41018 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．３０，マーク Ｅ |
90564-41018 |
US $4.89 |
||
|
41311H
|
41311H
90201-41051
Washer, Plate (For Front Differential Case Rear)
[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．３５，マーク Ｆ |
90201-41051 |
— | ||
| replacement | |||||
|
41311H
|
41311H
90564-41019 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．３５，マーク Ｆ |
90564-41019 |
US $5.12 |
||
|
41311H
|
41311H
90201-41052 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．４０，マーク Ｇ |
90201-41052 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41020 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．４０，マーク Ｇ |
90564-41020 |
US $4.89 |
||
|
41311H
|
41311H
90201-41053 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．４５，マーク Ｈ |
90201-41053 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41021 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．４５，マーク Ｈ |
90564-41021 |
US $4.89 |
||
|
41311H
|
41311H
90201-41054 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．５０，マーク Ｊ |
90201-41054 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41022 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．５０，マーク Ｊ |
90564-41022 |
US $4.89 |
||
|
41311H
|
41311H
90201-41055 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．５５，マーク Ｋ |
90201-41055 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41023 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．５５，マーク Ｋ |
90564-41023 |
US $4.89 |
||
|
41311H
|
41311H
90201-41056 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．６０，マーク Ｌ |
90201-41056 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41024 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．６０，マーク Ｌ |
90564-41024 |
US $4.89 |
||
|
41311H
|
41311H
90201-41057 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．６５，マーク Ｍ |
90201-41057 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41025 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．６５，マーク Ｍ |
90564-41025 |
US $4.89 |
||
|
41311H
|
41311H
90201-41058 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．７０，マーク Ｎ |
90201-41058 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41026 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．７０，マーク Ｎ |
90564-41026 |
US $4.89 |
||
|
41311H
|
41311H
90201-41059 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．７５，マーク Ｐ |
90201-41059 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41027 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．７５，マーク Ｐ |
90564-41027 |
US $4.89 |
||
|
41311H
|
41311H
90201-41060 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．８０，マーク Ｑ |
90201-41060 |
US $6.99 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41028 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．８０，マーク Ｑ |
90564-41028 |
US $4.89 |
||
|
41311H
|
41311H
90201-41061 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．８５，マーク Ｒ |
90201-41061 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41029 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．８５，マーク Ｒ |
90564-41029 |
US $5.59 |
||
|
41311H
|
41311H
90201-41062 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．９０，マーク Ｓ |
90201-41062 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41030 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．９０，マーク Ｓ |
90564-41030 |
US $5.59 |
||
|
41311H
|
41311H
90201-41063 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．９５，マーク Ｔ |
90201-41063 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41031 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝２．９５，マーク Ｔ |
90564-41031 |
US $5.59 |
||
|
41311H
|
41311H
90201-41064 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝３．００，マーク Ｕ |
90201-41064 |
US $8.15 |
||
| replacement | |||||
|
41311H
|
41311H
90564-41032 Washer, Plate (For Front Differential Case Rear)[03.1990 - 12.1995] EXY10..MTM 厚さ＝３．００，マーク Ｕ |
90564-41032 |
US $5.59 |
||
|
41331F
|
41331F
41331-10042
Gear, Rear Differential Side
[03.1990 - 12.1995] EXY10..MTM |
41331-10042 |
— | ||
|
41331F
|
41331F
41331-12011 Gear, Rear Differential Side[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41331-12011 |
US $38.26 |
||
|
41341F
|
41341F
41341-10030
Pinion, Rear Differential
[03.1990 - 12.1995] EXY10..MTM |
41341-10030 |
— | ||
|
41341F
|
41341F
41341-12030 Pinion, Rear Differential[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41341-12030 |
US $24.98 |
||
|
41342A
|
41342A
90250-04053 Pin, Straight (For Front Differential Pinion Shaft)[03.1990 - 12.1995] EXY10..MTM |
90250-04053 |
US $1.14 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90250-06058 |
from US $1.99 |
||
|
41342F
|
41342F
41342-10040 Shaft, Front Differential Pinion, No.1[03.1990 - 04.1992] EXY10..MTM |
41342-10040 |
US $15.87 |
||
| replacement | |||||
|
41342F
|
41342F
41342-10041 Shaft, Front Differential Pinion, No.1[03.1990 - 04.1992] EXY10..MTM |
41342-10041 |
US $9.76 |
||
|
41342F
|
41342F
41342-10041 Shaft, Front Differential Pinion, No.1[04.1992 - 12.1995] EXY10..MTM |
41342-10041 |
US $9.76 |
||
|
41342F
|
41342F
41342-12140 Shaft, Front Differential Pinion, No.1[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41342-12140 |
US $15.24 |
||
|
41351F
|
41351F
41351-10030 Washer, Rear Differential Pinion Thrust[03.1990 - 12.1995] EXY10..MTM |
41351-10030 |
US $1.46 |
||
|
41351F
|
41351F
41351-12020 Washer, Rear Differential Pinion Thrust[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
41351-12020 |
US $1.69 |
||
|
41361F
|
41361F
41361-10070 Washer, Rear Differential Side Gear Thrust, No.1[03.1990 - 12.1995] EXY10..MTM 厚さ＝１．５０ |
41361-10070 |
US $2.62 |
||
|
41361F
|
41361F
41361-10080 Washer, Rear Differential Side Gear Thrust, No.1[03.1990 - 12.1995] EXY10..MTM 厚さ＝１．５５ |
41361-10080 |
US $2.62 |
||
|
41361F
|
41361F
41361-10090 Washer, Rear Differential Side Gear Thrust, No.1[03.1990 - 12.1995] EXY10..MTM 厚さ＝１．６０ |
41361-10090 |
US $2.62 |
||
|
41361F
|
41361F
41361-10100 Washer, Rear Differential Side Gear Thrust, No.1[03.1990 - 12.1995] EXY10..MTM 厚さ＝１．６５ |
41361-10100 |
US $2.62 |
||
|
41361F
|
41361F
41361-10110 Washer, Rear Differential Side Gear Thrust, No.1[03.1990 - 12.1995] EXY10..MTM 厚さ＝１．７０ |
41361-10110 |
US $2.62 |
||
|
41361F
|
41361F
41361-10120 Washer, Rear Differential Side Gear Thrust, No.1[03.1990 - 12.1995] EXY10..MTM 厚さ＝１．７５ |
41361-10120 |
US $2.62 |
||
|
41361F
|
41361F
41361-22020 Washer, Rear Differential Side Gear Thrust, No.1[12.1992 - 12.1995] EXY10..MTM 厚さ＝１．００，マーク ０２,ｱﾘ(LSD) |
41361-22020 |
US $2.80 |
||
|
41361F
|
41361F
41361-22030 Washer, Rear Differential Side Gear Thrust, No.1[12.1992 - 12.1995] EXY10..MTM 厚さ＝１．１０，マーク ０３,ｱﾘ(LSD) |
41361-22030 |
US $3.14 |
||
|
41361F
|
41361F
41361-22040 Washer, Rear Differential Side Gear Thrust, No.1[12.1992 - 12.1995] EXY10..MTM 厚さ＝１．２０，マーク ０４,ｱﾘ(LSD) |
41361-22040 |
from US $3.52 |
||
|
41361F
|
41361F
41361-22140 Washer, Rear Differential Side Gear Thrust, No.1[12.1992 - 12.1995] EXY10..MTM 厚さ＝０．９５，マーク １４,ｱﾘ(LSD) |
41361-22140 |
US $2.53 |
||
|
41361F
|
41361F
41361-22150 Washer, Rear Differential Side Gear Thrust, No.1[12.1992 - 12.1995] EXY10..MTM 厚さ＝１．０５，マーク １５,ｱﾘ(LSD) |
41361-22150 |
US $2.62 |
||
|
41361F
|
41361F
41361-22160 Washer, Rear Differential Side Gear Thrust, No.1[12.1992 - 12.1995] EXY10..MTM 厚さ＝１．１５，マーク １６,ｱﾘ(LSD) |
41361-22160 |
US $2.62 |
||
