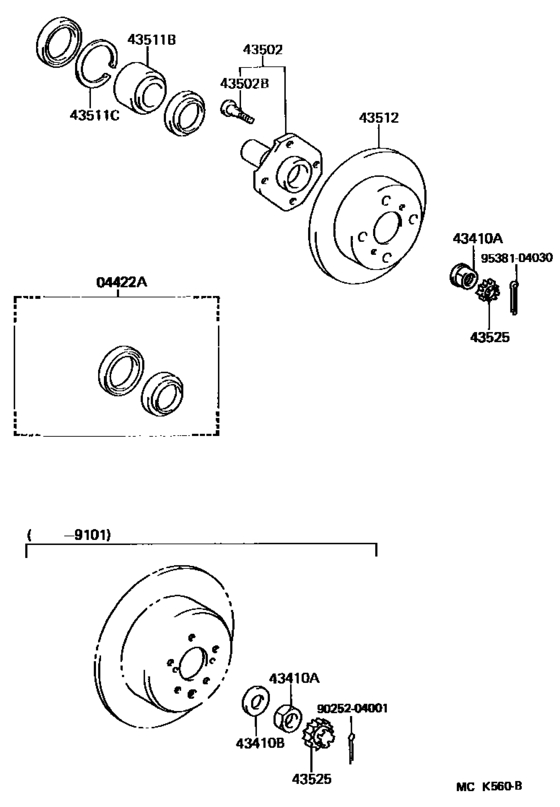

Front Axle Hub ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04422A
|
04422A
04422-10030 Seal Kit, Front Axle Oil[03.1990 - 12.1995] EXY10 |
04422-10030 |
US $15.96 |
||
|
04422A
|
04422A
04422-10040 Seal Kit, Front Axle Oil[03.1990 - 12.1995] EXY10 ｱﾘ(*66) |
04422-10040 |
US $18.54 |
||
|
43410A
|
43410A
90170-19001 Nut (For Rear Axle Shaft)[03.1990 - 01.1991] EXY10 |
90170-19001 |
US $5.12 |
||
|
43410A
|
43410A
90179-22020 Nut (For Rear Axle Shaft)[01.1991 - 12.1995] EXY10 |
90179-22020 |
from US $2.34 |
||
|
43410B
|
43410B
90201-20012 Washer, Plate (For Rear Axle Shaft)[03.1990 - 01.1991] EXY10 |
90201-20012 |
US $5.44 |
||
|
43502
|
43502
43502-10030
Hub Sub-Assy, Front Axle
[03.1990 - 01.1992] EXY10 |
43502-10030 |
— | ||
|
43502
|
43502
43502-10040 Hub Sub-Assy, Front Axle[01.1992 - 12.1995] EXY10 |
43502-10040 |
US $137.64 |
||
|
43502B
|
43502B
90942-02047 Bolt, Hub[03.1990 - 01.1992] EXY10 |
90942-02047 |
from US $3.68 |
||
|
43502B
|
43502B
90942-02049 Bolt, Hub[01.1992 - 12.1995] EXY10 |
90942-02049 |
US $3.84 |
||
| replacement | |||||
|
43502B
|
43502B
90942-02082 Bolt, Hub[01.1992 - 12.1995] EXY10 |
90942-02082 |
from US $2.46 |
||
|
43511B
|
43511B
90369-35029 Bearing (For Front Axle Hub)[03.1990 - 12.1995] EXY10 |
90369-35029 |
US $73.42 |
||
|
43511C
|
43511C
90521-75003 Ring, Hole Snap (For Front Axle Hub)[03.1990 - 12.1995] EXY10 厚さ＝２．５０ |
90521-75003 |
US $3.84 |
||
|
43512
|
43512
43512-10110
Disc, Front
[03.1990 - 01.1992] EXY10 |
43512-10110 |
— | ||
|
43512
|
43512
43512-10170
Disc, Front
[01.1992 - 12.1995] EXY10 |
43512-10170 |
— | ||
| replacement | |||||
|
43512
|
43512
43512-16130
Disc, Front
[01.1992 - 12.1995] EXY10 |
43512-16130 |
— | ||
|
43525
|
43525
43525-16010 Cap, Rear Wheel Adjusting Lock[03.1990 - 01.1991] EXY10 |
43525-16010 |
from US $1.93 |
||
|
43525
|
43525
43525-20030 Cap, Front Wheel Adjusting Lock[01.1991 - 12.1995] EXY10 |
43525-20030 |
from US $2.91 |
||
|
9025204001
|
9025204001
90252-04001 CLIP |
90252-04001 |
US $0.16 |
||
|
9538104030
|
9538104030
95381-04030 PIN |
95381-04030 |
from US $0.78 |
||
