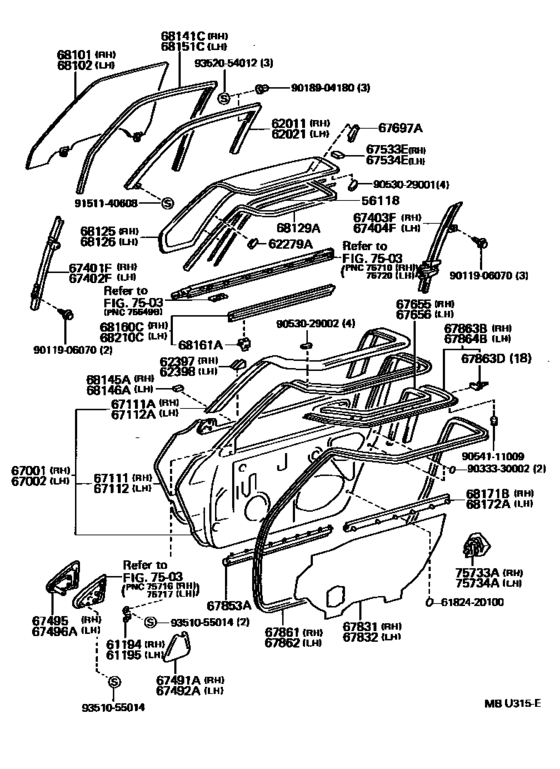

Front Door Panel & Glass ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56118
|
56118
56118-18010 Dam, Window Glass Adhesive, No.2[03.1990 - 12.1995] EXY10 |
56118-18010 |
US $6.12 |
||
|
61194
|
61194
61194-18010
Retainer, Outer Side Mirror, Rh
[03.1990 - 12.1995] EXY10 |
61194-18010 |
— | ||
|
61195
|
61195
61195-18010 Retainer, Outer Side Mirror, Lh[03.1990 - 12.1995] EXY10 |
61195-18010 |
US $5.24 |
||
|
62011
|
62011
62011-18010
Frame Sub-Assy, Front Side Window, Outer Rh
[03.1990 - 12.1995] EXY10 |
62011-18010 |
— | ||
|
62021
|
62021
62021-18010
Frame Sub-Assy, Front Side Window, Outer Lh
[03.1990 - 12.1995] EXY10 |
62021-18010 |
— | ||
|
62279A
|
62279A
62279-18010
Spacer, Side Window Frame
[03.1990 - 12.1995] EXY10 |
62279-18010 |
— | ||
|
62397
|
62397
62397-18010 Piece Front Door Window, Rh[03.1990 - 12.1995] EXY10 |
62397-18010 |
US $5.24 |
||
|
62398
|
62398
62398-18010 Piece Front Door Window, Lh[03.1990 - 12.1995] EXY10 |
62398-18010 |
US $5.24 |
||
|
67001
|
67001
67001-18010 Panel Sub-Assy, Front Door, Rh[03.1990 - 06.1992] EXY10 |
67001-18010 |
US $1,029.39 |
||
|
67001
|
67001
67001-18011 Panel Sub-Assy, Front Door, Rh[06.1992 - 12.1995] EXY10 |
67001-18011 |
US $1,081.81 |
||
|
67002
|
67002
67002-18010 Panel Sub-Assy, Front Door, Lh[03.1990 - 06.1992] EXY10 |
67002-18010 |
US $1,029.39 |
||
|
67002
|
67002
67002-18011 Panel Sub-Assy, Front Door, Lh[06.1992 - 12.1995] EXY10 |
67002-18011 |
US $1,081.81 |
||
|
67111
|
67111
67113-18010 Panel, Front Door, Outer Rh[03.1990 - 12.1995] EXY10 |
67113-18010 |
US $420.78 |
||
|
67111A
|
67111A
67413-18010 Frame, Front Door Window, Upper Rh[03.1990 - 12.1995] EXY10 |
67413-18010 |
US $187.82 |
||
|
67112
|
67112
67114-18010
Panel, Front Door, Outer Lh
[03.1990 - 12.1995] EXY10 |
67114-18010 |
— | ||
|
67112A
|
67112A
67414-18010 Frame, Front Door Window, Upper Lh[03.1990 - 12.1995] EXY10 |
67414-18010 |
US $187.82 |
||
|
67401F
|
67401F
67401-18010 Frame Sub-Assy, Front Door, Front Lower Rh[03.1990 - 12.1995] EXY10 |
67401-18010 |
US $32.03 |
||
|
67402F
|
67402F
67402-18010 Frame Sub-Assy, Front Door, Front Lower Lh[03.1990 - 12.1995] EXY10 |
67402-18010 |
US $32.03 |
||
|
67403F
|
67403F
67403-18010 Frame Sub-Assy, Front Door, Rear Lower Rh[03.1990 - 12.1995] EXY10 |
67403-18010 |
US $47.90 |
||
|
67404F
|
67404F
67404-18010 Frame Sub-Assy, Front Door, Rear Lower Lh[03.1990 - 12.1995] EXY10 |
67404-18010 |
US $47.90 |
||
|
67491A
|
67491A
67491-18010
Garnish, Front Door Lower Frame Bracket, Rh
[03.1990 - 12.1995] EXY10 |
67491-18010 |
— | ||
|
67492A
|
67492A
67492-18010
Garnish, Front Door Lower Frame Bracket, Lh
[03.1990 - 12.1995] EXY10 |
67492-18010 |
— | ||
|
67495
|
67495
67495-18010 Cover, Front Door Front Lower Frame, Upper[03.1990 - 12.1995] EXY10 |
67495-18010 |
US $25.63 |
||
|
67496A
|
67496A
67496-18010 Cover, Front Door Front Lower Frame, Upper Lh[03.1990 - 12.1995] EXY10 |
67496-18010 |
US $25.63 |
||
|
67533E
|
67533E
67533-18010
Seal, Front Door Division Bar, Rh
[03.1990 - 12.1995] EXY10 |
67533-18010 |
— | ||
|
67534E
|
67534E
67533-18010
Seal, Front Door Division Bar, Rh
[03.1990 - 12.1995] EXY10 |
67533-18010 |
— | ||
|
67655
|
67655
67655-18010 Garnish, Front Door Trim, Rh[03.1990 - 12.1995] EXY10 |
67655-18010 |
US $84.45 |
||
|
67656
|
67656
67656-18010 Garnish, Door Trim, Lh[03.1990 - 12.1995] EXY10 |
67656-18010 |
US $84.45 |
||
|
67697A
|
67697A
67697-18010 Dam, Slide Door Trim, Upper[03.1990 - 12.1995] EXY10 |
67697-18010 |
US $2.18 |
||
|
67831
|
67831
67831-18010
Cover, Front Door Service Hole, Rh
[03.1990 - 12.1995] EXY10 |
67831-18010 |
— | ||
|
67832
|
67832
67831-18010
Cover, Front Door Service Hole, Rh
[03.1990 - 12.1995] EXY10 |
67831-18010 |
— | ||
|
67853A
|
67853A
67853-18010
Weatherstrip, Front Door, Outer Lower
[03.1990 - 12.1995] EXY10 |
67853-18010 |
— | ||
|
67861
|
67861
67861-18010
Weatherstrip, Front Door, Rh
[03.1990 - 12.1995] EXY10 |
67861-18010 |
— | ||
|
67862
|
67862
67862-18010
Weatherstrip, Front Door, Lh
[03.1990 - 12.1995] EXY10 |
67862-18010 |
— | ||
|
67863B
|
67863B
67863-18010
Weatherstrip, Front Door, No.2 Rh
[03.1990 - 12.1995] EXY10 |
67863-18010 |
— | ||
|
67863D
|
67863D
67868-12050 Retainer, Rh(For Front Door No.2 Weatherstrip)[03.1990 - 12.1995] EXY10 |
67868-12050 |
from US $3.32 |
||
|
67864B
|
67864B
67864-18010 Weatherstrip, Front Door, No.2 Lh[03.1990 - 12.1995] EXY10 |
67864-18010 |
US $55.18 |
||
|
68101
|
68101
68101-18010
Glass Sub-Assy, Front Door, Rh
[03.1990 - 12.1995] EXY10 ＊ＴＴ，厚さ＝４．０ |
68101-18010 |
— | ||
|
68101
|
68101
68101-18020 Glass Sub-Assy, Front Door, Rh[03.1990 - 04.1991] EXY10 ＊ＴＥＭ，厚さ＝４．０，ブロンズ |
68101-18020 |
US $343.62 |
||
|
68102
|
68102
68102-18010
Glass Sub-Assy, Front Door, Lh
[03.1990 - 12.1995] EXY10 ＊ＴＴ，厚さ＝４．０ |
68102-18010 |
— | ||
|
68102
|
68102
68102-18020 Glass Sub-Assy, Front Door, Lh[03.1990 - 04.1991] EXY10 ＊ＴＥＭ，厚さ＝４．０，ブロンズ |
68102-18020 |
US $343.62 |
||
|
68125
|
68125
68125-18010
Glass, Front Door Fix Window, Rh
[03.1990 - 12.1995] EXY10 ＊ＴＴ，厚さ＝３．５ |
68125-18010 |
— | ||
|
68125
|
68125
68125-18020
Glass, Front Door Fix Window, Rh
[03.1990 - 04.1991] EXY10 ＊ＴＥＭ，厚さ＝３．５，ブロンズ |
68125-18020 |
— | ||
|
68125
|
68125
68125-18030 Glass, Front Door Fix Window, Rh[04.1991 - 12.1995] EXY10 ＊ＳＥＲＴ，厚さ＝３．５，ブルー |
68125-18030 |
US $979.89 |
||
|
68125
|
68125
68125-18040 Glass, Front Door Fix Window, Rh[04.1991 - 12.1995] EXY10 ＊ＳＥＲＴ，厚さ＝３．５，ブロンズ |
68125-18040 |
US $1,174.99 |
||
|
68126
|
68126
68126-18010 Glass, Front Door Fix Window, Lh[03.1990 - 12.1995] EXY10 ＊ＴＴ，厚さ＝３．５ |
68126-18010 |
US $578.03 |
||
|
68126
|
68126
68126-18020 Glass, Front Door Fix Window, Lh[03.1990 - 04.1991] EXY10 ＊ＴＥＭ，厚さ＝３．５，ブロンズ |
68126-18020 |
US $693.06 |
||
|
68126
|
68126
68126-18030 Glass, Front Door Fix Window, Lh[04.1991 - 12.1995] EXY10 ＊ＳＥＲＴ，厚さ＝３．５，ブルー |
68126-18030 |
US $979.89 |
||
|
68126
|
68126
68126-18040 Glass, Front Door Fix Window, Lh[04.1991 - 12.1995] EXY10 ＊ＳＥＲＴ，厚さ＝３．５，ブロンズ |
68126-18040 |
US $1,174.99 |
||
|
68129A
|
68129A
04562-18010
Dam Kit, Windshield Glass
[03.1990 - 12.1995] EXY10 |
04562-18010 |
— | ||
|
68141C
|
68141C
68141-18010
Run, Front Door Glass, Rh
[03.1990 - 12.1995] EXY10 |
68141-18010 |
— | ||
|
68145A
|
68145A
68145-18010
Cushion, Front Door Window
[03.1990 - 12.1995] EXY10 |
68145-18010 |
— | ||
|
68146A
|
68146A
68145-18010
Cushion, Front Door Window
[03.1990 - 12.1995] EXY10 |
68145-18010 |
— | ||
|
68151C
|
68151C
68151-18010
Run, Front Door Glass, Lh
[03.1990 - 12.1995] EXY10 |
68151-18010 |
— | ||
|
68160C
|
68160C
68160-18010
Weatherstrip Assy, Front Door Glass, Outer Rh
[03.1990 - 12.1995] EXY10 |
68160-18010 |
— | ||
|
68161A
|
68161A
68211-18010
Clip(For Front Door Glass Outer Weatherstrip)
[03.1990 - 12.1995] EXY10 右側 |
68211-18010 |
— | ||
|
68161A
|
68161A
68212-18010
Clip(For Front Door Glass Outer Weatherstrip)
[03.1990 - 12.1995] EXY10 左側 |
68212-18010 |
— | ||
|
68171B
|
68171B
68171-18010
Weatherstrip, Front Door Glass, Inner Rh
[03.1990 - 12.1995] EXY10 |
68171-18010 |
— | ||
|
68172A
|
68172A
68172-18010
Weatherstrip, Front Door Glass, Inner Lh
[03.1990 - 12.1995] EXY10 |
68172-18010 |
— | ||
|
68210C
|
68210C
68210-18010
Weatherstrip Assy, Front Door Glass, Outer Lh
[03.1990 - 12.1995] EXY10 |
68210-18010 |
— | ||
|
75733A
|
75733A
75733-18010-18 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 05.1991] EXY10 DARK GRAY M.M,188 |
75733-18010-18 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 05.1991] EXY10 DARK GRAY M.M,188 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-19 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 12.1995] EXY10 SILVER O.P.M,189 |
75733-18010-19 |
US $50.23 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 12.1995] EXY10 SILVER O.P.M,189 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-22 Moulding, Front Door Finish Panel, Upper Rh[05.1991 - 12.1995] EXY10 BLACK,202 |
75733-18010-22 |
US $50.23 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[05.1991 - 12.1995] EXY10 BLACK,202 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-36 Moulding, Front Door Finish Panel, Upper Rh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
75733-18010-36 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-38 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
75733-18010-38 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-59 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 06.1992] EXY10 GRENISH YELLOW,569 |
75733-18010-59 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 06.1992] EXY10 GRENISH YELLOW,569 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-D1 Moulding, Front Door Finish Panel, Upper Rh[06.1992 - 12.1995] EXY10 RED,3E6 |
75733-18010-D1 |
US $50.23 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[06.1992 - 12.1995] EXY10 RED,3E6 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-H0 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 05.1991] EXY10 LT.TURQUOISE,743 |
75733-18010-H0 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 05.1991] EXY10 LT.TURQUOISE,743 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-H1 Moulding, Front Door Finish Panel, Upper Rh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
75733-18010-H1 |
US $50.23 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-J0 Moulding, Front Door Finish Panel, Upper Rh[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
75733-18010-J0 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
75733-18900 |
US $55.47 |
||
|
75733A
|
75733A
75733-18010-J2 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 06.1992] EXY10 MED,BLUE M.M,8H7 |
75733-18010-J2 |
US $50.38 |
||
| replacement | |||||
|
75733A
|
75733A
75733-18900 Moulding, Front Door Finish Panel, Upper Rh[03.1990 - 06.1992] EXY10 MED,BLUE M.M,8H7 |
75733-18900 |
US $55.47 |
||
|
75734A
|
75734A
75734-18010-18 Moulding, Front Door Finish Panel, Upper Lh[03.1990 - 05.1991] EXY10 DARK GRAY M.M,188 |
75734-18010-18 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 05.1991] EXY10 DARK GRAY M.M,188 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-19
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 12.1995] EXY10 SILVER O.P.M,189 |
75734-18010-19 |
— | ||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 12.1995] EXY10 SILVER O.P.M,189 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-22 Moulding, Front Door Finish Panel, Upper Lh[05.1991 - 12.1995] EXY10 BLACK,202 |
75734-18010-22 |
US $50.23 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[05.1991 - 12.1995] EXY10 BLACK,202 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-36 Moulding, Front Door Finish Panel, Upper Lh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
75734-18010-36 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-38 Moulding, Front Door Finish Panel, Upper Lh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
75734-18010-38 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-59 Moulding, Front Door Finish Panel, Upper Lh[03.1990 - 06.1992] EXY10 GRENISH YELLOW M.M,569 |
75734-18010-59 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 06.1992] EXY10 GRENISH YELLOW M.M,569 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-D1 Moulding, Front Door Finish Panel, Upper Lh[06.1992 - 12.1995] EXY10 RED,3E6 |
75734-18010-D1 |
US $50.23 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[06.1992 - 12.1995] EXY10 RED,3E6 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-H0 Moulding, Front Door Finish Panel, Upper Lh[03.1990 - 05.1991] EXY10 LT.TURQUOISE,743 |
75734-18010-H0 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 05.1991] EXY10 LT.TURQUOISE,743 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-H1 Moulding, Front Door Finish Panel, Upper Lh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
75734-18010-H1 |
US $50.09 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-J0 Moulding, Front Door Finish Panel, Upper Lh[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
75734-18010-J0 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
75734-18900 |
— | ||
|
75734A
|
75734A
75734-18010-J2 Moulding, Front Door Finish Panel, Upper Lh[03.1990 - 06.1992] EXY10 MED,BLUE M.M,8H7 |
75734-18010-J2 |
US $50.38 |
||
| replacement | |||||
|
75734A
|
75734A
75734-18900
Moulding, Front Door Finish Panel, Upper Lh
[03.1990 - 06.1992] EXY10 MED,BLUE M.M,8H7 |
75734-18900 |
— | ||
|
6182420100
|
6182420100
61824-20100 Plate, Noise Control, No.1 |
61824-20100 |
US $2.04 |
||
|
9011906070
|
9011906070
90119-06070
BOLT
|
90119-06070 |
— | ||
| replacement | |||||
|
9011906070
|
9011906070
90119-06442 BOLT WWASHER |
90119-06442 |
US $1.92 |
||
|
9018904180
|
9018904180
90189-04180 New Genuine Part |
90189-04180 |
US $1.89 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9053029001
|
9053029001
90530-29001
New Genuine Part
|
90530-29001 |
— | ||
|
9053029002
|
9053029002
90530-29002
New Genuine Part
|
90530-29002 |
— | ||
|
9054111009
|
9054111009
90541-11009 New Genuine Part |
90541-11009 |
US $2.62 |
||
|
9151140608
|
9151140608
91511-40608 New Genuine Part |
91511-40608 |
US $1.05 |
||
|
9351055014
|
9351055014
93510-55014 New Genuine Part |
93510-55014 |
US $0.87 |
||
|
9352054012
|
9352054012
93520-54012 Screw |
93520-54012 |
from US $1.02 |
||
