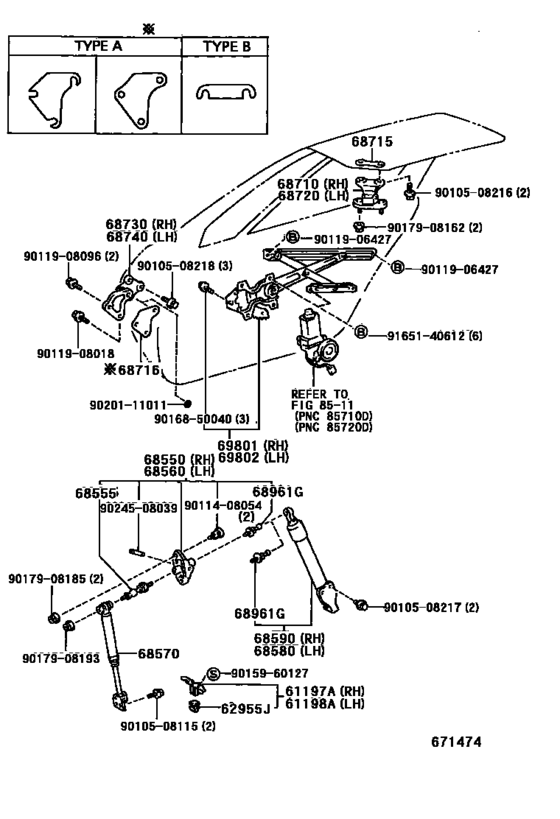

Front Door Window Regulator & Hinge ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61197A
|
61197A
61197-18010-02 Cover, Front Pillar, Rh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
61197-18010-02 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-03 Cover, Front Pillar, Rh[03.1990 - 05.1991] EXY10 DARK GRAY M.M,188 |
61197-18010-03 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-04 Cover, Front Pillar, Rh[03.1990 - 06.1992] EXY10 MED. BLUE M.M,8H7 |
61197-18010-04 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-07 Cover, Front Pillar, Rh[03.1990 - 05.1991] EXY10 LT, TURQUOISE M.M,743 |
61197-18010-07 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-09 Cover, Front Pillar, Rh[03.1990 - 06.1992] EXY10 GRENISH YELLOW M. M,569 |
61197-18010-09 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-13 Cover, Front Pillar, Rh[03.1990 - 12.1995] EXY10 SILVER O.P.M.,189 |
61197-18010-13 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-22 Cover, Front Pillar, Rh[05.1991 - 12.1995] EXY10 BLACK,202 |
61197-18010-22 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-36 Cover, Front Pillar, Rh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
61197-18010-36 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-D0 Cover, Front Pillar, Rh[06.1992 - 12.1995] EXY10 RED,3E6 |
61197-18010-D0 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-H0 Cover, Front Pillar, Rh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
61197-18010-H0 |
US $16.02 |
||
|
61197A
|
61197A
61197-18010-J0
Cover, Front Pillar, Rh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
61197-18010-J0 |
— | ||
|
61198A
|
61198A
61198-18010-02 Cover, Front Pillar, Lh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
61198-18010-02 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-03 Cover, Front Pillar, Lh[03.1990 - 05.1991] EXY10 DARK GRAY M.M.,188 |
61198-18010-03 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-04 Cover, Front Pillar, Lh[03.1990 - 06.1992] EXY10 MED. BLUE M.M.,8H7 |
61198-18010-04 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-07 Cover, Front Pillar, Lh[03.1990 - 05.1991] EXY10 LT. TURQUOISE M.M,,743 |
61198-18010-07 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-09 Cover, Front Pillar, Lh[03.1990 - 06.1992] EXY10 GRENISH YELLOW M.M,569 |
61198-18010-09 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-13 Cover, Front Pillar, Lh[03.1990 - 12.1995] EXY10 SILVER O.P.M,189 |
61198-18010-13 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-22 Cover, Front Pillar, Lh[05.1991 - 12.1995] EXY10 BLACK,202 |
61198-18010-22 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-36 Cover, Front Pillar, Lh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
61198-18010-36 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-D0 Cover, Front Pillar, Lh[06.1992 - 12.1995] EXY10 RED,3E6 |
61198-18010-D0 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-H0 Cover, Front Pillar, Lh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
61198-18010-H0 |
US $16.02 |
||
|
61198A
|
61198A
61198-18010-J0
Cover, Front Pillar, Lh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
61198-18010-J0 |
— | ||
|
62955J
|
62955J
62955-12040 Retainer, Quarter Vent Louver[03.1990 - 12.1995] EXY10 |
62955-12040 |
from US $1.56 |
||
|
68550
|
68550
68550-18010 Link Assy, Door Stay, Rh[03.1990 - 12.1995] EXY10 |
68550-18010 |
US $116.48 |
||
|
68555
|
68555
68555-18010 Bolt, Door Stay[03.1990 - 12.1995] EXY10 |
68555-18010 |
US $14.27 |
||
|
68560
|
68560
68560-18010 Link Assy, Door Stay, Lh[03.1990 - 12.1995] EXY10 |
68560-18010 |
US $116.48 |
||
|
68570
|
68570
68570-19015 Stay Assy, Door[03.1990 - 06.1992] EXY10 |
68570-19015 |
US $205.95 |
||
|
68570
|
68570
68570-19025 Stay Assy, Door[06.1992 - 12.1995] EXY10 |
68570-19025 |
US $221.31 |
||
|
68580
|
68580
68580-19015 Stay Assy,door Balancer,lh[03.1990 - 06.1992] EXY10 |
68580-19015 |
US $275.18 |
||
| replacement | |||||
|
68580
|
68580
68580-19025
Stay Assy,door Balancer,lh
[03.1990 - 06.1992] EXY10 |
68580-19025 |
— | ||
|
68580
|
68580
68580-19025
Stay Assy,door Balancer,lh
[06.1992 - 12.1995] EXY10 |
68580-19025 |
— | ||
|
68590
|
68590
68590-19015 Stay Assy, Door Balancer, Rh[03.1990 - 06.1992] EXY10 |
68590-19015 |
US $275.18 |
||
| replacement | |||||
|
68590
|
68590
68590-19025
Stay Assy, Door Balancer, Rh
[03.1990 - 06.1992] EXY10 |
68590-19025 |
— | ||
|
68590
|
68590
68590-19025
Stay Assy, Door Balancer, Rh
[06.1992 - 12.1995] EXY10 |
68590-19025 |
— | ||
|
68710
|
68710
68710-18010
Hinge Assy, Front Door, Upper Rh
[03.1990 - 12.1995] EXY10 |
68710-18010 |
— | ||
|
68715
|
68715
68715-18010
Plate, Front Door Hinge, Upper
[03.1990 - 12.1995] EXY10 |
68715-18010 |
— | ||
|
68716
|
68716
68716-18020
Plate, Front Door Hinge, Lower
[03.1990 - 12.1995] EXY10 タイプ Ｂ |
68716-18020 |
— | ||
|
68716
|
68716
68716-18030
Plate, Front Door Hinge, Lower
[03.1990 - 12.1995] EXY10 タイプ Ａ |
68716-18030 |
— | ||
|
68720
|
68720
68720-18010
Hinge Assy, Front Door, Upper Lh
[03.1990 - 12.1995] EXY10 |
68720-18010 |
— | ||
|
68730
|
68730
68730-18010
Hinge Assy, Front Door, Lower Rh
[03.1990 - 12.1995] EXY10 |
68730-18010 |
— | ||
|
68740
|
68740
68740-18010
Hinge Assy, Front Door, Lower Lh
[03.1990 - 12.1995] EXY10 |
68740-18010 |
— | ||
|
68961G
|
68961G
68961-18010
Bolt, Back Door Stay
[03.1990 - 12.1995] EXY10 |
68961-18010 |
— | ||
|
69801
|
69801
69801-18010
Regulator Sub-Assy, Front Door Window, Rh
[03.1990 - 12.1995] EXY10 |
69801-18010 |
— | ||
|
69802
|
69802
69802-18010
Regulator Sub-Assy, Front Door Window, Lh
[03.1990 - 12.1995] EXY10 |
69802-18010 |
— | ||
|
9010508115
|
9010508115
90105-08115 New Genuine Part |
90105-08115 |
US $1.89 |
||
| replacement | |||||
|
9010508115
|
9010508115
90105-08187 BOLTWATER BASED |
90105-08187 |
from US $1.21 |
||
|
9010508216
|
9010508216
90105-08216 New Genuine Part |
90105-08216 |
US $2.18 |
||
|
9010508217
|
9010508217
90105-08217
New Genuine Part
|
90105-08217 |
— | ||
|
9010508218
|
9010508218
90105-08218 New Genuine Part |
90105-08218 |
US $2.18 |
||
|
9011408054
|
9011408054
90114-08054 New Genuine Part |
90114-08054 |
US $4.66 |
||
|
9011906427
|
9011906427
90119-06427 New Genuine Part |
90119-06427 |
US $1.60 |
||
| replacement | |||||
|
9011906427
|
9011906427
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9011908018
|
9011908018
90119-08018 Bolt, Hexagon(For Idler Arm Support Setting) |
90119-08018 |
US $5.53 |
||
|
9011908096
|
9011908096
90119-08096 New Genuine Part |
90119-08096 |
US $2.18 |
||
|
9015960127
|
9015960127
90159-60127 New Genuine Part |
90159-60127 |
US $0.87 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
from US $0.82 |
||
|
9017908162
|
9017908162
90179-08162 New Genuine Part |
90179-08162 |
US $2.04 |
||
|
9017908185
|
9017908185
90179-08185 NUT |
90179-08185 |
from US $0.84 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9020111011
|
9020111011
90201-11011 WASHER |
90201-11011 |
US $1.31 |
||
|
9024508039
|
9024508039
90245-08039
New Genuine Part
|
90245-08039 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
