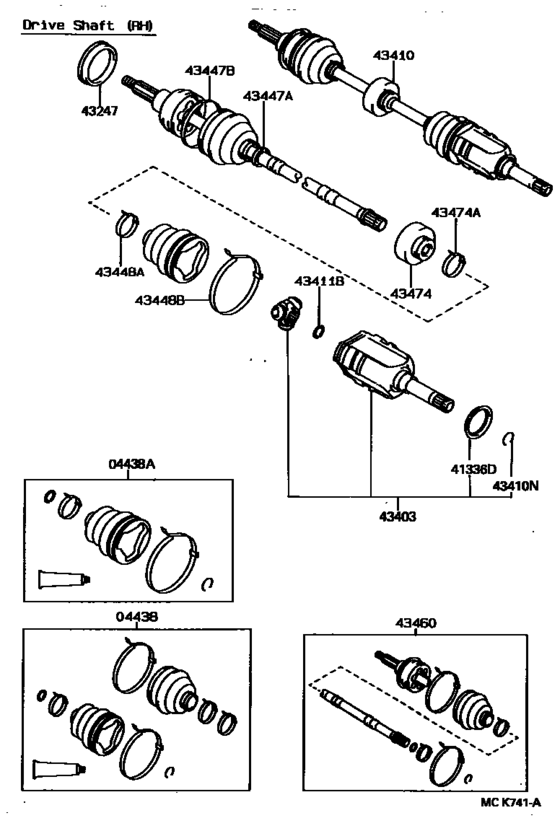

Front Drive Shaft ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438
|
04438
04438-10080
Boot Kit, Front Drive Shaft
[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
04438-10080 |
— | ||
|
04438
|
04438
04438-12170 Boot Kit, Front Drive Shaft[03.1990 - 09.1990] EXY10 |
04438-12170 |
US $145.60 |
||
| replacement | |||||
|
04438
|
04438
04438-12370 Boot Kit, Front Drive Shaft[03.1990 - 09.1990] EXY10 |
04438-12370 |
US $145.60 |
||
|
04438
|
04438
04438-12171 Boot Kit, Front Drive Shaft[09.1990 - 12.1995] EXY10 |
04438-12171 |
US $145.60 |
||
| replacement | |||||
|
04438
|
04438
04438-12370 Boot Kit, Front Drive Shaft[09.1990 - 12.1995] EXY10 |
04438-12370 |
US $145.60 |
||
|
04438A
|
04438A
04438-10070 Boot Kit, Front Drive Shaft Inboard Joint[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
04438-10070 |
US $90.27 |
||
| replacement | |||||
|
04438A
|
04438A
04438-30051 Boot Kit, Front Drive Shaft Inboard Joint, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
04438-30051 |
from US $72.16 |
||
|
04438A
|
04438A
04438-12160
Boot Kit, Front Drive Shaft Inboard Joint
[03.1990 - 09.1990] EXY10 |
04438-12160 |
— | ||
| replacement | |||||
|
04438A
|
04438A
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[03.1990 - 09.1990] EXY10 |
04438-32290 |
US $87.36 |
||
|
04438A
|
04438A
04438-12161
Boot Kit, Front Drive Shaft Inboard Joint
[09.1990 - 12.1995] EXY10 |
04438-12161 |
— | ||
| replacement | |||||
|
04438A
|
04438A
04438-32290 Boot Kit, Front Drive Shaft Inboard Joint[09.1990 - 12.1995] EXY10 |
04438-32290 |
US $87.36 |
||
|
41336D
|
41336D
41336-10020 Cover, Front Drive Shaft Dust, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD) |
41336-10020 |
US $5.82 |
||
|
41336D
|
41336D
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[03.1990 - 12.1995] EXY10 |
41336-12010 |
from US $1.54 |
||
|
43247
|
43247
43247-10020 Deflector, Front Wheel Bearing Dust, No.2[03.1990 - 08.1992] EXY10 |
43247-10020 |
US $7.86 |
||
|
43247
|
43247
43247-16040
Deflector, Front Wheel Bearing Dust, No.2
[08.1992 - 12.1995] EXY10 |
43247-16040 |
— | ||
|
43403
|
43403
43030-10020 Joint Set, Front Axle Inboard, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
43030-10020 |
US $356.72 |
||
|
43403
|
43403
43403-12040 Joint Assy, Front Drive Inboard[03.1990 - 12.1995] EXY10 |
43403-12040 |
from US $257.86 |
||
|
43410
|
43410
43410-10150 Shaft Assy, Front Drive, Rh[03.1990 - 01.1991] EXY10 |
43410-10150 |
US $1,084.72 |
||
| replacements | |||||
|
43410
|
43410
43410-10350
Shaft Assy, Front Drive, Rh
[03.1990 - 01.1991] EXY10 |
43410-10350 |
— | ||
|
43410
|
43410
43525-20030 Cap, Front Wheel Adjusting Lock[03.1990 - 01.1991] EXY10 |
43525-20030 |
from US $2.91 |
||
|
43410
|
43410
90179-22020 Nut (For Rear Axle Shaft)[03.1990 - 01.1991] EXY10 |
90179-22020 |
from US $3.06 |
||
|
43410
|
43410
43410-10151 Shaft Assy, Front Drive, Rh[01.1991 - 12.1991] EXY10 |
43410-10151 |
US $1,074.53 |
||
| replacement | |||||
|
43410
|
43410
43410-10350
Shaft Assy, Front Drive, Rh
[01.1991 - 12.1991] EXY10 |
43410-10350 |
— | ||
|
43410
|
43410
43410-10160 Shaft Assy, Front Drive, Rh[03.1990 - 01.1991] EXY10 ｱﾘ(*66) |
43410-10160 |
US $1,084.72 |
||
| replacements | |||||
|
43410
|
43410
43410-10360 Shaft Assy, Front Drive, Rh[03.1990 - 01.1991] EXY10 ｱﾘ(*66) |
43410-10360 |
US $1,071.62 |
||
|
43410
|
43410
43525-20030 Cap, Front Wheel Adjusting Lock[03.1990 - 01.1991] EXY10 ｱﾘ(*66) |
43525-20030 |
from US $2.91 |
||
|
43410
|
43410
90179-22020 Nut (For Rear Axle Shaft)[03.1990 - 01.1991] EXY10 ｱﾘ(*66) |
90179-22020 |
from US $3.06 |
||
|
43410
|
43410
43410-10161 Shaft Assy, Front Drive, Rh[01.1991 - 12.1991] EXY10 ｱﾘ(*66) |
43410-10161 |
US $1,074.53 |
||
| replacement | |||||
|
43410
|
43410
43410-10360 Shaft Assy, Front Drive, Rh[01.1991 - 12.1991] EXY10 ｱﾘ(*66) |
43410-10360 |
US $1,071.62 |
||
|
43410
|
43410
43410-10220 Shaft Assy, Front Drive, Rh[12.1991 - 12.1995] EXY10 |
43410-10220 |
US $1,074.53 |
||
| replacement | |||||
|
43410
|
43410
43410-10350
Shaft Assy, Front Drive, Rh
[12.1991 - 12.1995] EXY10 |
43410-10350 |
— | ||
|
43410
|
43410
43410-10230 Shaft Assy, Front Drive, Rh[12.1991 - 12.1995] EXY10 ｱﾘ(*66) |
43410-10230 |
US $1,074.53 |
||
| replacement | |||||
|
43410
|
43410
43410-10360 Shaft Assy, Front Drive, Rh[12.1991 - 12.1995] EXY10 ｱﾘ(*66) |
43410-10360 |
US $1,071.62 |
||
|
43410
|
43410
43410-10250 Shaft Assy, Front Drive, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
43410-10250 |
US $1,003.18 |
||
| replacements | |||||
|
43410
|
43410
04422-10040 Seal Kit, Front Axle Oil[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
04422-10040 |
US $18.54 |
||
|
43410
|
43410
43410-10260 Shaft Assy, Front Drive, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
43410-10260 |
US $1,003.18 |
||
|
43410
|
43410
43410-10260 Shaft Assy, Front Drive, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(*66) & ｱﾘ(LSD),*AXC=-642 |
43410-10260 |
US $1,003.18 |
||
|
43410N
|
43410N
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[03.1990 - 12.1995] EXY10 |
90521-26004 |
from US $1.60 |
||
|
43411B
|
43411B
90520-20065 Ring, Hole Snap(For Piston Pin)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD) |
90520-20065 |
US $0.76 |
||
|
43411B
|
43411B
90520-22005 Ring, Snap (For Rear Drive Shaft)[03.1990 - 12.1995] EXY10 |
90520-22005 |
from US $1.24 |
||
|
43447A
|
43447A
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[07.1993 - 12.1995] EXY10 |
42345-16010 |
from US $1.88 |
||
|
43447A
|
43447A
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[03.1990 - 07.1993] EXY10 |
90949-01078 |
US $0.61 |
||
|
43447A
|
43447A
90949-01804 Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90949-01804 |
US $2.48 |
||
|
43447B
|
43447B
42345-16020 Clamp (For Rear Drive Shaft Outboard Joint Boot)[07.1993 - 12.1995] EXY10 |
42345-16020 |
US $3.79 |
||
|
43447B
|
43447B
90949-01080 Clamp (For Rear Drive Shaft Outboard Joint Boot)[03.1990 - 07.1993] EXY10 |
90949-01080 |
US $3.93 |
||
|
43447B
|
43447B
90949-01802 Clamp, No.2 (For Front Axle Outboard Joint Boot Setting)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90949-01802 |
US $4.80 |
||
|
43448A
|
43448A
42345-16010 Clamp (For Rear Drive Shaft Outboard Joint Boot)[07.1993 - 12.1995] EXY10 |
42345-16010 |
from US $1.88 |
||
|
43448A
|
43448A
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[03.1990 - 07.1993] EXY10 |
90949-01078 |
US $0.61 |
||
|
43448A
|
43448A
90949-01804 Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90949-01804 |
US $2.48 |
||
|
43448B
|
43448B
42345-16040
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[07.1993 - 12.1995] EXY10 |
42345-16040 |
— | ||
|
43448B
|
43448B
90949-01076
Clamp (For Rear Drive Shaft Outboard Joint Boot)
[03.1990 - 07.1993] EXY10 |
90949-01076 |
— | ||
| replacement | |||||
|
43448B
|
43448B
42345-12160 Clamp, No.2 (For Drive Shaft Inboard Joint Boot)Big [03.1990 - 07.1993] EXY10 |
42345-12160 |
from US $4.64 |
||
|
43448B
|
43448B
90949-01803 Clamp, No.2 (For Rear Drive Shaft Inboard Joint Boot Rh)[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
90949-01803 |
US $3.67 |
||
|
43460
|
43460
43460-19495 Shaft Assy, Front Drive Outboard Joint, Rh[03.1990 - 01.1991] EXY10 |
43460-19495 |
US $631.90 |
||
| replacements | |||||
|
43460
|
43460
43460-80098 Shaft Assy, Front Drive Outboard Joint, Rh[03.1990 - 01.1991] EXY10 |
43460-80098 |
US $624.62 |
||
|
43460
|
43460
43525-20030 Cap, Front Wheel Adjusting Lock[03.1990 - 01.1991] EXY10 |
43525-20030 |
from US $2.91 |
||
|
43460
|
43460
90179-22020 Nut (For Rear Axle Shaft)[03.1990 - 01.1991] EXY10 |
90179-22020 |
from US $3.06 |
||
|
43460
|
43460
43460-19496 Shaft Assy, Front Drive Outboard Joint, Rh[01.1991 - 12.1995] EXY10 |
43460-19496 |
US $624.62 |
||
| replacement | |||||
|
43460
|
43460
43460-80098 Shaft Assy, Front Drive Outboard Joint, Rh[01.1991 - 12.1995] EXY10 |
43460-80098 |
US $624.62 |
||
|
43460
|
43460
43460-19505 Shaft Assy, Front Drive Outboard Joint, Rh[03.1990 - 07.1990] EXY10 ｱﾘ(*66) |
43460-19505 |
US $631.90 |
||
| replacements | |||||
|
43460
|
43460
43460-80099 Shaft Assy, Front Drive Outboard Joint, Rh[03.1990 - 07.1990] EXY10 ｱﾘ(*66) |
43460-80099 |
US $624.62 |
||
|
43460
|
43460
43525-20030 Cap, Front Wheel Adjusting Lock[03.1990 - 07.1990] EXY10 ｱﾘ(*66) |
43525-20030 |
from US $2.91 |
||
|
43460
|
43460
90179-22020 Nut (For Rear Axle Shaft)[03.1990 - 07.1990] EXY10 ｱﾘ(*66) |
90179-22020 |
from US $3.06 |
||
|
43460
|
43460
43460-19506 Shaft Assy, Front Drive Outboard Joint, Rh[01.1991 - 12.1995] EXY10 ｱﾘ(*66) |
43460-19506 |
US $624.62 |
||
| replacement | |||||
|
43460
|
43460
43460-80099 Shaft Assy, Front Drive Outboard Joint, Rh[01.1991 - 12.1995] EXY10 ｱﾘ(*66) |
43460-80099 |
US $624.62 |
||
|
43460
|
43460
43460-19605 Shaft Assy, Front Drive Outboard Joint, Rh[07.1990 - 01.1991] EXY10 ｱﾘ(*66) |
43460-19605 |
US $631.90 |
||
| replacements | |||||
|
43460
|
43460
43460-80099 Shaft Assy, Front Drive Outboard Joint, Rh[07.1990 - 01.1991] EXY10 ｱﾘ(*66) |
43460-80099 |
US $624.62 |
||
|
43460
|
43460
43525-20030 Cap, Front Wheel Adjusting Lock[07.1990 - 01.1991] EXY10 ｱﾘ(*66) |
43525-20030 |
from US $2.91 |
||
|
43460
|
43460
90179-22020 Nut (For Rear Axle Shaft)[07.1990 - 01.1991] EXY10 ｱﾘ(*66) |
90179-22020 |
from US $3.06 |
||
|
43460
|
43460
43460-19695 Shaft Assy, Front Drive Outboard Joint, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(LSD),*AXC=-642 |
43460-19695 |
US $596.96 |
||
|
43460
|
43460
43460-19705 Shaft Assy, Front Drive Outboard Joint, Rh[12.1992 - 12.1995] EXY10..MTM ｱﾘ(*66) & ｱﾘ(LSD),*AXC=-642 |
43460-19705 |
US $596.96 |
||
|
43474
|
43474
43474-12020
Damper, Drive Shaft
[03.1990 - 12.1991] EXY10 |
43474-12020 |
— | ||
|
43474
|
43474
43474-20050 Damper, Drive Shaft[12.1991 - 12.1995] EXY10 |
43474-20050 |
US $26.94 |
||
|
43474A
|
43474A
42345-14010 Clamp, Rear Drive Shaft Boot[03.1990 - 07.1993] EXY10 |
42345-14010 |
US $11.20 |
||
|
43474A
|
43474A
42345-16030 Clamp, Rear Drive Shaft Boot[07.1993 - 12.1995] EXY10 |
42345-16030 |
US $8.56 |
||
