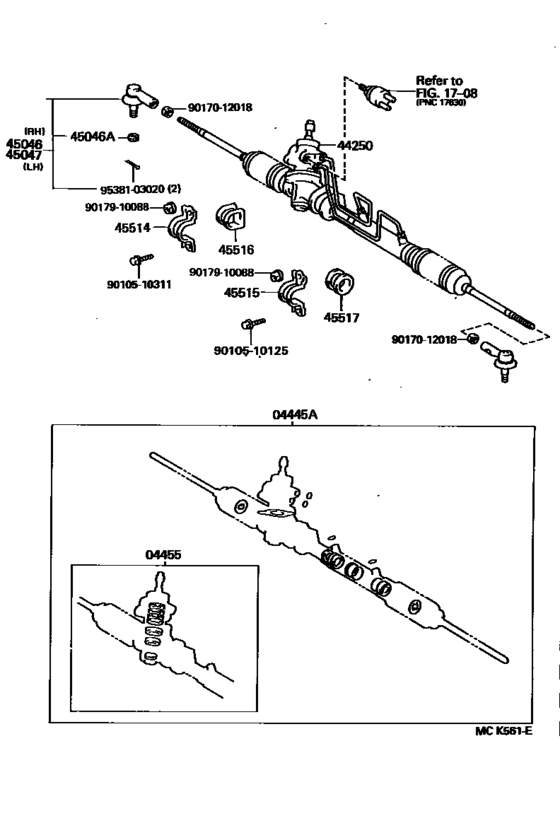

Front Steering Gear & Link ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04445A
|
04445A
04445-10020
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[03.1990 - 05.1994] EXY10 |
04445-10020 |
— | ||
| replacement | |||||
|
04445A
|
04445A
04445-10030
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[03.1990 - 05.1994] EXY10 |
04445-10030 |
— | ||
|
04445A
|
04445A
04445-10030
Gasket Kit, Power Steering Gear(For Rack & Pinion)
[05.1994 - 12.1995] EXY10 |
04445-10030 |
— | ||
|
04455
|
04455
04455-10020
Gasket Kit, Power Steering Control Valve Overhole
[03.1990 - 05.1994] EXY10 |
04455-10020 |
— | ||
| replacement | |||||
|
04455
|
04455
04455-10030
Gasket Kit, Power Steering Control Valve Overhole
[03.1990 - 05.1994] EXY10 |
04455-10030 |
— | ||
|
04455
|
04455
04455-10030
Gasket Kit, Power Steering Control Valve Overhole
[05.1994 - 12.1995] EXY10 |
04455-10030 |
— | ||
|
44250
|
44250
44250-10110 Gear Assy, Power Steering(For Rack & Pinion)[06.1992 - 05.1994] EXY10 |
44250-10110 |
US $1,361.36 |
||
| replacement | |||||
|
44250
|
44250
44250-10201 Gear Assy, Power Steering(For Rack & Pinion)[06.1992 - 05.1994] EXY10 |
44250-10201 |
US $1,368.64 |
||
|
44250
|
44250
44250-16150 Gear Assy, Power Steering(For Rack & Pinion)[05.1994 - 01.1995] EXY10 |
44250-16150 |
US $1,361.36 |
||
| replacement | |||||
|
44250
|
44250
44250-10170 Gear Assy, Power Steering(For Rack & Pinion)[05.1994 - 01.1995] EXY10 |
44250-10170 |
US $1,368.64 |
||
|
44250
|
44250
44250-16151 Gear Assy, Power Steering(For Rack & Pinion)[01.1995 - 12.1995] EXY10 |
44250-16151 |
US $1,431.25 |
||
| replacement | |||||
|
44250
|
44250
44250-10201 Gear Assy, Power Steering(For Rack & Pinion)[01.1995 - 12.1995] EXY10 |
44250-10201 |
US $1,368.64 |
||
|
44250
|
44250
44250-18010 Gear Assy, Power Steering(For Rack & Pinion)[03.1990 - 06.1992] EXY10 |
44250-18010 |
US $1,431.25 |
||
| replacement | |||||
|
44250
|
44250
44250-18012 Gear Assy, Power Steering(for Rack & Pinion)[03.1990 - 06.1992] EXY10 |
44250-18012 |
US $1,429.79 |
||
|
45046
|
45046
45046-19205
End Sub-Assy, Tie Rod, Rh
[03.1990 - 01.1991] EXY10 |
45046-19205 |
— | ||
| replacement | |||||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[03.1990 - 01.1991] EXY10 |
45046-19206 |
from US $42.80 |
||
|
45046
|
45046
45046-19206 End Sub-Assy, Tie Rod[01.1991 - 12.1995] EXY10 |
45046-19206 |
from US $42.80 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[03.1990 - 12.1995] EXY10 |
90171-12028 |
from US $1.42 |
||
|
45047
|
45047
45046-19205
End Sub-Assy, Tie Rod, Rh
[03.1990 - 01.1991] EXY10 |
45046-19205 |
— | ||
| replacement | |||||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[03.1990 - 01.1991] EXY10 |
45046-19206 |
from US $42.80 |
||
|
45047
|
45047
45046-19206 End Sub-Assy, Tie Rod[01.1991 - 12.1995] EXY10 |
45046-19206 |
from US $42.80 |
||
|
45514
|
45514
45514-10040 Bracket, Steering Rack Housing, No.1[03.1990 - 06.1992] EXY10 |
45514-10040 |
US $8.30 |
||
|
45514
|
45514
45514-16060 Bracket, Steering Rack Housing, No.1[06.1992 - 12.1995] EXY10 |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45514
|
45514
45514-16061 Bracket, Steering Rack Housing, No.1[06.1992 - 12.1995] EXY10 |
45514-16061 |
US $8.30 |
||
|
45515
|
45515
45514-10040 Bracket, Steering Rack Housing, No.1[03.1990 - 06.1992] EXY10 |
45514-10040 |
US $8.30 |
||
|
45515
|
45515
45514-16060 Bracket, Steering Rack Housing, No.1[06.1992 - 12.1995] EXY10 |
45514-16060 |
US $11.94 |
||
| replacement | |||||
|
45515
|
45515
45514-16061 Bracket, Steering Rack Housing, No.1[06.1992 - 12.1995] EXY10 |
45514-16061 |
US $8.30 |
||
|
45516
|
45516
45516-16040
Grommet, Steering Rack Housing, No.1
[03.1990 - 10.1990] EXY10 |
45516-16040 |
— | ||
| replacement | |||||
|
45516
|
45516
45516-20010 Grommet, Steering Rack Housing, No.1[03.1990 - 10.1990] EXY10 |
45516-20010 |
US $12.16 |
||
|
45516
|
45516
45516-16060 Grommet, Steering Rack Housing, No.1[10.1990 - 12.1995] EXY10 |
45516-16060 |
from US $21.43 |
||
|
45517
|
45517
45517-10070 Grommet, Steering Rack Housing, No.2[03.1990 - 12.1995] EXY10 |
45517-10070 |
US $17.63 |
||
|
9010510125
|
9010510125
90105-10125 New Genuine Part |
90105-10125 |
US $2.48 |
||
|
9010510311
|
9010510311
90105-10311 New Genuine Part |
90105-10311 |
US $2.62 |
||
|
9017012018
|
9017012018
90170-12018 Nut (For Propeller Shaft) |
90170-12018 |
from US $1.28 |
||
|
9017910088
|
9017910088
90179-10088 Nut |
90179-10088 |
from US $1.07 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $1.44 |
||
