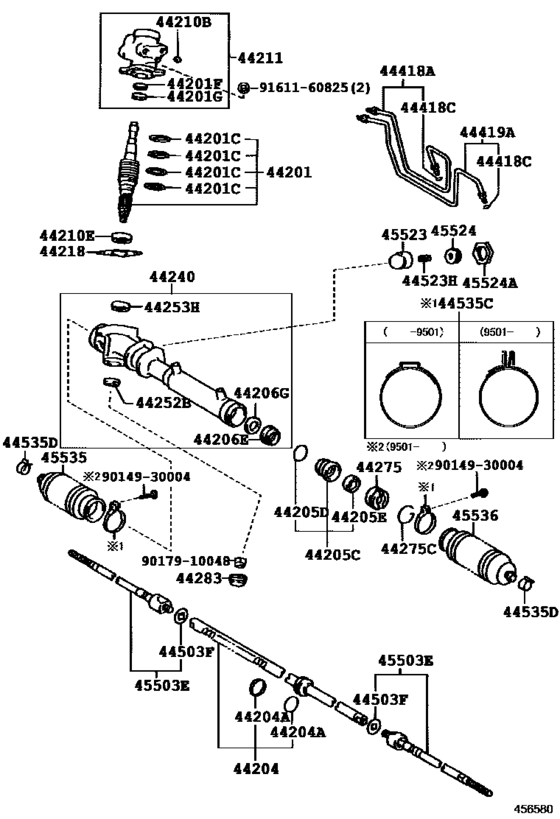

Front Steering Gear & Link ([05.1994 - ] (9405- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44201
|
44201
44201-10060 Valve Sub-Assy, Power Steering Control[06.1992 - 05.1994] EXY10 |
44201-10060 |
US $292.66 |
||
| replacement | |||||
|
44201
|
44201
44201-16080 Valve Sub-Assy, Power Steering Control[06.1992 - 05.1994] EXY10 |
44201-16080 |
US $294.11 |
||
|
44201
|
44201
44201-16080 Valve Sub-Assy, Power Steering Control[05.1994 - 12.1995] EXY10 |
44201-16080 |
US $294.11 |
||
|
44201
|
44201
44201-18010 Valve Sub-Assy, Power Steering Control[03.1990 - 06.1992] EXY10 |
44201-18010 |
US $292.66 |
||
| replacement | |||||
|
44201
|
44201
44201-10030 Valve Sub-Assy, Power Steering Control[03.1990 - 06.1992] EXY10 |
44201-10030 |
US $292.66 |
||
|
44201C
|
44201C
90560-33005
Spacer(For Power Steering Control Valve)
[03.1990 - 12.1995] EXY10 |
90560-33005 |
— | ||
|
44201F
|
44201F
90311-19010 Seal, Oil(For Power Steering Control Valve)[03.1990 - 12.1995] EXY10 |
90311-19010 |
from US $3.84 |
||
|
44201G
|
44201G
90365-19001 Bearing(For Power Steering Control Valve)[03.1990 - 12.1995] EXY10 |
90365-19001 |
from US $20.52 |
||
|
44204
|
44204
44204-10030
Rack Sub-Assy, Power Steering
[03.1990 - 12.1995] EXY10 |
44204-10030 |
— | ||
|
44204A
|
44204A
90301-29005 Ring(For Rack Steering Piston)[03.1990 - 12.1995] EXY10 内側 |
90301-29005 |
US $2.91 |
||
|
44204A
|
44204A
90562-34002 Ring(For Rack Steering Piston)[03.1990 - 12.1995] EXY10 外側 |
90562-34002 |
US $13.83 |
||
|
44205C
|
44205C
44205-10020
Bush Sub-Assy, Power Steering Rack
[03.1990 - 12.1995] EXY10 |
44205-10020 |
— | ||
|
44205D
|
44205D
90301-33004 Ring, O(For Cylinder End Stopper)[03.1990 - 12.1995] EXY10 |
90301-33004 |
US $9.43 |
||
|
44205E
|
44205E
90311-22014 Seal, Oil(For Power Steering Rack Bush)[03.1990 - 12.1995] EXY10 |
90311-22014 |
from US $1.75 |
||
|
44206E
|
44206E
90311-22015 Seal, Oil, No.1(For Power Steering Cylinder Tube)[03.1990 - 12.1995] EXY10 |
90311-22015 |
US $3.93 |
||
|
44206G
|
44206G
44263-16010
Spacer, No.1(For Power Steering Cylinder Tube)
[01.1995 - 12.1995] EXY10 |
44263-16010 |
— | ||
|
44206G
|
44206G
90560-23011
Spacer, No.1(For Power Steering Cylinder Tube)
[03.1990 - 01.1995] EXY10 |
90560-23011 |
— | ||
| replacement | |||||
|
44206G
|
44206G
44263-16010
Spacer, No.1(For Power Steering Cylinder Tube)
[03.1990 - 01.1995] EXY10 |
44263-16010 |
— | ||
|
44210B
|
44210B
90410-05006
Seat, Union(For Power Steering Control Valve)
[03.1990 - 12.1995] EXY10 |
90410-05006 |
— | ||
|
44210E
|
44210E
90311-26003 Seal, Oil(For Power Steering Control Valve)[03.1990 - 12.1995] EXY10 |
90311-26003 |
from US $3.84 |
||
|
44211
|
44211
44022-10020 Housing, Control Valve[03.1990 - 12.1995] EXY10 |
44022-10020 |
US $260.62 |
||
| replacement | |||||
|
44211
|
44211
44022-10040 Housing, Control Valve[03.1990 - 12.1995] EXY10 |
44022-10040 |
US $260.62 |
||
|
44218
|
44218
44218-12020 Gasket, Valve Housing[03.1990 - 12.1995] EXY10 |
44218-12020 |
from US $2.57 |
||
|
44240
|
44240
44240-10040 Housing Assy, Power Steering Rack[03.1990 - 01.1995] EXY10 |
44240-10040 |
US $257.71 |
||
| replacements | |||||
|
44240
|
44240
44240-16070 Housing Assy, Power Steering Rack[03.1990 - 01.1995] EXY10 |
44240-16070 |
US $257.71 |
||
|
44240
|
44240
45504-16050 Guide, Rack(For Steering Gear)[03.1990 - 01.1995] EXY10 |
45504-16050 |
US $21.69 |
||
|
44240
|
44240
44240-16070 Housing Assy, Power Steering Rack[01.1995 - 12.1995] EXY10 |
44240-16070 |
US $257.71 |
||
|
44252B
|
44252B
90363-12009 Bearing(For Power Steering Control Valve Lower)[03.1990 - 12.1995] EXY10 |
90363-12009 |
US $6.29 |
||
|
44253H
|
44253H
90364-22006
Bearing(For Power Steering Control Valve Center)
[03.1990 - 12.1995] EXY10 |
90364-22006 |
— | ||
|
44275
|
44275
44275-16020 Stopper, Cylinder End[03.1990 - 12.1995] EXY10 |
44275-16020 |
US $20.24 |
||
|
44275C
|
44275C
90580-18001 Wire(For Cylinder End Stopper)[03.1990 - 12.1995] EXY10 |
90580-18001 |
US $1.60 |
||
|
44283
|
44283
44283-16010 Cap, Power Steering Rack Housing[03.1990 - 12.1995] EXY10 |
44283-16010 |
US $13.69 |
||
|
44418A
|
44418A
44418-10020 Tube, Steering Right Turn Pressure[03.1990 - 12.1995] EXY10 |
44418-10020 |
US $141.23 |
||
|
44418C
|
44418C
90301-03001 Seat, Union(For Steering Turn Pressure Tube)[03.1990 - 12.1995] EXY10 |
90301-03001 |
US $2.88 |
||
| replacement | |||||
|
44418C
|
44418C
90080-30023 Ring, O(For Steering Turn Pressure Tube)[03.1990 - 12.1995] EXY10 |
90080-30023 |
US $6.41 |
||
|
44419A
|
44419A
44419-10020 Tube, Steering Left Turn Pressure[03.1990 - 12.1995] EXY10 |
44419-10020 |
US $17.18 |
||
|
44503F
|
44503F
90214-12002
Washer, Claw(For Power Steering Rack End)
[03.1990 - 12.1995] EXY10 |
90214-12002 |
— | ||
|
44523H
|
44523H
90501-23075
Spring(For Power Steering Rack Guide)
[09.1992 - 12.1995] EXY10 |
90501-23075 |
— | ||
|
44523H
|
44523H
90501-23097
Spring(For Power Steering Rack Guide)
[03.1990 - 09.1992] EXY10 |
90501-23097 |
— | ||
|
44535C
|
44535C
90460-49002 Clamp(For Power Steering Rack Boot)[01.1995 - 12.1995] EXY10 |
90460-49002 |
US $4.80 |
||
|
44535C
|
44535C
90460-49003 Clamp(For Power Steering Rack Boot)[03.1990 - 01.1995] EXY10 |
90460-49003 |
US $5.92 |
||
|
44535D
|
44535D
90467-17021 Clamp Or Clip, Hose(For Water By-Pass Hose)[01.1995 - 12.1995] EXY10 |
90467-17021 |
US $1.92 |
||
|
44535D
|
44535D
90467-18003 Clip Or Clamp(For Ventilation Hose)[03.1990 - 01.1995] EXY10 |
90467-18003 |
from US $1.92 |
||
|
45503E
|
45503E
45503-19155
End Sub-Assy, Steering Rack
[03.1990 - 01.1995] EXY10 |
45503-19155 |
— | ||
| replacement | |||||
|
45503E
|
45503E
45503-19195 End Sub-Assy, Steering Rack[03.1990 - 01.1995] EXY10 |
45503-19195 |
US $74.95 |
||
|
45503E
|
45503E
45503-19185 End Sub-Assy, Steering Rack[01.1995 - 12.1995] EXY10 |
45503-19185 |
US $87.36 |
||
|
45523
|
45523
45504-16050 Guide, Rack(For Steering Gear)[01.1995 - 12.1995] EXY10 |
45504-16050 |
US $21.69 |
||
|
45523
|
45523
45523-10030
Guide, Rack(For Power Steering)
[09.1992 - 01.1995] EXY10 |
45523-10030 |
— | ||
|
45523
|
45523
45523-10040 Guide, Rack(For Steering Gear)[03.1990 - 09.1992] EXY10 |
45523-10040 |
US $21.69 |
||
| replacement | |||||
|
45523
|
45523
45523-10041 Guide, Rack(For Steering Gear)RACK(FOR STEERING GEAR) [03.1990 - 09.1992] EXY10 |
45523-10041 |
US $21.84 |
||
|
45524
|
45524
45524-10030 Cap, Rack Guide Spring(For Power Steering)[03.1990 - 01.1995] EXY10 |
45524-10030 |
US $6.99 |
||
|
45524
|
45524
45524-17020
Cap, Steering Rack Guide Spring
[01.1995 - 12.1995] EXY10 |
45524-17020 |
— | ||
|
45524A
|
45524A
90179-30002 Nut(For Power Steering Rack Guide Cap)[03.1990 - 12.1995] EXY10 |
90179-30002 |
US $2.62 |
||
|
45535
|
45535
45535-10050
Boot, Steering Rack, No.1
[03.1990 - 01.1995] EXY10 |
45535-10050 |
— | ||
| replacement | |||||
|
45535
|
45535
45535-10051 Boot, Steering Rack, No.1[03.1990 - 01.1995] EXY10 |
45535-10051 |
US $25.54 |
||
|
45535
|
45535
45535-16030 Boot, Steering Rack, No.1[01.1995 - 12.1995] EXY10 |
45535-16030 |
US $16.89 |
||
|
45536
|
45536
45535-10050
Boot, Steering Rack, No.1
[03.1990 - 01.1995] EXY10 |
45535-10050 |
— | ||
| replacement | |||||
|
45536
|
45536
45535-10051 Boot, Steering Rack, No.1[03.1990 - 01.1995] EXY10 |
45535-10051 |
US $25.54 |
||
|
45536
|
45536
45535-16030 Boot, Steering Rack, No.1[01.1995 - 12.1995] EXY10 |
45535-16030 |
US $16.89 |
||
|
9014930004
|
9014930004
90149-30004 Screw(For Steering Rack Boot Clamp) |
90149-30004 |
US $1.76 |
||
|
9017910048
|
9017910048
90179-10048 Nut, Lock(For Power Steering Control Valve) |
90179-10048 |
US $4.19 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
