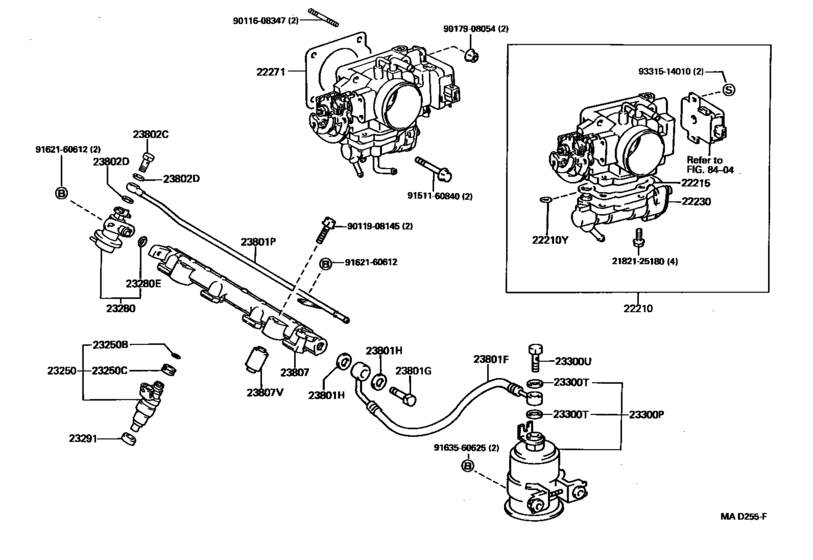

Fuel Injection System ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-11140 Body Assy, Throttle[03.1990 - 06.1992] 5EFHE..EXY10..MTM |
22210-11140 |
US $947.86 |
||
|
22210
|
22210
22210-11360 Body Assy, Throttle[06.1992 - 12.1995] 5EFHE..EXY10..MTM |
22210-11360 |
US $952.22 |
||
|
22210Y
|
22210Y
96711-19009 Ring, O(For Oil Level Gage Guide)[03.1990 - 12.1995] 5EFHE..EXY10 |
96711-19009 |
from US $1.92 |
||
|
22215
|
22215
22215-11110 Gasket, Throttle Body Cover[03.1990 - 12.1995] 5EFHE..EXY10 |
22215-11110 |
from US $4.78 |
||
|
22230
|
22230
22230-11100
Valve Assy, Auxiliary Air
[03.1990 - 12.1995] 5EFHE..EXY10..MTM |
22230-11100 |
— | ||
|
22271
|
22271
22271-11020
Gasket, Throttle Body
[03.1990 - 07.1994] 5EFHE..EXY10 |
22271-11020 |
— | ||
| replacement | |||||
|
22271
|
22271
22271-11030 Gasket, Throttle Body[03.1990 - 07.1994] 5EFHE..EXY10 |
22271-11030 |
from US $2.34 |
||
|
22271
|
22271
22271-11030 Gasket, Throttle Body[07.1994 - 12.1995] 5EFHE..EXY10 |
22271-11030 |
from US $2.34 |
||
|
23250
|
23250
23209-11070 Injector Assy, Fuel[03.1990 - 12.1995] 5EFHE..EXY10 |
23209-11070 |
US $276.64 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[03.1990 - 12.1995] 5EFHE..EXY10 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[03.1990 - 12.1995] 5EFHE..EXY10 |
90480-13005 |
from US $2.50 |
||
|
23280
|
23280
23280-11040
Regulator Assy, Fuel Pressure
[03.1990 - 12.1995] 5EFHE..EXY10 |
23280-11040 |
— | ||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[03.1990 - 12.1995] 5EFHE..EXY10 |
90301-07001 |
from US $2.93 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[03.1990 - 12.1995] 5EFHE..EXY10 |
23291-41010 |
from US $2.77 |
||
|
23300P
|
23300P
23300-19255
Filter, Fuel(For Efi)
[03.1990 - 05.1994] 5EFHE..EXY10 |
23300-19255 |
— | ||
| replacement | |||||
|
23300P
|
23300P
23300-19395 Filter, Fuel(For Efi)[03.1990 - 05.1994] 5EFHE..EXY10 |
23300-19395 |
US $80.72 |
||
|
23300P
|
23300P
23300-19395 Filter, Fuel(For Efi)[05.1994 - 12.1995] 5EFHE..EXY10 |
23300-19395 |
US $80.72 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[03.1990 - 05.1994] 5EFHE..EXY10 |
90430-12005 |
from US $0.76 |
||
|
23300T
|
23300T
90430-12026 Gasket[05.1994 - 12.1995] 5EFHE..EXY10 |
90430-12026 |
from US $0.94 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[03.1990 - 12.1995] 5EFHE..EXY10 |
90401-12097 |
from US $3.08 |
||
|
23801F
|
23801F
90923-01372 Hose, Fuel, No.1[03.1990 - 12.1995] 5EFHE..EXY10 |
90923-01372 |
US $29.85 |
||
| replacements | |||||
|
23801F
|
23801F
23271-11300
Hose, Fuel, No.1
[03.1990 - 12.1995] 5EFHE..EXY10 |
23271-11300 |
— | ||
|
23801F
|
23801F
23279-74010 Gasket(For Fuel Pump Hose)[03.1990 - 12.1995] 5EFHE..EXY10 |
23279-74010 |
from US $1.11 |
||
|
23801F
|
23801F
90401-12033 Bolt, Union(For Fuel Pipe)[03.1990 - 12.1995] 5EFHE..EXY10 |
90401-12033 |
US $7.34 |
||
|
23801G
|
23801G
90401-12029 Bolt, Union(For Fuel Pipe Or Hose Set)[03.1990 - 11.1995] 5EFHE..EXY10 |
90401-12029 |
from US $8.04 |
||
|
23801G
|
23801G
90401-12033 Bolt, Union(For Fuel Pipe)[11.1995 - 12.1995] 5EFHE..EXY10 |
90401-12033 |
US $7.34 |
||
|
23801H
|
23801H
23279-74010 Gasket(For Fuel Pump Hose)[11.1995 - 12.1995] 5EFHE..EXY10 |
23279-74010 |
from US $1.11 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[03.1990 - 11.1990] 5EFHE..EXY10 |
90430-12005 |
from US $0.76 |
||
|
23801H
|
23801H
90430-12026 Gasket[11.1990 - 11.1995] 5EFHE..EXY10 |
90430-12026 |
from US $0.94 |
||
|
23801P
|
23801P
23801-11050 Pipe Sub-Assy, Fuel, No.1[03.1990 - 08.1990] 5EFHE..EXY10 |
23801-11050 |
US $35.82 |
||
|
23801P
|
23801P
23801-11070 Pipe Sub-Assy, Fuel, No.1[08.1990 - 12.1995] 5EFHE..EXY10 |
23801-11070 |
US $28.25 |
||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[05.1993 - 12.1995] 5EFHE..EXY10 |
90401-08004 |
US $3.14 |
||
|
23802C
|
23802C
90401-08010
Bolt, Union(For Fuel Pipe No.2)
[03.1990 - 05.1993] 5EFHE..EXY10 |
90401-08010 |
— | ||
| replacement | |||||
|
23802C
|
23802C
90401-08004 Bolt Union(For Oil Jet)[03.1990 - 05.1993] 5EFHE..EXY10 |
90401-08004 |
US $3.14 |
||
|
23802D
|
23802D
90430-08005 Gasket[03.1990 - 11.1990] 5EFHE..EXY10 |
90430-08005 |
US $2.24 |
||
|
23802D
|
23802D
90430-08012 Gasket[11.1990 - 05.1993] 5EFHE..EXY10 |
90430-08012 |
US $1.92 |
||
|
23802D
|
23802D
90430-08014 Gasket(For Oil Filter Outlet Pipe)[05.1993 - 12.1995] 5EFHE..EXY10 |
90430-08014 |
from US $0.86 |
||
|
23807
|
23807
23814-11030 Pipe Sub-Assy, Fuel Delivery[03.1990 - 12.1995] 5EFHE..EXY10 |
23814-11030 |
US $132.50 |
||
|
23807V
|
23807V
23890-11010 Spacer, No.1(For Delivery Pipe)[03.1990 - 12.1995] 5EFHE..EXY10 |
23890-11010 |
US $9.90 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $3.52 |
||
|
9011608347
|
9011608347
90116-08347 New Genuine Part |
90116-08347 |
US $1.31 |
||
|
9011908145
|
9011908145
90119-08145 Bolt(For Front Disc Brake Cylinder) |
90119-08145 |
US $3.32 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.60 |
||
|
9151160840
|
9151160840
91511-60840
Bolt(For Alternator)
|
91511-60840 |
— | ||
| replacement | |||||
|
9151160840
|
9151160840
91511-J0840 Bolt(For Alternator) |
91511-J0840 |
from US $2.88 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9163560625
|
9163560625
91635-60625
Screw(For Steering Column Tube)
|
91635-60625 |
— | ||
| replacement | |||||
|
9163560625
|
9163560625
91631-60622 Screw |
91631-60622 |
US $1.12 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.82 |
||
