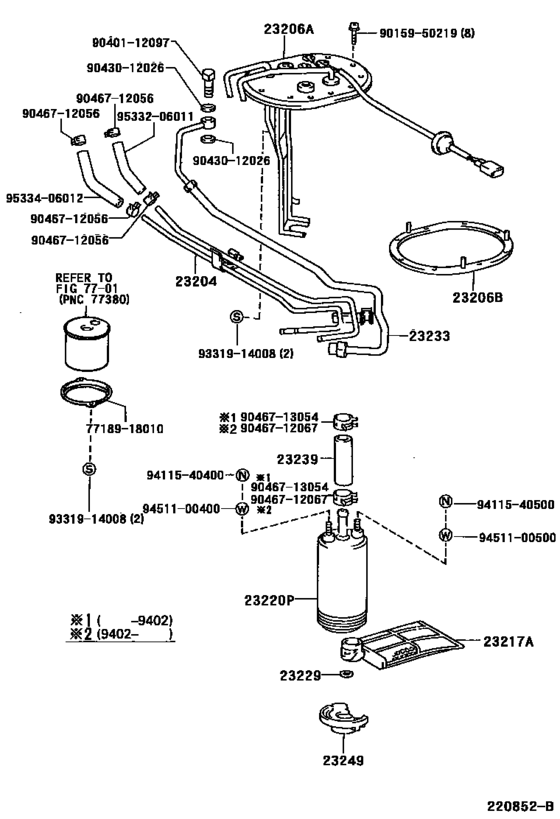

Fuel Injection System ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23204
|
23204
23204-11120 Tube Sub-Assy, Fuel Pump Return[03.1990 - 12.1995] 5EFHE..EXY10 |
23204-11120 |
US $44.70 |
||
|
23206A
|
23206A
23206-11120
Bracket, Fuel Pump
[03.1990 - 12.1995] 5EFHE..EXY10 |
23206-11120 |
— | ||
|
23206B
|
23206B
77169-18010
Gasket, Fuel Pump Bracket
[03.1990 - 12.1995] 5EFHE..EXY10 |
77169-18010 |
— | ||
|
23217A
|
23217A
23217-11010
Filter, Fuel Pump
[03.1990 - 04.1992] 5EFHE..EXY10 |
23217-11010 |
— | ||
|
23217A
|
23217A
23217-61010
Filter, Fuel Pump
[04.1992 - 12.1995] 5EFHE..EXY10 |
23217-61010 |
— | ||
|
23220P
|
23220P
23220-43070 Pump Assy, Fuel[03.1990 - 12.1995] 5EFHE..EXY10 |
23220-43070 |
US $534.80 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[03.1990 - 12.1995] 5EFHE..EXY10 |
23229-16010 |
from US $0.84 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[03.1990 - 12.1995] 5EFHE..EXY10 |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23091-11060
Hose, Fuel Pump
[03.1990 - 11.1991] 5EFHE..EXY10 |
23091-11060 |
— | ||
| replacement | |||||
|
23233
|
23233
23091-11070 Hose, Fuel Pump[03.1990 - 11.1991] 5EFHE..EXY10 |
23091-11070 |
US $115.02 |
||
|
23233
|
23233
23091-11070 Hose, Fuel Pump[03.1990 - 11.1991] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
23091-11070 |
US $115.02 |
||
|
23239
|
23239
23239-11010 Hose, Fuel Pump[02.1994 - 12.1995] 5EFHE..EXY10 |
23239-11010 |
US $10.88 |
||
|
23239
|
23239
23239-63010 Hose, Fuel Pump[03.1990 - 02.1994] 5EFHE..EXY10 |
23239-63010 |
from US $2.09 |
||
|
23249
|
23249
23249-74150 Rubber, Cushion(For Fuel Pump)[03.1990 - 12.1995] 5EFHE..EXY10 |
23249-74150 |
US $17.63 |
||
|
7718918010
|
7718918010
77189-18010 Retainer, Fuel Check Valve |
77189-18010 |
US $3.93 |
||
|
9015950219
|
9015950219
90159-50219 BOLT |
90159-50219 |
from US $0.66 |
||
| replacement | |||||
|
9015950219
|
9015950219
90159-A0057 New Genuine Part |
90159-A0057 |
US $1.73 |
||
|
9040112097
|
9040112097
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe) |
90401-12097 |
from US $3.08 |
||
|
9043012026
|
9043012026
90430-12026 Gasket |
90430-12026 |
from US $0.94 |
||
|
9046712056
|
9046712056
90467-12056 Clamp Or Clip(For Throttle Body Hose) |
90467-12056 |
from US $0.80 |
||
| replacement | |||||
|
9046712056
|
9046712056
90466-T0048
New Genuine Part
|
90466-T0048 |
— | ||
|
9046712067
|
9046712067
90467-12067 Clip(For Fuel Pump Hose) |
90467-12067 |
from US $1.27 |
||
|
9046713054
|
9046713054
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
9046713054
|
9046713054
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.88 |
||
|
9411540400
|
9411540400
94115-40400
NUT
|
94115-40400 |
— | ||
| replacement | |||||
|
9411540400
|
9411540400
90076-01001 NUT |
90076-01001 |
US $2.08 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.76 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9533206011
|
9533206011
95332-06011
Hose, Fuel, No.1 (For Main Tube, No.1)
|
95332-06011 |
— | ||
| replacement | |||||
|
9533206011
|
9533206011
95337-06020 Hose, Differential Pressure Control |
95337-06020 |
from US $9.12 |
||
|
9533406012
|
9533406012
95334-06012 Hose, Fuel(For Fuel Pipe To Pressure Regulator) |
95334-06012 |
US $4.48 |
||
