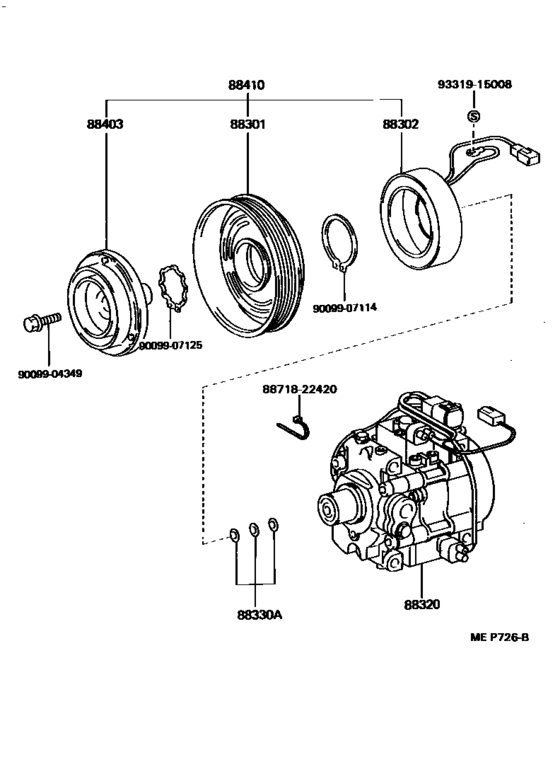

Heating & Air Conditioning - Compressor ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-10140
Rotor Sub-Assy, Magnet Clutch
[03.1990 - 11.1993] EXY10 |
88412-10140 |
— | ||
|
88301
|
88301
88412-18180
Rotor Sub-Assy, Magnet Clutch
[11.1993 - 12.1995] EXY10 |
88412-18180 |
— | ||
|
88302
|
88302
88411-1A040
Stator Sub-Assy, Magnet Clutch
[11.1993 - 12.1995] EXY10 |
88411-1A040 |
— | ||
|
88302
|
88302
88411-60030
Stator Sub-Assy, Magnet Clutch
[03.1990 - 11.1993] EXY10 |
88411-60030 |
— | ||
|
88320
|
88320
88320-10230
Compressor Assy, Cooler
[03.1990 - 06.1992] EXY10 |
88320-10230 |
— | ||
|
88320
|
88320
88320-10420
Compressor Assy, Cooler
[11.1993 - 12.1995] EXY10 |
88320-10420 |
— | ||
|
88320
|
88320
88320-12810
Compressor Assy, Cooler
[06.1992 - 11.1993] EXY10 |
88320-12810 |
— | ||
|
88330A
|
88330A
88335-14020 Washer[03.1990 - 12.1995] EXY10 |
88335-14020 |
from US $1.25 |
||
|
88403
|
88403
88403-16011 Hub Sub-Assy, Magnet Clutch[03.1990 - 11.1993] EXY10 |
88403-16011 |
US $82.47 |
||
|
88403
|
88403
88403-1A010
Hub Sub-Assy, Magnet Clutch
[11.1993 - 12.1995] EXY10 |
88403-1A010 |
— | ||
|
88410
|
88410
88410-10200 Clutch Assy, Magnet[03.1990 - 11.1993] EXY10 |
88410-10200 |
US $554.74 |
||
|
88410
|
88410
88410-18010 Clutch Assy, Magnet[11.1993 - 12.1995] EXY10 |
88410-18010 |
US $554.74 |
||
|
8871822420
|
8871822420
88718-22420
Pipe, Cooler Refrigerant Suction, No.2
|
88718-22420 |
— | ||
|
9009904349
|
9009904349
90099-04349 Bolt, Magnet Clutch Setting |
90099-04349 |
from US $0.70 |
||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.15 |
||
|
9009907125
|
9009907125
90099-07125 Ring, Snap |
90099-07125 |
from US $1.11 |
||
|
9331915008
|
9331915008
93319-15008 SCREW |
93319-15008 |
US $2.72 |
