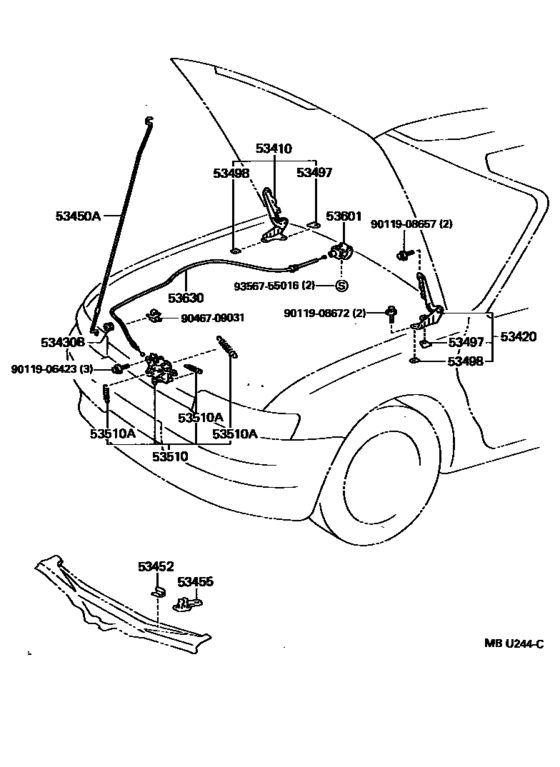

Hood Lock & Hinge ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53410
|
53410
53410-10030 Hinge Assy, Hood, Rh[03.1990 - 12.1995] EXY10 |
53410-10030 |
US $29.27 |
||
|
53420
|
53420
53420-10030
Hinge Assy, Hood, Lh
[03.1990 - 12.1995] EXY10 |
53420-10030 |
— | ||
|
53430B
|
53430B
90480-15012 Grommet(For Hood Support)[03.1990 - 12.1995] EXY10 |
90480-15012 |
from US $3.20 |
||
|
53450A
|
53450A
53440-18010 Support Assy, Hood, Lh[03.1990 - 12.1995] EXY10 |
53440-18010 |
US $22.71 |
||
|
53452
|
53452
53452-18010
Holder, Hood Stay
[03.1990 - 12.1995] EXY10 |
53452-18010 |
— | ||
|
53455
|
53455
53455-12040 Clamp, Hood Support Rod[03.1990 - 12.1995] EXY10 |
53455-12040 |
from US $2.65 |
||
|
53497
|
53497
53497-12011 Pad, Hood Hinge, No.1[03.1990 - 12.1995] EXY10 厚さ＝０．５ |
53497-12011 |
US $1.92 |
||
|
53498
|
53498
53498-12011 Pad, Hood Hinge, No.2[03.1990 - 12.1995] EXY10 |
53498-12011 |
US $1.92 |
||
|
53510
|
53510
53510-18010 Lock Assy, Hood[03.1990 - 12.1995] EXY10 |
53510-18010 |
US $42.95 |
||
|
53510A
|
53510A
90506-09039
Spring, Tension(For Hood Lock)
[03.1990 - 12.1995] EXY10 線径＝０．９，コイル巻数＝２１．２５,WD=0.9,CW=21.25 |
90506-09039 |
— | ||
|
53510A
|
53510A
90506-12064 Spring, Tension(For Hood Lock)[03.1990 - 12.1995] EXY10 線径＝１．２，コイル巻数＝８．５,WD=1.2,CW=8.5 |
90506-12064 |
US $1.89 |
||
|
53510A
|
53510A
90506-18067 Spring, Tension(For Hood Lock)[03.1990 - 12.1995] EXY10 線径＝１．８，コイル巻数＝１３,WD=1.8,CW=13 |
90506-18067 |
US $1.44 |
||
|
53601
|
53601
53601-16020-B0 Lever Sub-Assy, Hood Lock Control[02.1991 - 06.1992] EXY10 BLUE GRAY,TRIM1# |
53601-16020-B0 |
US $30.43 |
||
| replacement | |||||
|
53601
|
53601
53601-16020-22 Lever Sub-Assy, Hood Lock Control (black color)[02.1991 - 06.1992] EXY10 BLUE GRAY,TRIM1# |
53601-16020-22 |
from US $32.15 |
||
|
53601
|
53601
53601-16020-B1 Lever Sub-Assy, Hood Lock Control[06.1992 - 12.1995] EXY10 LIGHT GRAY,TRIM1# |
53601-16020-B1 |
US $73.88 |
||
| replacement | |||||
|
53601
|
53601
53601-16020-22 Lever Sub-Assy, Hood Lock Control (black color)[06.1992 - 12.1995] EXY10 LIGHT GRAY,TRIM1# |
53601-16020-22 |
from US $32.15 |
||
|
53601
|
53601
53601-16020-E0 Lever Sub-Assy, Hood Lock Control[02.1991 - 06.1992] EXY10 GRAIGE,TRIM4# |
53601-16020-E0 |
US $30.43 |
||
| replacement | |||||
|
53601
|
53601
53601-16020-22 Lever Sub-Assy, Hood Lock Control (black color)[02.1991 - 06.1992] EXY10 GRAIGE,TRIM4# |
53601-16020-22 |
from US $32.15 |
||
|
53601
|
53601
53601-18010-03 Lever Sub-Assy, Hood Lock Control[03.1990 - 02.1991] EXY10 BLUE GRAY,TRIM1# |
53601-18010-03 |
US $31.74 |
||
| replacement | |||||
|
53601
|
53601
53601-16020-22 Lever Sub-Assy, Hood Lock Control (black color)[03.1990 - 02.1991] EXY10 BLUE GRAY,TRIM1# |
53601-16020-22 |
from US $32.15 |
||
|
53601
|
53601
53601-18010-05 Lever Sub-Assy, Hood Lock Control[03.1990 - 02.1991] EXY10 GRAIGE,TRIM4# |
53601-18010-05 |
US $31.74 |
||
| replacement | |||||
|
53601
|
53601
53601-16020-22 Lever Sub-Assy, Hood Lock Control (black color)[03.1990 - 02.1991] EXY10 GRAIGE,TRIM4# |
53601-16020-22 |
from US $32.15 |
||
|
53630
|
53630
53630-18010 Cable Assy, Hood Lock Control[03.1990 - 12.1995] EXY10 |
53630-18010 |
US $21.84 |
||
|
9011906423
|
9011906423
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.12 |
||
|
9011908657
|
9011908657
90119-08657 New Genuine Part |
90119-08657 |
US $1.44 |
||
|
9011908672
|
9011908672
90119-08672 New Genuine Part |
90119-08672 |
US $2.33 |
||
| replacement | |||||
|
9011908672
|
9011908672
90119-08716 BOLT WWASHER |
90119-08716 |
from US $0.88 |
||
|
9046709031
|
9046709031
90467-09031 Clamp(For Hood Lock Control Cable) |
90467-09031 |
US $3.20 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.53 |
||
