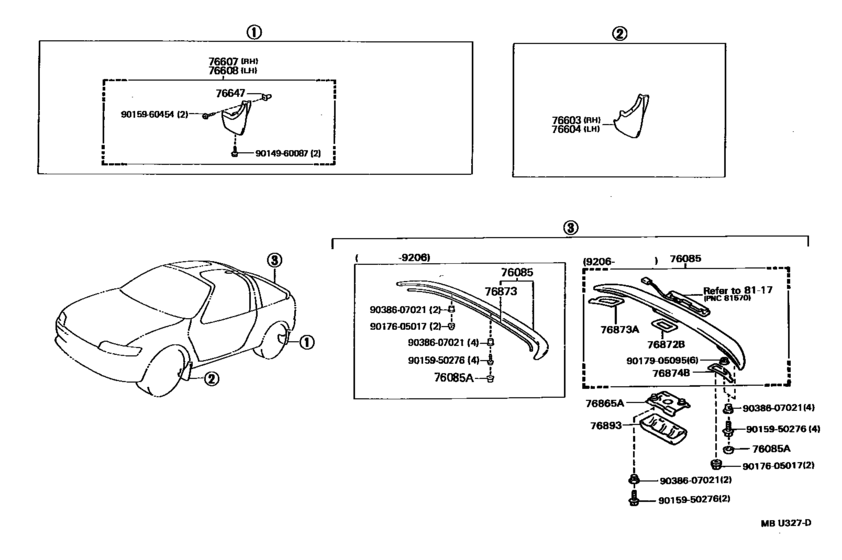

Mudguard & Spoiler ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
76085
|
76085
76085-18010 Spoiler Sub-Assy, Rear[03.1990 - 06.1992] EXY10 |
76085-18010 |
US $845.94 |
||
|
76085
|
76085
76085-18011-B1 Spoiler Sub-Assy, Rear[06.1992 - 12.1995] EXY10 SILVER O.P.M.,189 |
76085-18011-B1 |
US $845.94 |
||
| replacement | |||||
|
76085
|
76085
76085-18900 Spoiler Sub-Assy, Rear[06.1992 - 12.1995] EXY10 SILVER O.P.M.,189 |
76085-18900 |
US $678.50 |
||
|
76085
|
76085
76085-18011-C0 Spoiler Sub-Assy, Rear[06.1992 - 12.1995] EXY10 BLACK,202 |
76085-18011-C0 |
US $845.94 |
||
|
76085
|
76085
76085-18011-D0 Spoiler Sub-Assy, Rear[06.1992 - 12.1995] EXY10 RED,3E6 |
76085-18011-D0 |
US $845.94 |
||
|
76085
|
76085
76085-18011-H0 Spoiler Sub-Assy, Rear[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
76085-18011-H0 |
US $845.94 |
||
|
76085A
|
76085A
90339-10002-01 Cap(For Front Door Trim Board)[03.1990 - 06.1992] EXY10 BLACK,TRIM1#,4# |
90339-10002-01 |
US $2.33 |
||
| replacement | |||||
|
76085A
|
76085A
90339-10002-C0 Cap(For Console)[03.1990 - 06.1992] EXY10 BLACK,TRIM1#,4# |
90339-10002-C0 |
US $2.72 |
||
|
76603
|
76603
76603-18010-02 Mudguard Sub-Assy, Front Fender, Rh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
76603-18010-02 |
US $90.27 |
||
|
76603
|
76603
76603-18010-03 Mudguard Sub-Assy, Front Fender, Rh[03.1990 - 05.1991] EXY10 DARK GRAY M,188 |
76603-18010-03 |
US $90.27 |
||
|
76603
|
76603
76603-18010-04 Mudguard Sub-Assy, Front Fender, Rh[03.1990 - 06.1992] EXY10 MED BLUE M,8H7 |
76603-18010-04 |
US $90.27 |
||
|
76603
|
76603
76603-18010-07 Mudguard Sub-Assy, Front Fender, Rh[03.1990 - 05.1991] EXY10 L. TURQUOISE M,743 |
76603-18010-07 |
US $90.27 |
||
|
76603
|
76603
76603-18010-09 Mudguard Sub-Assy, Front Fender, Rh[03.1990 - 06.1992] EXY10 GRENISH YELLOW M,569 |
76603-18010-09 |
US $90.27 |
||
|
76603
|
76603
76603-18010-13 Mudguard Sub-Assy, Front Fender, Rh[03.1990 - 12.1995] EXY10 L. SILVER,189 |
76603-18010-13 |
US $90.27 |
||
|
76603
|
76603
76603-18010-22 Mudguard Sub-Assy, Front Fender, Rh[05.1991 - 12.1995] EXY10 BLACK,202 |
76603-18010-22 |
US $90.27 |
||
|
76603
|
76603
76603-18010-36 Mudguard Sub-Assy, Front Fender, Rh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
76603-18010-36 |
US $90.27 |
||
|
76603
|
76603
76603-18010-D0 Mudguard Sub-Assy, Front Fender, Rh[06.1992 - 12.1995] EXY10 RED,3E6 |
76603-18010-D0 |
US $90.27 |
||
|
76603
|
76603
76603-18010-H0 Mudguard Sub-Assy, Front Fender, Rh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
76603-18010-H0 |
US $90.27 |
||
|
76603
|
76603
76603-18010-J0
Mudguard Sub-Assy, Front Fender, Rh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
76603-18010-J0 |
— | ||
|
76604
|
76604
76604-18010-02 Mudguard Sub-Assy, Front Fender, Lh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
76604-18010-02 |
US $90.27 |
||
|
76604
|
76604
76604-18010-03 Mudguard Sub-Assy, Front Fender, Lh[03.1990 - 05.1991] EXY10 DARK GRAY M,188 |
76604-18010-03 |
US $90.27 |
||
|
76604
|
76604
76604-18010-04 Mudguard Sub-Assy, Front Fender, Lh[03.1990 - 06.1992] EXY10 MED BLUE M,8H7 |
76604-18010-04 |
US $90.27 |
||
|
76604
|
76604
76604-18010-07 Mudguard Sub-Assy, Front Fender, Lh[03.1990 - 05.1991] EXY10 L. TURQUOISE M,743 |
76604-18010-07 |
US $90.27 |
||
|
76604
|
76604
76604-18010-09 Mudguard Sub-Assy, Front Fender, Lh[03.1990 - 06.1992] EXY10 GRENISH YELLOW M,569 |
76604-18010-09 |
US $90.27 |
||
|
76604
|
76604
76604-18010-13 Mudguard Sub-Assy, Front Fender, Lh[03.1990 - 12.1995] EXY10 L. SILVER,189 |
76604-18010-13 |
US $90.27 |
||
|
76604
|
76604
76604-18010-22 Mudguard Sub-Assy, Front Fender, Lh[05.1991 - 12.1995] EXY10 BLACK,202 |
76604-18010-22 |
US $90.27 |
||
|
76604
|
76604
76604-18010-36 Mudguard Sub-Assy, Front Fender, Lh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
76604-18010-36 |
US $90.27 |
||
|
76604
|
76604
76604-18010-D0 Mudguard Sub-Assy, Front Fender, Lh[06.1992 - 12.1995] EXY10 RED,3E6 |
76604-18010-D0 |
US $90.27 |
||
|
76604
|
76604
76604-18010-H0 Mudguard Sub-Assy, Front Fender, Lh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
76604-18010-H0 |
US $90.27 |
||
|
76604
|
76604
76604-18010-J0
Mudguard Sub-Assy, Front Fender, Lh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
76604-18010-J0 |
— | ||
|
76607
|
76607
76607-19575-02 Mudguard Sub-Assy, Quarter Panel, Rear Rh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
76607-19575-02 |
US $58.82 |
||
|
76607
|
76607
76607-19575-03 Mudguard Sub-Assy, Quarter Panel, Rear Rh[03.1990 - 05.1991] EXY10 DARK GRAY M,188 |
76607-19575-03 |
US $58.82 |
||
|
76607
|
76607
76607-19575-04 Mudguard Sub-Assy, Quarter Panel, Rear Rh[03.1990 - 06.1992] EXY10 MED BLUE M,8H7 |
76607-19575-04 |
US $58.82 |
||
|
76607
|
76607
76607-19575-07 Mudguard Sub-Assy, Quarter Panel, Rear Rh[03.1990 - 05.1991] EXY10 L. TURQUOISE M,743 |
76607-19575-07 |
US $58.82 |
||
|
76607
|
76607
76607-19575-09
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[03.1990 - 06.1992] EXY10 GRENISH YELLOW M,569 |
76607-19575-09 |
— | ||
|
76607
|
76607
76607-19575-13 Mudguard Sub-Assy, Quarter Panel, Rear Rh[03.1990 - 12.1995] EXY10 L. SILVER,189 |
76607-19575-13 |
US $49.50 |
||
|
76607
|
76607
76607-19575-C0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[05.1991 - 12.1995] EXY10 BLACK,202 |
76607-19575-C0 |
US $58.82 |
||
|
76607
|
76607
76607-19575-D0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
76607-19575-D0 |
US $58.82 |
||
|
76607
|
76607
76607-19575-D1 Mudguard Sub-Assy, Quarter Panel, Rear Rh[06.1992 - 12.1995] EXY10 RED,3E6 |
76607-19575-D1 |
US $58.82 |
||
|
76607
|
76607
76607-19575-H0 Mudguard Sub-Assy, Quarter Panel, Rear Rh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
76607-19575-H0 |
US $58.82 |
||
|
76607
|
76607
76607-19575-J0
Mudguard Sub-Assy, Quarter Panel, Rear Rh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
76607-19575-J0 |
— | ||
|
76608
|
76608
76608-19575-02 Mudguard Sub-Assy, Quarter Panel, Rear Lh[03.1990 - 05.1991] EXY10 WINE RED MICA,3J8 |
76608-19575-02 |
US $58.82 |
||
|
76608
|
76608
76608-19575-03 Mudguard Sub-Assy, Quarter Panel, Rear Lh[03.1990 - 05.1991] EXY10 DARK GRAY M,188 |
76608-19575-03 |
US $58.82 |
||
|
76608
|
76608
76608-19575-04 Mudguard Sub-Assy, Quarter Panel, Rear Lh[03.1990 - 06.1992] EXY10 MED BLUE M,8H7 |
76608-19575-04 |
US $58.82 |
||
|
76608
|
76608
76608-19575-07 Mudguard Sub-Assy, Quarter Panel, Rear Lh[03.1990 - 05.1991] EXY10 L. TURQUOISE M,743 |
76608-19575-07 |
US $58.82 |
||
|
76608
|
76608
76608-19575-09
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[03.1990 - 06.1992] EXY10 GRNISH YELLOW M,569 |
76608-19575-09 |
— | ||
|
76608
|
76608
76608-19575-13 Mudguard Sub-Assy, Quarter Panel, Rear Lh[03.1990 - 12.1995] EXY10 L. SILVER,189 |
76608-19575-13 |
US $49.50 |
||
|
76608
|
76608
76608-19575-C0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[05.1991 - 12.1995] EXY10 BLACK,202 |
76608-19575-C0 |
US $58.82 |
||
|
76608
|
76608
76608-19575-D0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[05.1991 - 06.1992] EXY10 ORANGE,3K6 |
76608-19575-D0 |
US $58.82 |
||
|
76608
|
76608
76608-19575-D1 Mudguard Sub-Assy, Quarter Panel, Rear Lh[06.1992 - 12.1995] EXY10 RED,3E6 |
76608-19575-D1 |
US $58.82 |
||
|
76608
|
76608
76608-19575-H0 Mudguard Sub-Assy, Quarter Panel, Rear Lh[06.1992 - 12.1995] EXY10 TURQUOISE M.M,746 |
76608-19575-H0 |
US $49.50 |
||
|
76608
|
76608
76608-19575-J0
Mudguard Sub-Assy, Quarter Panel, Rear Lh
[05.1991 - 06.1992] EXY10 LT.BLUE M,8G6 |
76608-19575-J0 |
— | ||
|
76647
|
76647
76647-18010
Retainer, Quarter Panel Rear Mudguard
[03.1990 - 12.1995] EXY10 |
76647-18010 |
— | ||
|
76865A
|
76865A
76865-18020 Retainer, Side Mudguard[06.1992 - 12.1995] EXY10 |
76865-18020 |
US $6.70 |
||
|
76872B
|
76872B
76872-18011 Protector, Rear Spoiler, Center[06.1992 - 12.1995] EXY10 |
76872-18011 |
US $2.77 |
||
|
76873
|
76873
76873-18010 Protector, Rear Spoiler, No.2[08.1990 - 06.1992] EXY10 |
76873-18010 |
US $18.64 |
||
|
76873A
|
76873A
76873-18011 Protector, Rear Spoiler, Rh[06.1992 - 12.1995] EXY10 |
76873-18011 |
US $4.66 |
||
|
76874B
|
76874B
76874-18010 Protector, Rear Spoiler, Lh[06.1992 - 12.1995] EXY10 |
76874-18010 |
US $4.66 |
||
|
76893
|
76893
76893-18010
Cover, Rear Spoiler, No.1
[06.1992 - 12.1995] EXY10 |
76893-18010 |
— | ||
|
9014960087
|
9014960087
90149-60087
New Genuine Part
|
90149-60087 |
— | ||
|
9015950276
|
9015950276
90159-50276 New Genuine Part |
90159-50276 |
US $1.60 |
||
|
9015960454
|
9015960454
90159-60454 New Genuine Part |
90159-60454 |
US $0.83 |
||
|
9017605017
|
9017605017
90176-05017 New Genuine Part |
90176-05017 |
US $1.60 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $1.93 |
||
|
9038607021
|
9038607021
90386-07021 New Genuine Part |
90386-07021 |
US $2.48 |
||
