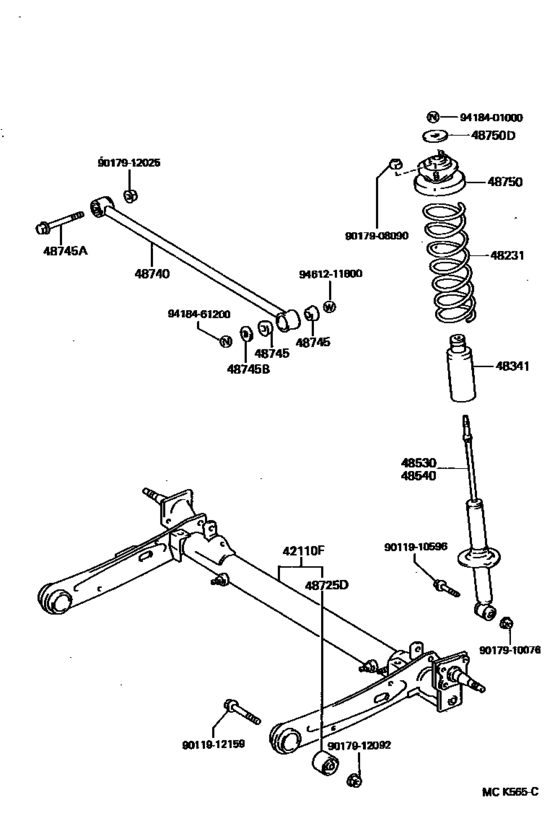

Rear Spring & Shock Absorber ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42110F
|
42110F
42110-18010 Beam Assy, Rear Axle[03.1990 - 12.1995] EXY10 |
42110-18010 |
US $889.62 |
||
| replacement | |||||
|
42110F
|
42110F
42110-10130 Beam Assy, Rear Axle[03.1990 - 12.1995] EXY10 |
42110-10130 |
US $892.53 |
||
|
42110F
|
42110F
42110-18020 Beam Assy, Rear Axle[03.1990 - 12.1995] EXY10 ｱﾘ(*66) |
42110-18020 |
US $889.62 |
||
|
48231
|
48231
48231-10240
Spring, Coil, Rear
[03.1990 - 12.1995] EXY10 |
48231-10240 |
— | ||
|
48341
|
48341
48341-10090
Bumper, Rear Spring
[03.1990 - 06.1992] EXY10 |
48341-10090 |
— | ||
|
48341
|
48341
48341-10120 Bumper, Rear Spring[06.1992 - 12.1995] EXY10 |
48341-10120 |
US $31.16 |
||
|
48530
|
48530
48530-10080
Absorber Assy, Shock, Rear Rh
[08.1990 - 06.1992] EXY10 |
48530-10080 |
— | ||
| replacement | |||||
|
48530
|
48530
48530-10260 Absorber Assy, Shock, Rear Rh[08.1990 - 06.1992] EXY10 |
48530-10260 |
US $110.66 |
||
|
48530
|
48530
48530-18010 Absorber Assy, Shock, Rear Rh[03.1990 - 08.1990] EXY10 |
48530-18010 |
US $106.29 |
||
| replacement | |||||
|
48530
|
48530
48530-18030 Absorber Assy, Shock, Rear Rh[03.1990 - 08.1990] EXY10 |
48530-18030 |
US $110.66 |
||
|
48530
|
48530
48530-18030 Absorber Assy, Shock, Rear Rh[06.1992 - 12.1995] EXY10 |
48530-18030 |
US $110.66 |
||
|
48540
|
48540
48530-10080
Absorber Assy, Shock, Rear Rh
[08.1990 - 06.1992] EXY10 |
48530-10080 |
— | ||
| replacement | |||||
|
48540
|
48540
48530-10260 Absorber Assy, Shock, Rear Rh[08.1990 - 06.1992] EXY10 |
48530-10260 |
US $110.66 |
||
|
48540
|
48540
48530-18010 Absorber Assy, Shock, Rear Rh[03.1990 - 08.1990] EXY10 |
48530-18010 |
US $106.29 |
||
| replacement | |||||
|
48540
|
48540
48530-18030 Absorber Assy, Shock, Rear Rh[03.1990 - 08.1990] EXY10 |
48530-18030 |
US $110.66 |
||
|
48540
|
48540
48530-18030 Absorber Assy, Shock, Rear Rh[06.1992 - 12.1995] EXY10 |
48530-18030 |
US $110.66 |
||
|
48725D
|
48725D
48725-10020
Bush, Rear Suspension Arm, No.3
[03.1990 - 08.1990] EXY10 |
48725-10020 |
— | ||
| replacement | |||||
|
48725D
|
48725D
48725-10040 Bush, Rear Suspension Arm, No.1[03.1990 - 08.1990] EXY10 |
48725-10040 |
US $33.72 |
||
|
48725D
|
48725D
48725-10031
Bush, Rear Suspension Arm, No.1
[08.1990 - 12.1995] EXY10 |
48725-10031 |
— | ||
| replacement | |||||
|
48725D
|
48725D
48725-10040 Bush, Rear Suspension Arm, No.1[08.1990 - 12.1995] EXY10 |
48725-10040 |
US $33.72 |
||
|
48740
|
48740
48740-10020
Rod Assy, Rear Lateral Control
[03.1990 - 12.1995] EXY10 |
48740-10020 |
— | ||
|
48745
|
48745
90385-18015 Bush, Lateral Control Rod[03.1990 - 12.1995] EXY10 |
90385-18015 |
US $4.54 |
||
|
48745A
|
48745A
90105-12070 Bolt(For Rear Suspension Arm)[03.1990 - 12.1995] EXY10 |
90105-12070 |
US $5.76 |
||
|
48745B
|
48745B
90201-12037 Washer, Plate, No.1(For Rear Lateral Control Rod)[03.1990 - 12.1995] EXY10 |
90201-12037 |
US $4.96 |
||
|
48750
|
48750
48750-18010 Support Assy, Rear Suspension[03.1990 - 12.1995] EXY10 |
48750-18010 |
US $60.42 |
||
|
48750D
|
48750D
90948-02082 Retainer, Cushion, No.1(For Rear Shock Absorber)[03.1990 - 12.1995] EXY10 |
90948-02082 |
US $4.66 |
||
|
9011910596
|
9011910596
90119-10596 New Genuine Part |
90119-10596 |
US $10.72 |
||
|
9011912159
|
9011912159
90119-12159 BOLT WWASHER |
90119-12159 |
US $5.82 |
||
|
9017908090
|
9017908090
90179-08090 Nut(For Front Suspension Support) |
90179-08090 |
US $3.20 |
||
|
9017910076
|
9017910076
90179-10076 NUT |
90179-10076 |
US $2.62 |
||
|
9017912025
|
9017912025
90179-12025 Nut (For Rear Axle Carrier) |
90179-12025 |
from US $1.21 |
||
|
9017912092
|
9017912092
90179-12092 Nut(For Rear Suspension Arm) |
90179-12092 |
US $3.49 |
||
|
9418401000
|
9418401000
94184-01000 Nut |
94184-01000 |
from US $1.19 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.13 |
||
|
9461211800
|
9461211800
94612-11800 Washer (For Shift & Select Lever Shaft) |
94612-11800 |
US $3.20 |
||
