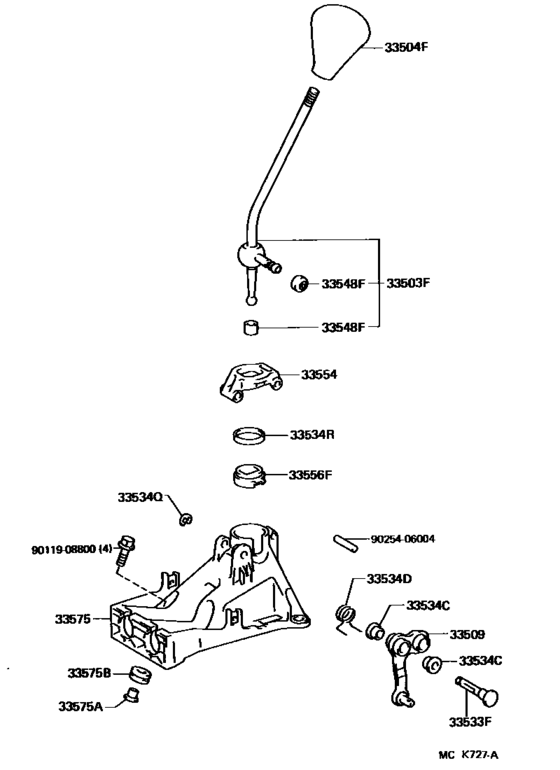

Shift Lever & Retainer ([03.1990 - 11.1991] C155 (9003-9111)MTM) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33503F
|
33503F
33503-18020 Lever Sub-Assy, Shift(For Floor Shift)[03.1990 - 11.1991] EXY10..MTM |
33503-18020 |
US $37.42 |
||
|
33504F
|
33504F
33504-20110-03 Knob Sub-Assy, Shift Lever[06.1992 - 12.1995] EXY10..MTM SHADOW GRAY,TRIM1# |
33504-20110-03 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[06.1992 - 12.1995] EXY10..MTM SHADOW GRAY,TRIM1# |
33504-24010-C1 |
from US $28.42 |
||
|
33504F
|
33504F
33504-20110-15 Knob Sub-Assy, Shift Lever[03.1990 - 06.1992] EXY10..MTM GREIGE,TRIM4# |
33504-20110-15 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[03.1990 - 06.1992] EXY10..MTM GREIGE,TRIM4# |
33504-24010-C1 |
from US $28.42 |
||
|
33504F
|
33504F
33504-20110-23 Knob Sub-Assy, Shift Lever[03.1990 - 06.1992] EXY10..MTM BLUE GRAY,TRIM1# |
33504-20110-23 |
US $40.33 |
||
| replacement | |||||
|
33504F
|
33504F
33504-24010-C1 Knob Sub-Assy, Shift Lever (Black)[03.1990 - 06.1992] EXY10..MTM BLUE GRAY,TRIM1# |
33504-24010-C1 |
from US $28.42 |
||
|
33509
|
33509
33509-10030 Crank Sub-Assy, Selecting Bell, No.1[03.1990 - 11.1991] EXY10..MTM |
33509-10030 |
US $29.27 |
||
| replacement | |||||
|
33509
|
33509
33509-10031 Crank Sub-Assy, Selecting Bell, No.1[03.1990 - 11.1991] EXY10..MTM |
33509-10031 |
US $29.27 |
||
|
33533F
|
33533F
33533-10010 Shaft, Bellcrank (For Floor Shift)[03.1990 - 11.1991] EXY10..MTM |
33533-10010 |
US $10.48 |
||
|
33534C
|
33534C
90386-12038 Bush (For Selecting Bellcrank No.1)[03.1990 - 11.1991] EXY10..MTM |
90386-12038 |
US $1.89 |
||
|
33534D
|
33534D
90508-23112 Spring, Torsion (For Selecting Bellcrank No.1)[03.1990 - 11.1991] EXY10..MTM |
90508-23112 |
US $2.48 |
||
|
33534Q
|
33534Q
96160-00700 Ring, E(For Chain Tensioner Slipper)[03.1990 - 11.1991] EXY10..MTM |
96160-00700 |
US $3.20 |
||
|
33534R
|
33534R
90540-35001
Cushion (For Selecting Bellcrank No.1)
[03.1990 - 11.1991] EXY10..MTM |
90540-35001 |
— | ||
|
33548F
|
33548F
33548-10030
Bush, No.1, Shift Lever (For Floor Shift)
[03.1990 - 11.1991] EXY10..MTM |
33548-10030 |
— | ||
|
33554
|
33554
33554-10040
Cap, Shift Lever
[03.1990 - 11.1991] EXY10..MTM |
33554-10040 |
— | ||
| replacement | |||||
|
33554
|
33554
33554-10041
Cap, Shift Lever
[03.1990 - 11.1991] EXY10..MTM |
33554-10041 |
— | ||
|
33556F
|
33556F
33556-10010 Seat, Transmission Shift Lever Ball[03.1990 - 11.1991] EXY10..MTM |
33556-10010 |
US $10.63 |
||
|
33575
|
33575
33575-10080 Retainer, Control Shift Lever (For Floor Shift)[03.1990 - 11.1991] EXY10..MTM |
33575-10080 |
US $72.22 |
||
|
33575A
|
33575A
90389-08085 Bush, No.1 (For Control Shift Lever Retainer)[03.1990 - 11.1991] EXY10..MTM |
90389-08085 |
US $3.49 |
||
|
33575B
|
33575B
90389-10029 Bush, No.2 (For Control Shift Lever Retainer)[03.1990 - 11.1991] EXY10..MTM |
90389-10029 |
US $8.59 |
||
|
9011908800
|
9011908800
90119-08800
New Genuine Part
|
90119-08800 |
— | ||
|
9025406004
|
9025406004
90254-06004 Pin, Shift Lever Retainer Ring |
90254-06004 |
US $2.77 |
||
