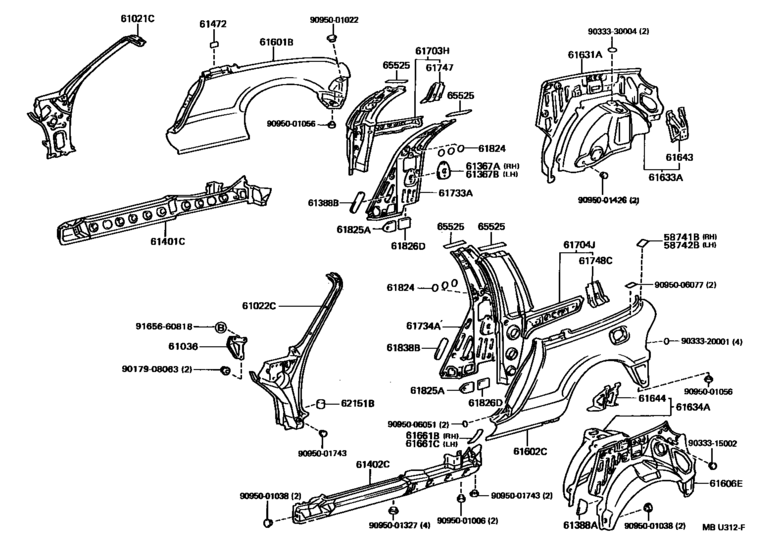

Side Member ([03.1990 - ] (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58741B
|
58741B
58741-18010 Protector, Quarter Panel, Rh[06.1992 - 12.1995] EXY10 |
58741-18010 |
US $11.07 |
||
|
58742B
|
58742B
58741-18010 Protector, Quarter Panel, Rh[06.1992 - 12.1995] EXY10 |
58741-18010 |
US $11.07 |
||
|
61021C
|
61021C
61021-18010 Pillar Sub-Assy, Front Body, Rh[03.1990 - 12.1995] EXY10 |
61021-18010 |
US $566.38 |
||
|
61022C
|
61022C
61022-18010 Pillar Sub-Assy, Front Body, Lh[03.1990 - 12.1995] EXY10 |
61022-18010 |
US $566.38 |
||
|
61036
|
61036
61165-10030 Bracket Sub-Assy, Instrument Panel To Cowl Side, Lh[03.1990 - 12.1995] EXY10 |
61165-10030 |
US $24.61 |
||
|
61367A
|
61367A
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[03.1990 - 12.1995] EXY10 |
61367-14010 |
US $9.17 |
||
|
61367B
|
61367B
61367-14010 Reinforcement, Belt Anchor To Center Pillar, Lower[03.1990 - 12.1995] EXY10 |
61367-14010 |
US $9.17 |
||
|
61388A
|
61388A
61388-18010 Plate, Center Body Pillar End, Rh[03.1990 - 12.1995] EXY10 |
61388-18010 |
US $4.22 |
||
|
61401C
|
61401C
61401-18010 Panel Sub-Assy, Rocker, Outer Rh[03.1990 - 12.1995] EXY10 |
61401-18010 |
US $267.90 |
||
|
61402C
|
61402C
61402-18010 Panel Sub-Assy, Rocker, Outer Lh[03.1990 - 12.1995] EXY10 |
61402-18010 |
US $267.90 |
||
|
61472
|
61472
61472-18010 Plate, Pillar No.3[03.1990 - 12.1995] EXY10 |
61472-18010 |
US $2.18 |
||
|
61601B
|
61601B
61601-18010 Panel Sub-Assy, Quarter, Rh[03.1990 - 06.1992] EXY10 |
61601-18010 |
US $448.45 |
||
| replacement | |||||
|
61601B
|
61601B
61601-18020 Panel Sub-Assy, Quarter, Rh[03.1990 - 06.1992] EXY10 |
61601-18020 |
US $448.45 |
||
|
61601B
|
61601B
61601-18020 Panel Sub-Assy, Quarter, Rh[06.1992 - 12.1995] EXY10 |
61601-18020 |
US $448.45 |
||
|
61602C
|
61602C
61602-18010
Panel Sub-Assy, Quarter, Lh
[03.1990 - 06.1992] EXY10 |
61602-18010 |
— | ||
| replacement | |||||
|
61602C
|
61602C
61602-18020
Panel Sub-Assy, Quarter, Lh
[03.1990 - 06.1992] EXY10 |
61602-18020 |
— | ||
|
61602C
|
61602C
61602-18020
Panel Sub-Assy, Quarter, Lh
[06.1992 - 12.1995] EXY10 |
61602-18020 |
— | ||
|
61606E
|
61606E
61606-18010 Panel, Quarter, Lh[03.1990 - 06.1992] EXY10 |
61606-18010 |
US $183.46 |
||
| replacement | |||||
|
61606E
|
61606E
61606-18011 Panel, Quarter, Lh[03.1990 - 06.1992] EXY10 |
61606-18011 |
US $183.46 |
||
|
61606E
|
61606E
61606-18011 Panel, Quarter, Lh[06.1992 - 12.1995] EXY10 |
61606-18011 |
US $183.46 |
||
|
61631A
|
61631A
61605-18010 Panel, Quarter Wheel House, Outer Rh[03.1990 - 06.1992] EXY10 |
61605-18010 |
US $183.46 |
||
| replacement | |||||
|
61631A
|
61631A
61605-18011 Panel, Quarter Wheel House, Outer Rh[03.1990 - 06.1992] EXY10 |
61605-18011 |
US $183.46 |
||
|
61631A
|
61631A
61605-18011 Panel, Quarter Wheel House, Outer Rh[06.1992 - 12.1995] EXY10 |
61605-18011 |
US $183.46 |
||
|
61633A
|
61633A
61607-18010 Panel, Quarter Wheel House, Inner Rh[03.1990 - 12.1995] EXY10 |
61607-18010 |
US $211.12 |
||
|
61634A
|
61634A
61608-18010 Panel, Quarter Wheel House, Inner Lh[03.1990 - 12.1995] EXY10 |
61608-18010 |
US $211.12 |
||
|
61643
|
61643
61643-18010 Gusset, Quarter Wheel House Center, Rh[03.1990 - 12.1995] EXY10 |
61643-18010 |
US $45.86 |
||
|
61644
|
61644
61644-18010 Gusset, Quarter Wheel House, Center Lh[03.1990 - 12.1995] EXY10 |
61644-18010 |
US $45.86 |
||
|
61661B
|
61661B
61661-18010 Plate, Quarter Panel Outer Extension, Lower Front[03.1990 - 11.1992] EXY10 |
61661-18010 |
US $3.49 |
||
|
61661B
|
61661B
64129-17010 Plate, Quarter Panel Outer Extension, Lower Front[11.1992 - 12.1995] EXY10 |
64129-17010 |
US $3.49 |
||
|
61661C
|
61661C
61661-18010 Plate, Quarter Panel Outer Extension, Lower Front[03.1990 - 11.1992] EXY10 |
61661-18010 |
US $3.49 |
||
|
61703H
|
61703H
61703-18010 Reinforcement Sub-Assy, Roof Side, Inner Rh[03.1990 - 12.1995] EXY10 |
61703-18010 |
US $262.08 |
||
|
61704J
|
61704J
61704-18010 Reinforcement Sub-Assy, Roof Side, Inner Lh[03.1990 - 12.1995] EXY10 |
61704-18010 |
US $262.08 |
||
|
61733A
|
61733A
61733-18010 Panel, Roof Side, Inner Front Rh[03.1990 - 06.1992] EXY10 |
61733-18010 |
US $168.90 |
||
| replacement | |||||
|
61733A
|
61733A
61733-18011 Panel, Roof Side, Inner Front Rh[03.1990 - 06.1992] EXY10 |
61733-18011 |
US $168.90 |
||
|
61733A
|
61733A
61733-18011 Panel, Roof Side, Inner Front Rh[06.1992 - 12.1995] EXY10 |
61733-18011 |
US $168.90 |
||
|
61734A
|
61734A
61734-18010 Panel, Roof Side, Inner Front Lh[03.1990 - 06.1992] EXY10 |
61734-18010 |
US $168.90 |
||
| replacement | |||||
|
61734A
|
61734A
61734-18011 Panel, Roof Side, Inner Front Lh[03.1990 - 06.1992] EXY10 |
61734-18011 |
US $168.90 |
||
|
61734A
|
61734A
61734-18011 Panel, Roof Side, Inner Front Lh[06.1992 - 12.1995] EXY10 |
61734-18011 |
US $168.90 |
||
|
61747
|
61747
61747-18010 Brace, Roof Side Inner To Wheel House, Rh[03.1990 - 12.1995] EXY10 |
61747-18010 |
US $27.96 |
||
|
61748C
|
61748C
61747-18010 Brace, Roof Side Inner To Wheel House, Rh[03.1990 - 12.1995] EXY10 |
61747-18010 |
US $27.96 |
||
|
61824
|
61824
61824-12040 Plate, Noise Control, No.1[03.1990 - 12.1995] EXY10 |
61824-12040 |
US $1.89 |
||
|
61825A
|
61825A
61825-18010 Plate, Noise Control, No.2[03.1990 - 12.1995] EXY10 |
61825-18010 |
US $25.63 |
||
|
61826D
|
61826D
82817-30150 Plate, Noise Control, No.3[03.1990 - 12.1995] EXY10 |
82817-30150 |
US $12.08 |
||
|
61838B
|
61838B
61838-18010 Plate, Noise Control, No.5[03.1990 - 12.1995] EXY10 |
61838-18010 |
US $4.22 |
||
|
62151B
|
62151B
62151-20180 Pad, Cowl Side Silencer[03.1990 - 12.1995] EXY10 |
62151-20180 |
US $9.17 |
||
|
65525
|
65525
61472-18010 Plate, Pillar No.3[05.1990 - 12.1995] EXY10 |
61472-18010 |
US $2.18 |
||
|
9017908063
|
9017908063
90179-08063 NUT |
90179-08063 |
US $2.56 |
||
|
9033315002
|
9033315002
90333-15002 PLUG |
90333-15002 |
from US $1.44 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001022
|
9095001022
90950-01022
Plug, Hole, No.1(For Dash Panel)
|
90950-01022 |
— | ||
| replacement | |||||
|
9095001022
|
9095001022
90950-01882 Cover, Hole |
90950-01882 |
from US $2.24 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
||
|
9095001426
|
9095001426
90950-01426
New Genuine Part
|
90950-01426 |
— | ||
|
9095001743
|
9095001743
90950-01743
PLUG HOLE
|
90950-01743 |
— | ||
|
9095006051
|
9095006051
90950-06051 Protector, Rear Body, No.1 |
90950-06051 |
US $2.08 |
||
|
9095006077
|
9095006077
90950-06077 New Genuine Part |
90950-06077 |
US $1.76 |
||
|
9165660818
|
9165660818
91656-60818 Clamp Or Clip, Hose(for Radiator Outlet No.1) |
91656-60818 |
US $1.89 |
||
| replacement | |||||
|
9165660818
|
9165660818
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.88 |
||
