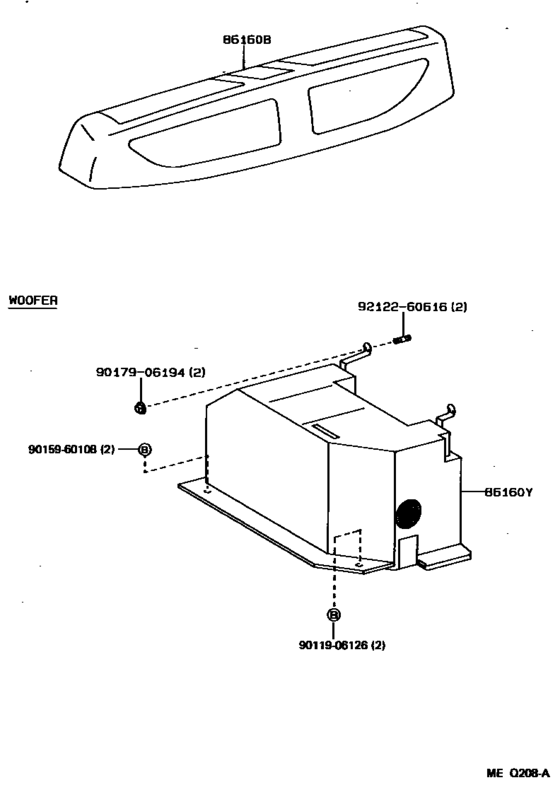

Speaker ([03.1990 - ] REAR SPEAKER (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86160B
|
86160B
86150-18020-03 Speaker Assy, Rear[03.1990 - 06.1992] EXY10 BLUE GRAY,TRIM1# |
86150-18020-03 |
US $1,645.28 |
||
|
86160B
|
86160B
86150-18020-05 Speaker Assy, Rear[03.1990 - 06.1992] EXY10 GRAIGE,TRIM4# |
86150-18020-05 |
US $1,645.28 |
||
|
86160B
|
86160B
86150-18020-B0 Speaker Assy, Rear[06.1992 - 12.1995] EXY10 LIGHT GRAY,TRIM1# |
86150-18020-B0 |
US $1,645.28 |
||
|
86160Y
|
86160Y
86150-18030
Speaker Assy, Rear No.2
[03.1990 - 12.1995] EXY10 |
86150-18030 |
— | ||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
from US $1.12 |
||
| replacement | |||||
|
9011906126
|
9011906126
90080-11157
Bolt with Washer
|
90080-11157 |
— | ||
|
9015960108
|
9015960108
90159-60108 New Genuine Part |
90159-60108 |
US $1.05 |
||
|
9017906194
|
9017906194
90179-06194
Nut (For Rear Wiper Arm Setting)
|
90179-06194 |
— | ||
| replacement | |||||
|
9017906194
|
9017906194
90179-06178 Nut (For Rear Wiper Arm Setting) |
90179-06178 |
from US $0.80 |
||
|
9212260616
|
9212260616
92122-60616 BOLT STUD |
92122-60616 |
US $1.89 |
||
