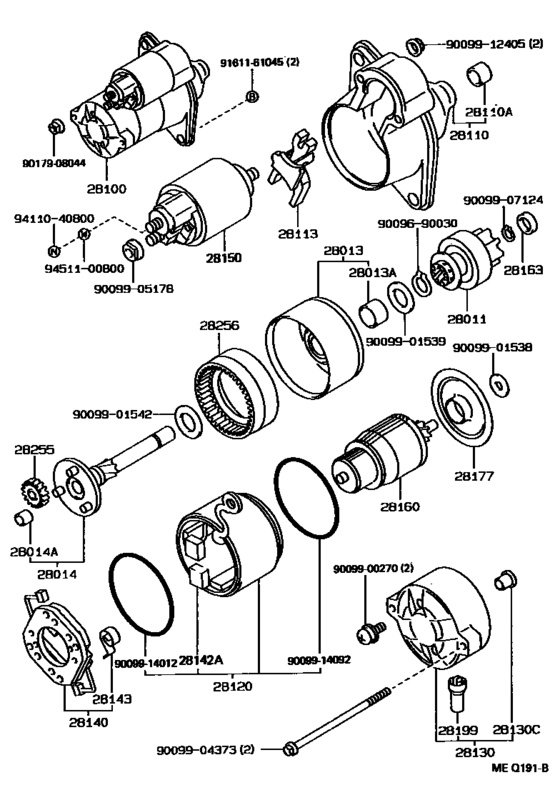

Starter ([03.1990 - ] 12V 0.8KW (9003- )) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- MTM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-26042
Clutch Sub-Assy, Starter
[03.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28011-26042 |
— | ||
|
28011
|
28011
28011-70020 Clutch Sub-Assy, Starter[03.1990 - 12.1995] 5EFHE..EXY10 |
28011-70020 |
US $43.51 |
||
|
28013
|
28013
28013-70020 Bearing, Starter Center & Shock Absorber, No.1[03.1990 - 12.1995] 5EFHE..EXY10 |
28013-70020 |
US $29.12 |
||
| replacement | |||||
|
28013
|
28013
28013-70030 Bearing, Starter Center & Shock Absorber, No.1[03.1990 - 12.1995] 5EFHE..EXY10 |
28013-70030 |
US $24.32 |
||
|
28013A
|
28013A
90099-10181
Bearing, Starter Center & Shock Absorber, No.2
[03.1990 - 12.1995] 5EFHE..EXY10 |
90099-10181 |
— | ||
|
28014
|
28014
28014-70020 Shaft Sub-Assy, Planet Carrier[03.1990 - 12.1995] 5EFHE..EXY10 |
28014-70020 |
US $23.15 |
||
|
28014A
|
28014A
90099-10180
Bush Or Bearing, Planet Carrier Shaft
[03.1990 - 12.1995] 5EFHE..EXY10 |
90099-10180 |
— | ||
|
28100
|
28100
28100-10040 Starter Assy[03.1990 - 12.1995] 5EFHE..EXY10..MTM １２Ｖ １．０ＫＷ,ｶﾝﾚｲﾁ ｼﾖｳ |
28100-10040 |
US $1,275.46 |
||
|
28100
|
28100
28100-11010 Starter Assy[03.1990 - 12.1995] 5EFHE..EXY10..MTM １２Ｖ ０．８ＫＷ |
28100-11010 |
US $898.35 |
||
|
28110
|
28110
28110-10040 Housing Assy, Starter Drive[03.1990 - 12.1995] 5EFHE..EXY10..MTM ｶﾝﾚｲﾁ ｼﾖｳ |
28110-10040 |
US $51.11 |
||
|
28110
|
28110
28110-11010 Housing Assy, Starter Drive[03.1990 - 12.1995] 5EFHE..EXY10..MTM |
28110-11010 |
US $68.14 |
||
|
28110A
|
28110A
90099-10171
Bearing(For Starter Housing)
[05.1991 - 12.1995] 5EFHE..EXY10 |
90099-10171 |
— | ||
|
28110A
|
28110A
90099-10182
Bearing(For Starter Housing)
[03.1990 - 05.1991] 5EFHE..EXY10 |
90099-10182 |
— | ||
|
28113
|
28113
28113-16070 Lever, Starter Pinion Drive[03.1990 - 12.1995] 5EFHE..EXY10 |
28113-16070 |
US $12.41 |
||
|
28120
|
28120
28120-26071
Yoke Assy, Starter
[03.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28120-26071 |
— | ||
|
28120
|
28120
28120-70020 Yoke Assy, Starter[03.1990 - 12.1995] 5EFHE..EXY10 |
28120-70020 |
from US $98.61 |
||
|
28130
|
28130
28130-10040
Frame Assy, Starter Commutator End
[12.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28130-10040 |
— | ||
|
28130
|
28130
28130-11010
Frame Assy, Starter Commutator End
[03.1990 - 12.1995] 5EFHE..EXY10 |
28130-11010 |
— | ||
|
28130
|
28130
28130-34060 Frame Assy, Starter Commutator End[03.1990 - 12.1990] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28130-34060 |
US $19.09 |
||
|
28130C
|
28130C
90099-10183
Bearing, Starter Flange
[03.1990 - 12.1995] 5EFHE..EXY10 |
90099-10183 |
— | ||
|
28140
|
28140
28140-26070 Holder Assy, Starter Brush[03.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28140-26070 |
US $16.77 |
||
|
28140
|
28140
28140-70020 Holder Assy, Starter Brush[03.1990 - 12.1995] 5EFHE..EXY10 |
28140-70020 |
from US $22.19 |
||
|
28142A
|
28142A
28142-70020 Brush, Starter[03.1990 - 12.1995] 5EFHE..EXY10 |
28142-70020 |
from US $2.81 |
||
|
28143
|
28143
28143-70020
Spring, Starter Brush
[03.1990 - 12.1995] 5EFHE..EXY10 |
28143-70020 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[03.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
90099-17112 |
— | ||
|
28150
|
28150
28150-10020
Switch Assy, Magnet Starter
[03.1990 - 09.1990] 5EFHE..EXY10 |
28150-10020 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[03.1990 - 09.1990] 5EFHE..EXY10 |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-10021 Switch Assy, Magnet Starter[09.1990 - 12.1995] 5EFHE..EXY10 |
28150-10021 |
US $101.34 |
||
|
28150
|
28150
28150-34080 Switch Assy, Magnet Starter[03.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28150-34080 |
US $372.74 |
||
|
28160
|
28160
28160-26071
Armature Assy, Starter
[03.1990 - 12.1995] 5EFHE..EXY10 ｶﾝﾚｲﾁ ｼﾖｳ |
28160-26071 |
— | ||
|
28160
|
28160
28160-70021 Armature Assy, Starter[03.1990 - 12.1995] 5EFHE..EXY10 |
28160-70021 |
US $131.04 |
||
|
28163
|
28163
28163-70020
Nut Or Collar, Pinion Stop, Starter
[03.1990 - 12.1995] 5EFHE..EXY10 |
28163-70020 |
— | ||
|
28177
|
28177
28177-70020
Plate(For Starter Armature)
[03.1990 - 12.1995] 5EFHE..EXY10 |
28177-70020 |
— | ||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[09.1990 - 12.1995] 5EFHE..EXY10 |
28199-46080 |
US $2.97 |
||
|
28199
|
28199
28199-70020
Cover, Starter End Frame
[03.1990 - 09.1990] 5EFHE..EXY10 |
28199-70020 |
— | ||
| replacement | |||||
|
28199
|
28199
28199-46080 Cover, Starter End Frame[03.1990 - 09.1990] 5EFHE..EXY10 |
28199-46080 |
US $2.97 |
||
|
28255
|
28255
28255-70020
Gear, Planet
[03.1990 - 12.1995] 5EFHE..EXY10 |
28255-70020 |
— | ||
|
28256
|
28256
28256-70020
Gear, Starter Internal
[03.1990 - 12.1995] 5EFHE..EXY10 |
28256-70020 |
— | ||
|
9009690030
|
9009690030
90096-90030
Ring, Snap, Starter Clutch Housing Disc
|
90096-90030 |
— | ||
|
9009900270
|
9009900270
90099-00270
Screw, Starter
|
90099-00270 |
— | ||
|
9009901538
|
9009901538
90099-01538
New Genuine Part
|
90099-01538 |
— | ||
|
9009901539
|
9009901539
90099-01539
New Genuine Part
|
90099-01539 |
— | ||
|
9009901542
|
9009901542
90099-01542
New Genuine Part
|
90099-01542 |
— | ||
|
9009904373
|
9009904373
90099-04373
BOLTTHROUGH
|
90099-04373 |
— | ||
|
9009905178
|
9009905178
90099-05178
New Genuine Part
|
90099-05178 |
— | ||
|
9009907124
|
9009907124
90099-07124
Bearing(For Starter Housing)
|
90099-07124 |
— | ||
|
9009912405
|
9009912405
90099-12405
New Genuine Part
|
90099-12405 |
— | ||
|
9009914012
|
9009914012
90099-14012
New Genuine Part
|
90099-14012 |
— | ||
|
9009914092
|
9009914092
90099-14092
Ring, O(For Starter Yoke)
|
90099-14092 |
— | ||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9161161045
|
9161161045
91611-61045
Bolt, Hexagon(For Idle Gear Bolt Lock)
|
91611-61045 |
— | ||
| replacement | |||||
|
9161161045
|
9161161045
91612-61045 Bolt(For Transaxle & Engine Setting) |
91612-61045 |
from US $1.21 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
