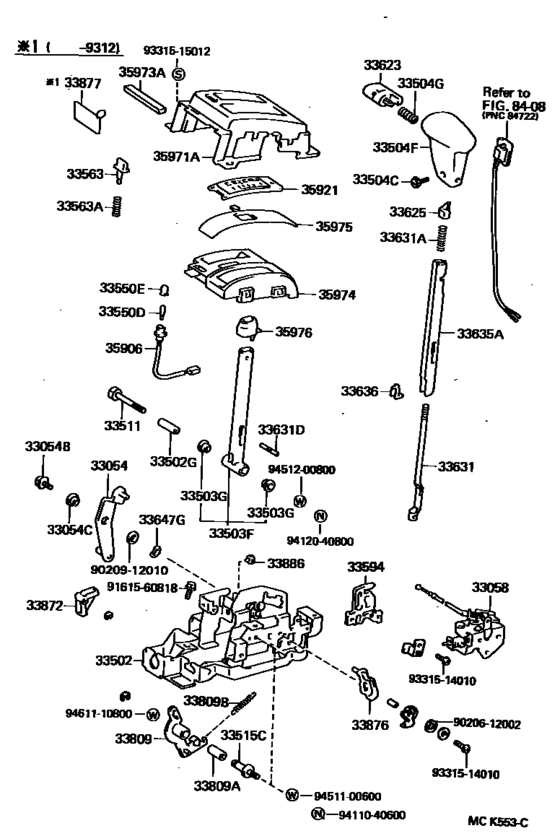

Shift Lever & Retainer ([03.1990 - ] A242L (9003- )ATM) Diagram Toyota SERA
- Year
- 1990 - 1995
- Sales region
- Japan
- Frame
- EXY10
- ENGINE
- 5EFHE
- TRANSMISSION
- ATM
- From
- 03.1990
- To
- 12.1995
- Vehicle Model
- SERA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33054
|
33054
33054-10030 Lever Sub-Assy, Shift, No.2(For Floor Shift)[03.1990 - 12.1995] EXY10..ATM |
33054-10030 |
US $30.43 |
||
|
33054B
|
33054B
90119-08606 Bolt(For Shift Lever No.2)[03.1990 - 12.1995] EXY10..ATM |
90119-08606 |
US $1.89 |
||
|
33054C
|
33054C
90386-12029 Bush(For Shift Lever No.2)[03.1990 - 12.1995] EXY10..ATM |
90386-12029 |
US $1.46 |
||
|
33058
|
33058
33058-10010 Bracket Sub-Assy, Shift Lock Solenoid[03.1990 - 12.1995] EXY10..ATM |
33058-10010 |
US $74.26 |
||
|
33502
|
33502
33502-10120 Plate Sub-Assy, Shift Lever[03.1990 - 12.1995] EXY10..ATM |
33502-10120 |
US $160.16 |
||
|
33502G
|
33502G
90387-08114
Collar (For Shift Lever Plate)
[03.1990 - 12.1995] EXY10..ATM |
90387-08114 |
— | ||
|
33503F
|
33503F
33503-18010 Lever Sub-Assy, Shift(For Floor Shift)[03.1990 - 12.1995] EXY10..ATM |
33503-18010 |
US $32.47 |
||
|
33503G
|
33503G
90386-11012 Bush(For Shift Lever)[03.1990 - 12.1995] EXY10..ATM |
90386-11012 |
US $2.62 |
||
|
33504C
|
33504C
90159-40109 Bolt Or Pin (For Shift Lever Knob Setting)[03.1990 - 12.1995] EXY10..ATM |
90159-40109 |
US $1.28 |
||
|
33504F
|
33504F
33542-20080-03
Knob Sub-Assy, Shift Lever
[06.1992 - 12.1995] EXY10..ATM GRAY,TRIM1# |
33542-20080-03 |
— | ||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[06.1992 - 12.1995] EXY10..ATM GRAY,TRIM1# |
33542-20081-B1 |
US $69.54 |
||
|
33504F
|
33504F
33542-20080-05 Knob Sub-Assy, Shift Lever[03.1990 - 06.1992] EXY10..ATM GREIGE,TRIM4# |
33542-20080-05 |
US $65.96 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[03.1990 - 06.1992] EXY10..ATM GREIGE,TRIM4# |
33542-20081-B1 |
US $69.54 |
||
|
33504F
|
33504F
33542-20080-33 Knob Sub-Assy, Shift Lever[03.1990 - 06.1992] EXY10..ATM BLUE GRAY,TRIM1# |
33542-20080-33 |
US $65.96 |
||
| replacement | |||||
|
33504F
|
33504F
33542-20081-B1 Knob Sub-Assy, Shift Lever[03.1990 - 06.1992] EXY10..ATM BLUE GRAY,TRIM1# |
33542-20081-B1 |
US $69.54 |
||
|
33504G
|
33504G
90501-07009 Spring, Compression (For Shift Lever Knob)[03.1990 - 12.1995] EXY10..ATM |
90501-07009 |
from US $4.49 |
||
|
33511
|
33511
33511-12070 Shaft, Control (For Floor Shift)[03.1990 - 12.1995] EXY10..ATM |
33511-12070 |
US $9.90 |
||
|
33515C
|
33515C
33515-12010 Shaft, Control, No.2[03.1990 - 12.1995] EXY10..ATM |
33515-12010 |
US $5.39 |
||
|
33550D
|
33550D
90981-11018 Bulb, Position Indicator Lamp[03.1990 - 12.1995] EXY10..ATM １２Ｖ １．２Ｗ ソケット無し |
90981-11018 |
from US $2.24 |
||
|
33550E
|
33550E
90339-04039
Cap, Position Indicator Lamp
[03.1990 - 12.1995] EXY10..ATM |
90339-04039 |
— | ||
|
33563
|
33563
33563-18010 Button, Shift Lock Release[03.1990 - 12.1995] EXY10..ATM |
33563-18010 |
US $5.39 |
||
|
33563A
|
33563A
90501-06063 Spring, Compression (For Shift Lock Release Button)[03.1990 - 12.1995] EXY10..ATM |
90501-06063 |
US $1.89 |
||
|
33594
|
33594
33594-10020 Plate, Shift Lock (For Floor Shift)[03.1990 - 12.1995] EXY10..ATM |
33594-10020 |
US $5.10 |
||
|
33623
|
33623
33623-20020-03 Button, Shift Lever Knob[06.1992 - 12.1995] EXY10..ATM GRAY,TRIM1# |
33623-20020-03 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[06.1992 - 12.1995] EXY10..ATM GRAY,TRIM1# |
33623-20020-C0 |
US $31.60 |
||
|
33623
|
33623
33623-20020-05 Button, Shift Lever Knob[03.1990 - 06.1992] EXY10..ATM GREIGE,TRIM4# |
33623-20020-05 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[03.1990 - 06.1992] EXY10..ATM GREIGE,TRIM4# |
33623-20020-C0 |
US $31.60 |
||
|
33623
|
33623
33623-20020-33 Button, Shift Lever Knob[03.1990 - 06.1992] EXY10..ATM BLUE GRAY,TRIM1# |
33623-20020-33 |
US $31.60 |
||
| replacement | |||||
|
33623
|
33623
33623-20020-C0 Button, Shift Lever Knob[03.1990 - 06.1992] EXY10..ATM BLUE GRAY,TRIM1# |
33623-20020-C0 |
US $31.60 |
||
|
33625
|
33625
33625-24010 Sleeve, Shift Lever Knob[03.1990 - 12.1995] EXY10..ATM |
33625-24010 |
US $6.46 |
||
|
33631
|
33631
33631-18010 Rod, Detent[03.1990 - 12.1995] EXY10..ATM |
33631-18010 |
US $15.29 |
||
|
33631A
|
33631A
90501-08128
Spring, Compression (For Detent Rod)
[03.1990 - 12.1995] EXY10..ATM |
90501-08128 |
— | ||
|
33631D
|
33631D
90256-04003 Pin, Slotted Spring (For Detent Rod)[03.1990 - 12.1995] EXY10..ATM |
90256-04003 |
US $2.97 |
||
|
33635A
|
33635A
33635-18010 Guide, Wire, No.1 (For Shift Lever)[03.1990 - 12.1995] EXY10..ATM |
33635-18010 |
US $12.38 |
||
|
33636
|
33636
33636-35010 Protector, Wire[03.1990 - 12.1995] EXY10..ATM |
33636-35010 |
US $2.56 |
||
|
33647G
|
33647G
90206-12002 Washer, Wave (For Control Link Shaft)[03.1990 - 12.1995] EXY10..ATM |
90206-12002 |
US $1.75 |
||
|
33809
|
33809
33809-10010 Lever Sub-Assy, Cable Control[03.1990 - 12.1995] EXY10..ATM |
33809-10010 |
US $5.39 |
||
|
33809A
|
33809A
90386-08041 Bush (For Cable Control Lever)[03.1990 - 12.1995] EXY10..ATM |
90386-08041 |
US $2.62 |
||
|
33809B
|
33809B
90506-05005 Spring, Torsion (For Cable Control Lever)[03.1990 - 12.1995] EXY10..ATM |
90506-05005 |
US $1.89 |
||
|
33872
|
33872
33872-18010 Link, Shift Lock Release, No.2[03.1990 - 12.1995] EXY10..ATM |
33872-18010 |
US $5.10 |
||
|
33876
|
33876
33876-10010 Guide, Shift Lock Plate[03.1990 - 12.1995] EXY10..ATM |
33876-10010 |
US $20.82 |
||
|
33877
|
33877
33877-12010
Label, Shift Lock Information, No.1
[03.1990 - 12.1993] EXY10..ATM |
33877-12010 |
— | ||
|
33886
|
33886
33886-16010 Stopper, Shift Lever[03.1990 - 12.1995] EXY10..ATM |
33886-16010 |
US $1.35 |
||
|
35906
|
35906
35906-35051 Wire Sub-Assy, Indicator Lamp[03.1990 - 12.1995] EXY10..ATM |
35906-35051 |
US $15.87 |
||
| replacement | |||||
|
35906
|
35906
35906-17020 Wire Sub-Assy, Indicator Lamp[03.1990 - 12.1995] EXY10..ATM |
35906-17020 |
US $13.69 |
||
|
35921
|
35921
35921-18010
Plate, Control Position Indicator
[03.1990 - 05.1991] EXY10..ATM |
35921-18010 |
— | ||
|
35921
|
35921
35921-18011
Plate, Control Position Indicator
[05.1991 - 12.1995] EXY10..ATM |
35921-18011 |
— | ||
|
35971A
|
35971A
35971-18010
Housing, Position Indicator, Upper
[03.1990 - 12.1995] EXY10..ATM |
35971-18010 |
— | ||
|
35973A
|
35973A
35973-18010 Attachment, Position Indicator Housing Cover[03.1990 - 12.1995] EXY10..ATM |
35973-18010 |
US $9.03 |
||
|
35974
|
35974
35974-10080
Housing, Position Indicator, Lower
[03.1990 - 12.1995] EXY10..ATM |
35974-10080 |
— | ||
|
35975
|
35975
35975-10030
Cover, Slide (For Position Indicator)
[03.1990 - 12.1995] EXY10..ATM |
35975-10030 |
— | ||
|
35976
|
35976
35976-10010 Cover, Slide, No.2 (For Position Indicator)[03.1990 - 12.1995] EXY10..ATM |
35976-10010 |
US $12.81 |
||
|
9020612002
|
9020612002
90206-12002 Washer, Wave (For Control Link Shaft) |
90206-12002 |
US $1.75 |
||
|
9020912010
|
9020912010
90209-12010 New Genuine Part |
90209-12010 |
US $1.75 |
||
|
9161560818
|
9161560818
91615-60818 Screw Or Bolt(for Valve Rocker Shaft Lock) |
91615-60818 |
US $1.60 |
||
| replacement | |||||
|
9161560818
|
9161560818
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
|
9331515012
|
9331515012
93315-15012 SCREWWWASHER |
93315-15012 |
from US $0.80 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
US $1.28 |
||
