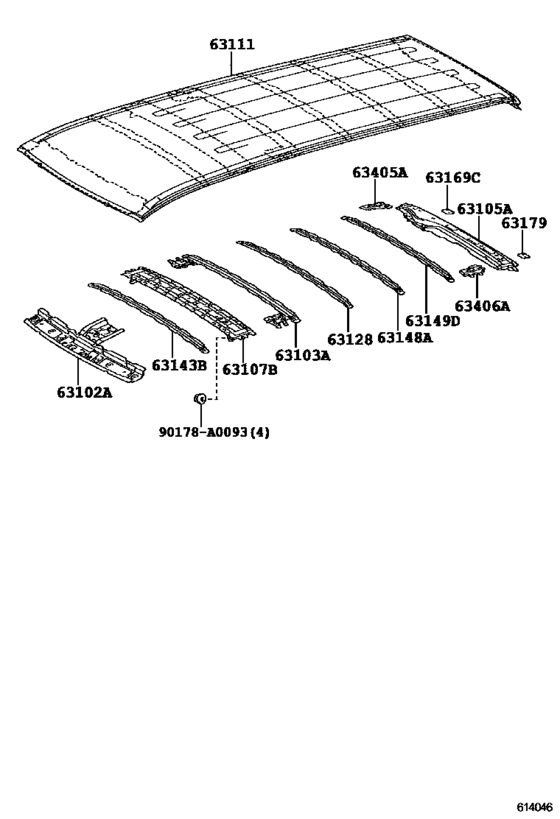

Roof Panel & Back Panel ([09.2011 - ] ROOF PANEL (1109- )ASL30) Diagram Toyota SIENNA
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63102A
|
63102A
63102-08020
Panel Sub-Assy, Windshield Header
[09.2011 - 08.2013] ASL30 |
63102-08020 |
— | ||
|
63103A
|
63103A
63103-08010
Reinforcement Sub-Assy, Roof Panel
[09.2011 - 08.2013] ASL30 |
63103-08010 |
— | ||
|
63105A
|
63105A
63105-08020
Frame Sub-Assy, Back Door Opening
[09.2011 - 08.2013] ASL30 |
63105-08020 |
— | ||
|
63107B
|
63107B
63107-08010
Reinforcement Sub-Assy, Roof Panel, Rh
[09.2011 - 08.2013] ASL30 |
63107-08010 |
— | ||
|
63111
|
63111
63111-08060
Panel, Roof
[09.2011 - 08.2013] ASL30 |
63111-08060 |
— | ||
|
63128
|
63128
63128-08010
Reinforcement, Roof Panel, No.6
[09.2011 - 08.2013] ASL30 |
63128-08010 |
— | ||
|
63143B
|
63143B
63143-08030
Reinforcement, Roof Panel, No.3
[09.2011 - 08.2013] ASL30 |
63143-08030 |
— | ||
|
63148A
|
63148A
63148-08010
Reinforcement, Roof Panel, No.7
[09.2011 - 08.2013] ASL30 |
63148-08010 |
— | ||
|
63149D
|
63149D
63149-08010
Reinforcement, Roof Panel, No.8
[09.2011 - 08.2013] ASL30 |
63149-08010 |
— | ||
|
63169C
|
63169C
63169-0E020
Retainer, Roof Reinforcement, No.2
[09.2011 - 08.2013] ASL30 |
63169-0E020 |
— | ||
|
63179
|
63179
63179-0E020
Plate, Roof Panel Reinforcement, Lh
[09.2011 - 08.2013] ASL30 |
63179-0E020 |
— | ||
|
63405A
|
63405A
63405-08010
Support Sub-Assy, Roof Rack, Rear
[09.2011 - 08.2013] ASL30 |
63405-08010 |
— | ||
|
63406A
|
63406A
63406-08010
Support Sub-Assy, Roof Rack, Rear Lh
[09.2011 - 08.2013] ASL30 |
63406-08010 |
— | ||
|
90178A0093
|
90178A0093
90178-A0093
New Genuine Part
|
90178-A0093 |
— |
