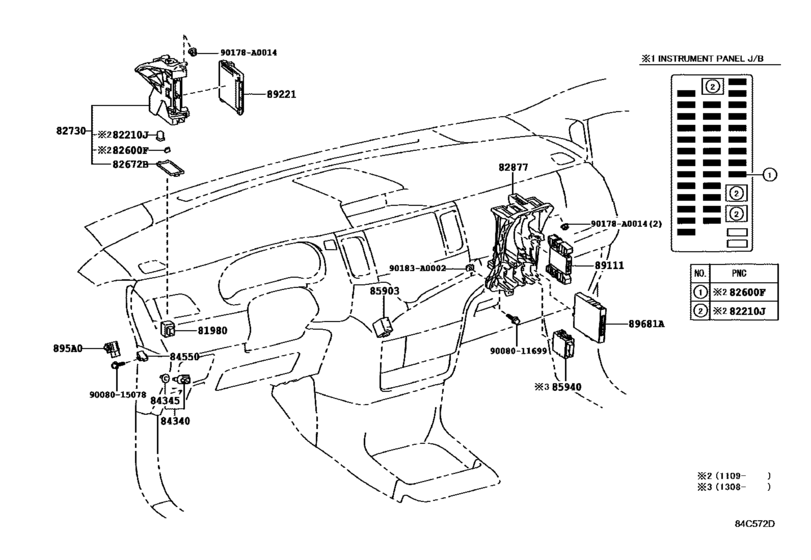

Switch & Relay & Computer ([09.2011 - 09.2014] COWL (1109-1409)) Diagram Toyota SIENNA
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
895A0
|
895A0
895A0-46020 Relay Assy, Stop Lamp Control[09.2011 - 08.2013] ASL30 |
895A0-46020 |
US $74.78 |
||
|
81980
|
81980
81980-02030
Flasher Assy, Turn Signal
[09.2011 - 08.2013] ASL30 |
81980-02030 |
— | ||
|
82210J
|
82210J
90982-08301 Fusible Link[09.2011 - 08.2013] ASL30 50A-30A-40A,FEMALE |
90982-08301 |
US $6.24 |
||
|
82210J
|
82210J
90982-08304 Fusible Link[09.2011 - 08.2013] ASL30 60A,TERMINAL:FEMALE |
90982-08304 |
US $6.24 |
||
|
82210J
|
82210J
90982-08306 Fusible Link[09.2011 - 08.2013] ASL30 30A,TERMINAL:FEMALE,INSTRUMENT PANEL J/B |
90982-08306 |
from US $6.24 |
||
|
82210J
|
82210J
90982-08308 Fusible Link[09.2011 - 08.2013] ASL30 40A-30A-30A,FEMALE |
90982-08308 |
from US $6.56 |
||
|
82600F
|
82600F
90982-09019 Instrument Panel Fuse[09.2011 - 08.2013] ASL30 5A,MINI FUSE |
90982-09019 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09020 Fusible Link[09.2011 - 08.2013] ASL30 7.5A,MINI FUSE |
90982-09020 |
from US $0.96 |
||
|
82600F
|
82600F
90982-09021 Fusible Link[09.2011 - 08.2013] ASL30 10A,MINI FUSE |
90982-09021 |
from US $0.90 |
||
|
82600F
|
82600F
90982-09022 Instrument Panel Fuse[09.2011 - 08.2013] ASL30 15A,MINI FUSE |
90982-09022 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09023 Instrument Panel Fuse[09.2011 - 08.2013] ASL30 20A,MINI FUSE |
90982-09023 |
from US $0.86 |
||
|
82600F
|
82600F
90982-09024 Instrument Panel Fuse[09.2011 - 08.2013] ASL30 25A,MINI FUSE |
90982-09024 |
from US $0.88 |
||
|
82600F
|
82600F
90982-09025 Instrument Panel Fuse[09.2011 - 08.2013] ASL30 30A,MINI FUSE |
90982-09025 |
from US $0.96 |
||
|
82672B
|
82672B
82672-08090
Cover, Junction Block
[09.2011 - 08.2013] ASL30 |
82672-08090 |
— | ||
|
82730
|
82730
82730-08090 Block Assy, Instrument Panel JunctionINSTRUMENT PANEL JUNCTION [09.2011 - 08.2013] ASL30 |
82730-08090 |
US $281.01 |
||
|
82877
|
82877
82877-08010
Box, Computer Integration, Rh
[09.2011 - 08.2013] ASL30 |
82877-08010 |
— | ||
|
84340
|
84340
84340-69075 Switch Assy, Stop Lamp[09.2011 - 01.2012] ASL30,GSL30 |
84340-69075 |
US $38 |
||
|
84345
|
84345
84345-08010
Adjuster, Stop Lamp Switch Mounting
[02.2012 - 08.2013] ASL30 |
84345-08010 |
— | ||
|
84345
|
84345
84345-51010 Adjuster, Stop Lamp Switch Mounting[09.2011 - 01.2012] ASL30,GSL30 |
84345-51010 |
from US $3.52 |
||
|
84550
|
84550
84550-04030 Switch Assy, Parking BrakePARKING BRAKE [09.2011 - 08.2013] ASL30 |
84550-04030 |
US $38.76 |
||
|
85903
|
85903
85903-06010
Computer Sub-Assy, Shift Lock Control
[09.2011 - 08.2013] ASL30,GSL30 |
85903-06010 |
— | ||
|
89111
|
89111
89111-08010
Computer, Network Gateway
[09.2011 - 07.2012] ASL30,GSL30; GSL30 STARTING SYSTEM-PUSH BUTTON |
89111-08010 |
— | ||
| replacement | |||||
|
89111
|
89111
89111-08012
Computer, Network Gateway
[09.2011 - 07.2012] ASL30,GSL30; GSL30 STARTING SYSTEM-PUSH BUTTON |
89111-08012 |
— | ||
|
89111
|
89111
89111-08011
Computer, Network Gateway
[08.2012 - 08.2013] ASL30,GSL30; GSL30 STARTING SYSTEM-PUSH BUTTON |
89111-08011 |
— | ||
| replacement | |||||
|
89111
|
89111
89111-08012
Computer, Network Gateway
[08.2012 - 08.2013] ASL30,GSL30; GSL30 STARTING SYSTEM-PUSH BUTTON |
89111-08012 |
— | ||
|
89221
|
89221
89220-08240
Computer, Multiplex Network Body
[09.2011 - 08.2013] ASL30 |
89220-08240 |
— | ||
|
90178A0014
|
90178A0014
90178-A0014
New Genuine Part
|
90178-A0014 |
— | ||
|
90183A0002
|
90183A0002
90183-A0002
New Genuine Part
|
90183-A0002 |
— | ||
|
9008011699
|
9008011699
90080-11699
Bolt, W/washer
|
90080-11699 |
— | ||
|
9008015078
|
9008015078
90080-15078
New Genuine Part
|
90080-15078 |
— | ||
