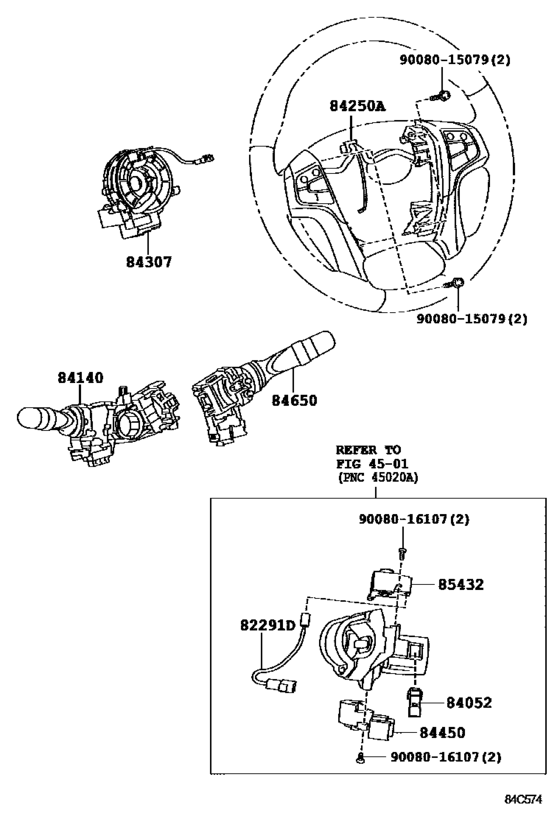

Switch & Relay & Computer ([09.2011 - 09.2014] STEERING (1109-1409)) Diagram Toyota SIENNA
- Year
- 2011 - 2013
- Sales region
- General
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82291D
|
82291D
82291-02020
Wire, To Solenoid
[09.2011 - 08.2013] ASL30,GSL30 |
82291-02020 |
— | ||
|
84052
|
84052
84052-71010 Switch Assy, Un-Lock Warning[09.2011 - 08.2013] ASL30,GSL30 |
84052-71010 |
US $25.68 |
||
|
84140
|
84140
84140-08140
Switch Assy, Headlamp Dimmer
[09.2011 - 08.2013] ASL30 |
84140-08140 |
— | ||
|
84250A
|
84250A
84250-08050-B0 Switch Assy, Steering PadSTEERING PAD [09.2011 - 08.2013] ASL30,GSL30 LT.GRAY,TRIM1# |
84250-08050-B0 |
US $192.19 |
||
|
84250A
|
84250A
84250-08050-E0
Switch Assy, Steering Pad
[09.2011 - 08.2013] ASL30,GSL30 GREGE,TRIM4# |
84250-08050-E0 |
— | ||
|
84307
|
84307
84307-08020 Cable Sub-Assy, Spiral W/sensorSPIRAL W/SENSOR [09.2011 - 08.2013] ASL30 |
84307-08020 |
from US $489.22 |
||
|
84450
|
84450
84450-12200 Switch Assy, Ignition Or Starter[09.2011 - 08.2013] ASL30,GSL30 |
84450-12200 |
from US $49.25 |
||
|
84650
|
84650
84652-0E050 Switch Assy, Windshield WiperWINDSHIELD WIPER [09.2011 - 08.2013] ASL30 |
84652-0E050 |
US $111.05 |
||
|
85432
|
85432
85432-71010 Solenoid, Key Inter Lock[09.2011 - 08.2013] ASL30,GSL30 |
85432-71010 |
US $40.33 |
||
|
9008015079
|
9008015079
90080-15079 SCREW WWASHER |
90080-15079 |
US $0.73 |
||
|
9008016107
|
9008016107
90080-16107
New Genuine Part
|
90080-16107 |
— |
