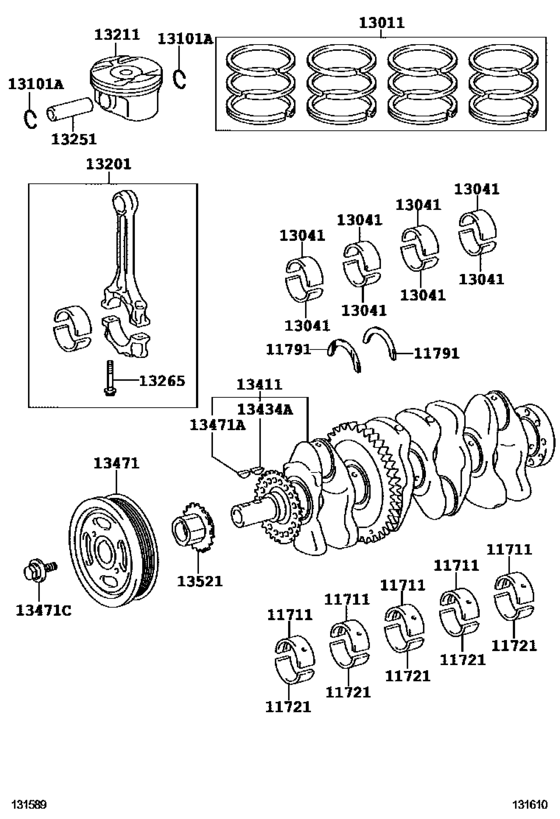

Crankshaft & Piston ([05.2010 - ] (1005- )1ARFE) Diagram Toyota SIENNA
- Year
- 2010 - 2013
- Sales region
- U.S.A.
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- DESTINATION
- USA
- From
- 05.2010
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11711
|
11711
11711-0V010-01
Bearing, Crankshaft
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 1,*212:REFER R/M |
11711-0V010-01 |
— | ||
|
11711
|
11711
11711-0V010-02
Bearing, Crankshaft
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 2,*212:REFER R/M |
11711-0V010-02 |
— | ||
|
11711
|
11711
11711-0V010-03
Bearing, Crankshaft
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 3,*212:REFER R/M |
11711-0V010-03 |
— | ||
|
11711
|
11711
11711-0V010-04
Bearing, Crankshaft
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 4,*212:REFER R/M |
11711-0V010-04 |
— | ||
|
11711
|
11711
11711-0V030-01
Bearing, Crankshaft
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 1,(L),*212:REFER R/M |
11711-0V030-01 |
— | ||
|
11711
|
11711
11711-0V030-02
Bearing, Crankshaft
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 2,(L),*212:REFER R/M |
11711-0V030-02 |
— | ||
|
11711
|
11711
11711-0V030-03
Bearing, Crankshaft
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 3,(L),*212:REFER R/M |
11711-0V030-03 |
— | ||
|
11711
|
11711
11711-0V030-04
Bearing, Crankshaft
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 4,(L),*212:REFER R/M |
11711-0V030-04 |
— | ||
|
11711
|
11711
11711-36020-01 Bearing, Crankshaft[05.2010 - 02.2012] 1ARFE..ASL30 MARK 1,*107:REFER R/M |
11711-36020-01 |
from US $9.52 |
||
|
11711
|
11711
11711-36020-02 Bearing, Crankshaft[05.2010 - 02.2012] 1ARFE..ASL30 MARK 2,*107:REFER R/M |
11711-36020-02 |
from US $9.95 |
||
|
11711
|
11711
11711-36020-03 Bearing, Crankshaft[05.2010 - 02.2012] 1ARFE..ASL30 MARK 3,*107:REFER R/M |
11711-36020-03 |
from US $11.74 |
||
|
11711
|
11711
11711-36020-04 Bearing, Crankshaft[05.2010 - 02.2012] 1ARFE..ASL30 MARK 4,*107:REFER R/M |
11711-36020-04 |
US $18.93 |
||
|
11711
|
11711
11711-36050-01 Bearing, Crankshaft[02.2012 - 08.2013] 1ARFE..ASL30 MARK 1,*107:REFER R/M |
11711-36050-01 |
from US $7.41 |
||
|
11711
|
11711
11711-36050-02 Bearing, Crankshaft[02.2012 - 08.2013] 1ARFE..ASL30 MARK 2,*107:REFER R/M |
11711-36050-02 |
from US $7.49 |
||
|
11711
|
11711
11711-36050-03 Bearing, Crankshaft[02.2012 - 08.2013] 1ARFE..ASL30 MARK 3,*107:REFER R/M |
11711-36050-03 |
from US $8.03 |
||
|
11711
|
11711
11711-36050-04 Bearing, Crankshaft[02.2012 - 08.2013] 1ARFE..ASL30 MARK 4,*107:REFER R/M |
11711-36050-04 |
US $13.10 |
||
|
11721
|
11721
11721-0V010-01
Bearing, Crankshaft, No.2
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 1,*212:REFER R/M |
11721-0V010-01 |
— | ||
|
11721
|
11721
11721-0V010-02
Bearing, Crankshaft, No.2
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 2,*212:REFER R/M |
11721-0V010-02 |
— | ||
|
11721
|
11721
11721-0V010-03
Bearing, Crankshaft, No.2
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 3,*212:REFER R/M |
11721-0V010-03 |
— | ||
|
11721
|
11721
11721-0V010-04
Bearing, Crankshaft, No.2
[09.2011 - 05.2013] 1ARFE..ASL30 MARK 4,*212:REFER R/M |
11721-0V010-04 |
— | ||
|
11721
|
11721
11721-0V030-01
Bearing, Crankshaft, No.2
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 1,(L),*212:REFER R/M |
11721-0V030-01 |
— | ||
|
11721
|
11721
11721-0V030-02
Bearing, Crankshaft, No.2
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 2,(L),*212:REFER R/M |
11721-0V030-02 |
— | ||
|
11721
|
11721
11721-0V030-03
Bearing, Crankshaft, No.2
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 3,(L),*212:REFER R/M |
11721-0V030-03 |
— | ||
|
11721
|
11721
11721-0V030-04
Bearing, Crankshaft, No.2
[05.2013 - 08.2013] 1ARFE..ASL30 MARK 4,(L),*212:REFER R/M |
11721-0V030-04 |
— | ||
|
11721
|
11721
11721-36020-01 Bearing, Crankshaft, No.2[05.2010 - 02.2012] 1ARFE..ASL30 MARK 1,*107:REFER R/M |
11721-36020-01 |
from US $16.13 |
||
|
11721
|
11721
11721-36020-02 Bearing, Crankshaft, No.2[05.2010 - 02.2012] 1ARFE..ASL30 MARK 2,*107:REFER R/M |
11721-36020-02 |
from US $17.22 |
||
|
11721
|
11721
11721-36020-03 Bearing, Crankshaft, No.2[05.2010 - 02.2012] 1ARFE..ASL30 MARK 3,*107:REFER R/M |
11721-36020-03 |
from US $18.93 |
||
|
11721
|
11721
11721-36020-04 Bearing, Crankshaft, No.2[05.2010 - 02.2012] 1ARFE..ASL30 MARK 4,*107:REFER R/M |
11721-36020-04 |
US $18.93 |
||
|
11721
|
11721
11721-36050-01 Bearing, Crankshaft, No.2[02.2012 - 08.2013] 1ARFE..ASL30 MARK 1,*107:REFER R/M |
11721-36050-01 |
from US $8.13 |
||
|
11721
|
11721
11721-36050-02 Bearing, Crankshaft, No.2[02.2012 - 08.2013] 1ARFE..ASL30 MARK 2,*107:REFER R/M |
11721-36050-02 |
from US $8.07 |
||
|
11721
|
11721
11721-36050-03 Bearing, Crankshaft, No.2[02.2012 - 08.2013] 1ARFE..ASL30 MARK 3,*107:REFER R/M |
11721-36050-03 |
from US $8.05 |
||
|
11721
|
11721
11721-36050-04 Bearing, Crankshaft, No.2[02.2012 - 08.2013] 1ARFE..ASL30 MARK 4,*107:REFER R/M |
11721-36050-04 |
from US $7.92 |
||
|
11791
|
11791
11791-0V010
Washer, Crankshaft Thrust, Upper
[09.2011 - 08.2013] 1ARFE..ASL30 STD,*212 |
11791-0V010 |
— | ||
|
11791
|
11791
11791-36010 Washer, Crankshaft Thrust, Upper[05.2010 - 08.2013] 1ARFE..ASL30 STD,*107 |
11791-36010 |
from US $16.91 |
||
|
13011
|
13011
13011-0V040
Ring Set, Piston
[09.2011 - 08.2013] 1ARFE..ASL30 STD,*212 |
13011-0V040 |
— | ||
|
13011
|
13011
13011-36020 Ring Set, PistonPISTON [05.2010 - 12.2012] 1ARFE..ASL30 STD,*107 |
13011-36020 |
US $216.94 |
||
| replacement | |||||
|
13011
|
13011
13011-36061 Ring Set, Piston[05.2010 - 12.2012] 1ARFE..ASL30 STD,*107 |
13011-36061 |
US $180.54 |
||
|
13011
|
13011
13011-36060 Ring Set, Piston[12.2012 - 08.2013] 1ARFE..ASL30 STD,*107 |
13011-36060 |
US $180.54 |
||
| replacement | |||||
|
13011
|
13011
13011-36061 Ring Set, Piston[12.2012 - 08.2013] 1ARFE..ASL30 STD,*107 |
13011-36061 |
US $180.54 |
||
|
13041
|
13041
13281-0V010-01
Bearing, Connecting Rod
[09.2011 - 08.2013] 1ARFE..ASL30 MARK 1,*212:REFER R/M |
13281-0V010-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-0V011-01
Bearing, Connecting Rod
[09.2011 - 08.2013] 1ARFE..ASL30 MARK 1,*212:REFER R/M |
13281-0V011-01 |
— | ||
|
13041
|
13041
13281-0V010-02
Bearing, Connecting Rod
[09.2011 - 08.2013] 1ARFE..ASL30 MARK 2,*212:REFER R/M |
13281-0V010-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-0V011-02
Bearing, Connecting Rod
[09.2011 - 08.2013] 1ARFE..ASL30 MARK 2,*212:REFER R/M |
13281-0V011-02 |
— | ||
|
13041
|
13041
13281-0V010-03
Bearing, Connecting Rod
[09.2011 - 08.2013] 1ARFE..ASL30 MARK 3,*212:REFER R/M |
13281-0V010-03 |
— | ||
|
13041
|
13041
13281-36020-01
Bearing, Connecting Rod
[05.2010 - 08.2013] 1ARFE..ASL30 MARK 1,*107:REFER R/M |
13281-36020-01 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-36021-01 Bearing, Connecting Rod[05.2010 - 08.2013] 1ARFE..ASL30 MARK 1,*107:REFER R/M |
13281-36021-01 |
from US $6.49 |
||
|
13041
|
13041
13281-36020-02
Bearing, Connecting Rod
[05.2010 - 08.2013] 1ARFE..ASL30 MARK 2,*107:REFER R/M |
13281-36020-02 |
— | ||
| replacement | |||||
|
13041
|
13041
13281-36021-02 Bearing, Connecting Rod[05.2010 - 08.2013] 1ARFE..ASL30 MARK 2,*107:REFER R/M |
13281-36021-02 |
from US $6.16 |
||
|
13041
|
13041
13281-36020-03 Bearing, Connecting Rod[05.2010 - 08.2013] 1ARFE..ASL30 MARK 3,*107:REFER R/M |
13281-36020-03 |
US $9.32 |
||
| replacement | |||||
|
13041
|
13041
13281-36021-03 Bearing, Connecting Rod[05.2010 - 08.2013] 1ARFE..ASL30 MARK 3,*107:REFER R/M |
13281-36021-03 |
from US $6.38 |
||
|
13101A
|
13101A
90520-22025 Ring, Hole Snap(For Piston Pin)[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
90520-22025 |
from US $1.76 |
||
|
13101A
|
13101A
90520-A0004
Ring, Hole Snap(For Piston Pin)
[09.2011 - 08.2013] 1ARFE..ASL30 *212 |
90520-A0004 |
— | ||
|
13201
|
13201
13201-09A45-A0
Rod Sub-Assy, Connecting
[09.2011 - 08.2013] 1ARFE..ASL30 MARK A,*212:REFER R/M |
13201-09A45-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09A46-A0
Rod Sub-Assy, Connecting
[09.2011 - 08.2013] 1ARFE..ASL30 MARK A,*212:REFER R/M |
13201-09A46-A0 |
— | ||
|
13201
|
13201
13201-09A45-B0
Rod Sub-Assy, Connecting
[09.2011 - 08.2013] 1ARFE..ASL30 MARK B,*212:REFER R/M |
13201-09A45-B0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09A46-B0
Rod Sub-Assy, Connecting
[09.2011 - 08.2013] 1ARFE..ASL30 MARK B,*212:REFER R/M |
13201-09A46-B0 |
— | ||
|
13201
|
13201
13201-09A45-C0
Rod Sub-Assy, Connecting
[09.2011 - 08.2013] 1ARFE..ASL30 MARK C,*212:REFER R/M |
13201-09A45-C0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-09A46-C0
Rod Sub-Assy, Connecting
[09.2011 - 08.2013] 1ARFE..ASL30 MARK C,*212:REFER R/M |
13201-09A46-C0 |
— | ||
|
13201
|
13201
13201-39225-A0
Rod Sub-Assy, Connecting
[05.2010 - 08.2013] 1ARFE..ASL30 MARK A,*107:REFER R/M |
13201-39225-A0 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-39226-A0 Rod Sub-Assy, Connecting[05.2010 - 08.2013] 1ARFE..ASL30 MARK A,*107:REFER R/M |
13201-39226-A0 |
from US $122.30 |
||
|
13201
|
13201
13201-39225-B0 Rod Sub-Assy, Connecting[05.2010 - 08.2013] 1ARFE..ASL30 MARK B,*107:REFER R/M |
13201-39225-B0 |
US $160.16 |
||
| replacement | |||||
|
13201
|
13201
13201-39226-B0 Rod Sub-Assy, Connecting[05.2010 - 08.2013] 1ARFE..ASL30 MARK B,*107:REFER R/M |
13201-39226-B0 |
US $126.67 |
||
|
13201
|
13201
13201-39225-C0 Rod Sub-Assy, Connecting[05.2010 - 08.2013] 1ARFE..ASL30 MARK C,*107:REFER R/M |
13201-39225-C0 |
US $160.16 |
||
| replacement | |||||
|
13201
|
13201
13201-39226-C0 Rod Sub-Assy, Connecting[05.2010 - 08.2013] 1ARFE..ASL30 MARK C,*107:REFER R/M |
13201-39226-C0 |
from US $122.30 |
||
|
13211
|
13211
13211-0V070-A0
Piston
[09.2011 - 08.2013] 1ARFE..ASL30 MARK A,*212:REFER R/M |
13211-0V070-A0 |
— | ||
|
13211
|
13211
13211-0V070-B0
Piston
[09.2011 - 08.2013] 1ARFE..ASL30 MARK B,*212:REFER R/M |
13211-0V070-B0 |
— | ||
|
13211
|
13211
13211-0V070-C0
Piston
[09.2011 - 08.2013] 1ARFE..ASL30 MARK C,*212:REFER R/M |
13211-0V070-C0 |
— | ||
|
13211
|
13211
13211-36040-A0
Piston
[05.2010 - 11.2010] 1ARFE..ASL30 MARK A,*107:REFER R/M |
13211-36040-A0 |
— | ||
| replacement | |||||
|
13211
|
13211
13211-36041-A0 Piston[05.2010 - 11.2010] 1ARFE..ASL30 MARK A,*107:REFER R/M |
13211-36041-A0 |
from US $57.93 |
||
|
13211
|
13211
13211-36040-B0
Piston
[05.2010 - 11.2010] 1ARFE..ASL30 MARK B,*107:REFER R/M |
13211-36040-B0 |
— | ||
| replacement | |||||
|
13211
|
13211
13211-36041-B0 Piston[05.2010 - 11.2010] 1ARFE..ASL30 MARK B,*107:REFER R/M |
13211-36041-B0 |
from US $60.45 |
||
|
13211
|
13211
13211-36040-C0
Piston
[05.2010 - 11.2010] 1ARFE..ASL30 MARK C,*107:REFER R/M |
13211-36040-C0 |
— | ||
| replacement | |||||
|
13211
|
13211
13211-36041-C0 Piston[05.2010 - 11.2010] 1ARFE..ASL30 MARK C,*107:REFER R/M |
13211-36041-C0 |
US $62.17 |
||
|
13211
|
13211
13211-36041-A0 Piston[11.2010 - 08.2013] 1ARFE..ASL30 MARK A,*107:REFER R/M |
13211-36041-A0 |
from US $57.93 |
||
|
13211
|
13211
13211-36041-B0 Piston[11.2010 - 08.2013] 1ARFE..ASL30 MARK B,*107:REFER R/M |
13211-36041-B0 |
from US $60.45 |
||
|
13211
|
13211
13211-36041-C0 Piston[11.2010 - 08.2013] 1ARFE..ASL30 MARK C,*107:REFER R/M |
13211-36041-C0 |
US $62.17 |
||
|
13251
|
13251
13251-28020-A0 Pin, Piston[05.2010 - 08.2013] 1ARFE..ASL30 MARK A,*107:REFER R/M |
13251-28020-A0 |
from US $10.41 |
||
|
13251
|
13251
13251-28020-B0 Pin, Piston[05.2010 - 08.2013] 1ARFE..ASL30 MARK B,*107:REFER R/M |
13251-28020-B0 |
from US $10.61 |
||
|
13251
|
13251
13251-28020-C0 Pin, Piston[05.2010 - 08.2013] 1ARFE..ASL30 MARK C,*107:REFER R/M |
13251-28020-C0 |
from US $10.74 |
||
|
13265
|
13265
13265-31020 Bolt, Connecting Rod[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
13265-31020 |
from US $3.30 |
||
|
13411
|
13411
13401-0V040
Crankshaft
[09.2011 - 05.2013] 1ARFE..ASL30 *212 |
13401-0V040 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-36021 Crankshaft[09.2011 - 05.2013] 1ARFE..ASL30 *212 |
13401-36021 |
US $1,156.06 |
||
|
13411
|
13411
13401-0V041
Crankshaft
[05.2013 - 08.2013] 1ARFE..ASL30 *212 |
13401-0V041 |
— | ||
|
13411
|
13411
13401-36020
Crankshaft
[05.2010 - 02.2012] 1ARFE..ASL30 *107 |
13401-36020 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-36021 Crankshaft[05.2010 - 02.2012] 1ARFE..ASL30 *107 |
13401-36021 |
US $1,156.06 |
||
|
13411
|
13411
13401-36021 Crankshaft[02.2012 - 08.2013] 1ARFE..ASL30 *107 |
13401-36021 |
US $1,156.06 |
||
|
13434A
|
13434A
95161-30516 Key(For Oil Pump Drive Spline)[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
95161-30516 |
from US $1.17 |
||
|
13471
|
13471
13470-0V020
Pulley Assy, Crankshaft
[09.2011 - 08.2013] 1ARFE..ASL30 (L),*212 |
13470-0V020 |
— | ||
|
13471
|
13471
13470-36010 Pulley, CrankshaftCRANKSHAFT [05.2010 - 08.2013] 1ARFE..ASL30 *107 |
13470-36010 |
from US $139.78 |
||
|
13471A
|
13471A
95161-30516 Key(For Oil Pump Drive Spline)[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
95161-30516 |
from US $1.17 |
||
|
13471C
|
13471C
90119-16020 Bolt(For Crankshaft Pulley Set)[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
90119-16020 |
from US $5.44 |
||
|
13521
|
13521
13521-0V010
Gear Or Sprocket, Crankshaft Timing
[09.2011 - 08.2013] 1ARFE..ASL30 (L),*212 |
13521-0V010 |
— | ||
|
13521
|
13521
13521-36010 Gear Or Sprocket, Crankshaft Timing[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
13521-36010 |
from US $11.86 |
||
