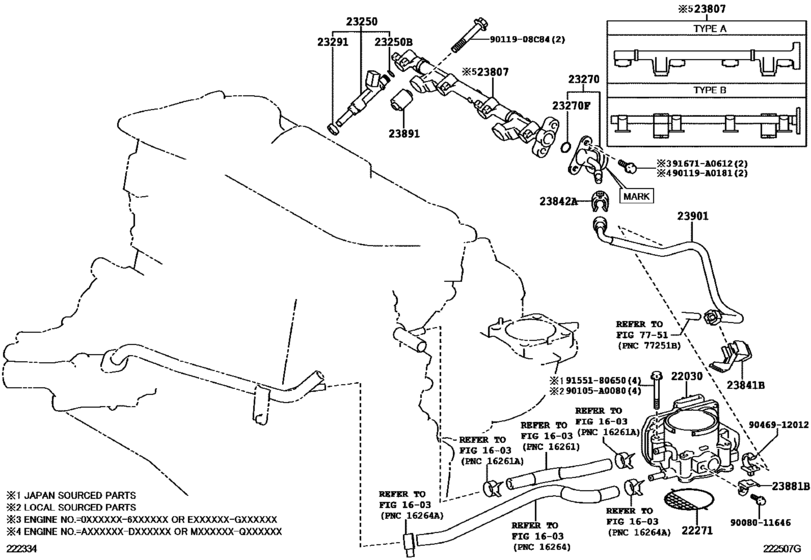

Fuel Injection System ([05.2010 - ] (1005- )1ARFE) Diagram Toyota SIENNA
- Year
- 2010 - 2013
- Sales region
- U.S.A.
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- DESTINATION
- USA
- From
- 05.2010
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22030
|
22030
22030-0V010
Body Assy, Throttle W/motor
[09.2011 - 08.2013] 1ARFE..ASL30 *212 |
22030-0V010 |
— | ||
|
22030
|
22030
22030-36010 Body Assy, Throttle W/motor[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
22030-36010 |
US $737.80 |
||
|
22271
|
22271
22271-0V010
Gasket, Throttle Body
[09.2011 - 08.2013] 1ARFE..ASL30 *212 |
22271-0V010 |
— | ||
|
22271
|
22271
22271-36010 Gasket, Throttle Body[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
22271-36010 |
US $3.26 |
||
|
23250
|
23250
23209-09175
Injector Assy, Fuel
[09.2011 - 08.2013] 1ARFE..ASL30 *212 |
23209-09175 |
— | ||
|
23250
|
23250
23209-39175 Injector Assy, Fuel[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
23209-39175 |
from US $165.89 |
||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
90301-07037 |
from US $2.20 |
||
|
23250B
|
23250B
90301-A0036
Ring, O(For Fuel Injector)
[04.2012 - 08.2013] 1ARFE..ASL30 (L),*212 |
90301-A0036 |
— | ||
|
23270
|
23270
23270-36010 Damper Assy, Fuel Pressure PulsationFUEL PRESSURE PULSATION [05.2010 - 09.2011] 1ARFE..ASL30 *107MARK 23270-36010 |
23270-36010 |
US $122.30 |
||
| replacement | |||||
|
23270
|
23270
23270-36031 Damper Assy, Fuel Pressure Pulsation[05.2010 - 09.2011] 1ARFE..ASL30 *107MARK 23270-36010 |
23270-36031 |
US $70.67 |
||
|
23270
|
23270
23270-36031 Damper Assy, Fuel Pressure Pulsation[09.2011 - 08.2013] 1ARFE..ASL30 *212MARK 23270-36031,*107MARK 23270-36031 |
23270-36031 |
US $70.67 |
||
|
23270F
|
23270F
90301-07037 Ring, O(For Fuel Injector)[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
90301-07037 |
from US $2.20 |
||
|
23291
|
23291
23291-0V020
Insulator, Injector Vibration
[09.2011 - 08.2013] 1ARFE..ASL30 (L),*212 |
23291-0V020 |
— | ||
|
23291
|
23291
23291-28020 Insulator, Injector Vibration[05.2010 - 08.2013] 1ARFE..ASL30 *107 |
23291-28020 |
from US $3.90 |
||
|
23807
|
23807
23814-36010 Pipe Sub-Assy, Fuel DeliveryFUEL DELIVERY [05.2010 - 10.2011] 1ARFE..ASL30 *107T/P A:REF.ILLUST |
23814-36010 |
US $87.36 |
||
| replacement | |||||
|
23807
|
23807
23814-36040 Pipe Sub-Assy, Fuel Delivery[05.2010 - 10.2011] 1ARFE..ASL30 *107T/P A:REF.ILLUST |
23814-36040 |
US $94.64 |
||
|
23807
|
23807
23814-36040 Pipe Sub-Assy, Fuel Delivery[09.2011 - 08.2013] 1ARFE..ASL30 *212 |
23814-36040 |
US $94.64 |
||
|
23841B
|
23841B
23841-31070 Clamp, Fuel Pipe, No.1(For Efi)FUEL PIPE, NO.1(FOR EFI) [05.2010 - 08.2013] 1ARFE..ASL30 |
23841-31070 |
US $5.09 |
||
|
23842A
|
23842A
23842-28010 Clamp, Fuel Pipe, No.1(For Efi)[05.2010 - 08.2013] 1ARFE..ASL30 |
23842-28010 |
from US $6.16 |
||
|
23881B
|
23881B
23881-0V010
Bracket, Fuel Hose
[05.2010 - 08.2013] 1ARFE..ASL30 |
23881-0V010 |
— | ||
|
23891
|
23891
23891-36010 Spacer, No.1(For Delivery Pipe)[09.2011 - 08.2013] 1ARFE..ASL30 *212 |
23891-36010 |
US $3.84 |
||
|
23891
|
23891
23891-37010 Spacer, No.1(For Delivery Pipe)[05.2010 - 10.2011] 1ARFE..ASL30 *107PNC 23807=TYPE A |
23891-37010 |
US $3.84 |
||
|
23901
|
23901
23901-0V050
Tube Sub-Assy, Fuel
[05.2010 - 08.2013] 1ARFE..ASL30 |
23901-0V050 |
— | ||
|
90105A0080
|
90105A0080
90105-A0080
New Genuine Part
|
90105-A0080 |
— | ||
|
90119A0181
|
90119A0181
90119-A0181
New Genuine Part
|
90119-A0181 |
— | ||
|
91671A0612
|
91671A0612
91671-A0612 BOLT FLANGE |
91671-A0612 |
from US $0.66 |
||
|
9011908C84
|
9011908C84
90119-08C84 Bolt(For Camshaft Housing To Cylinder Head, Rh) |
90119-08C84 |
US $0.87 |
||
|
9008011646
|
9008011646
90080-11646 New Genuine Part |
90080-11646 |
from US $0.87 |
||
|
9046912012
|
9046912012
90469-12012 Clamp Or Clip(For Fuel Hose) |
90469-12012 |
from US $3.36 |
||
|
9155180650
|
9155180650
91551-80650 BOLT FLANGE |
91551-80650 |
US $1.28 |
||
