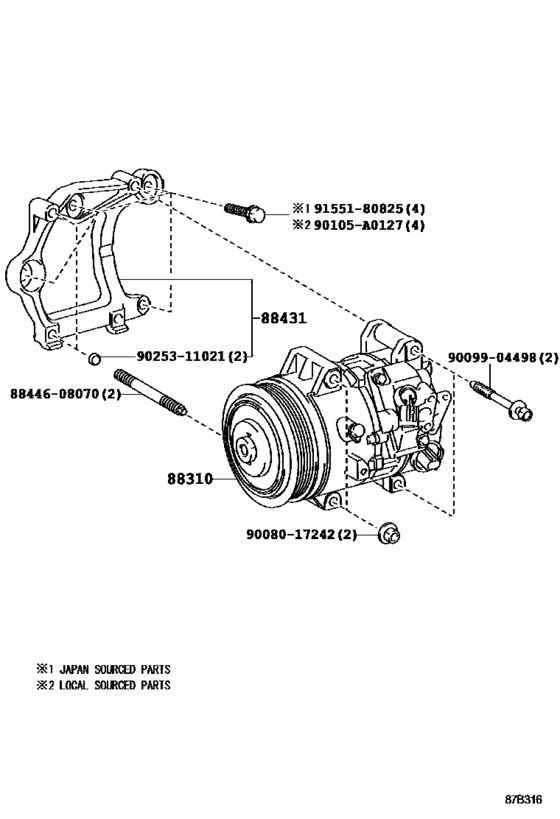

Heating & Air Conditioning - Compressor ([05.2010 - 08.2013] (1005-1308)ASL30) Diagram Toyota SIENNA
- Year
- 2010 - 2013
- Sales region
- U.S.A.
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- DESTINATION
- USA
- From
- 05.2010
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88310
|
88310
88310-08080
Compressor Assy, W/pulley
[05.2010 - 07.2010] ASL30 |
88310-08080 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-08083
Compressor Assy, W/pulley
[05.2010 - 07.2010] ASL30 |
88310-08083 |
— | ||
|
88310
|
88310
88310-08081
Compressor Assy, W/pulley
[08.2010 - 10.2010] ASL30 |
88310-08081 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-08083
Compressor Assy, W/pulley
[08.2010 - 10.2010] ASL30 |
88310-08083 |
— | ||
|
88310
|
88310
88310-08082
Compressor Assy, W/pulley
[11.2010 - 09.2012] ASL30 |
88310-08082 |
— | ||
| replacement | |||||
|
88310
|
88310
88310-08083
Compressor Assy, W/pulley
[11.2010 - 09.2012] ASL30 |
88310-08083 |
— | ||
|
88310
|
88310
88310-08083
Compressor Assy, W/pulley
[10.2012 - 08.2013] ASL30 |
88310-08083 |
— | ||
|
88431
|
88431
12502-0V040
Bracket, Compressor Mounting, No.1
[11.2012 - 08.2013] ASL30 (L) |
12502-0V040 |
— | ||
|
88431
|
88431
12502-36010 Bracket, Compressor Mounting, No.1COMPRESSOR MOUNTING, NO.1 [05.2010 - 11.2012] ASL30 |
12502-36010 |
US $75.71 |
||
|
90105A0127
|
90105A0127
90105-A0127
Bolt(For Cylinder Head Set Sub)
|
90105-A0127 |
— | ||
|
8844608070
|
8844608070
88446-08070 Bolt, Idle Pulley |
88446-08070 |
US $2.18 |
||
|
9008017242
|
9008017242
90080-17242
New Genuine Part
|
90080-17242 |
— | ||
|
9009904498
|
9009904498
90099-04498 New Genuine Part |
90099-04498 |
US $2.20 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.50 |
||
|
9155180825
|
9155180825
91551-80825 Bolt(For Cylinder Head Set Sub) |
91551-80825 |
from US $0.82 |
||
