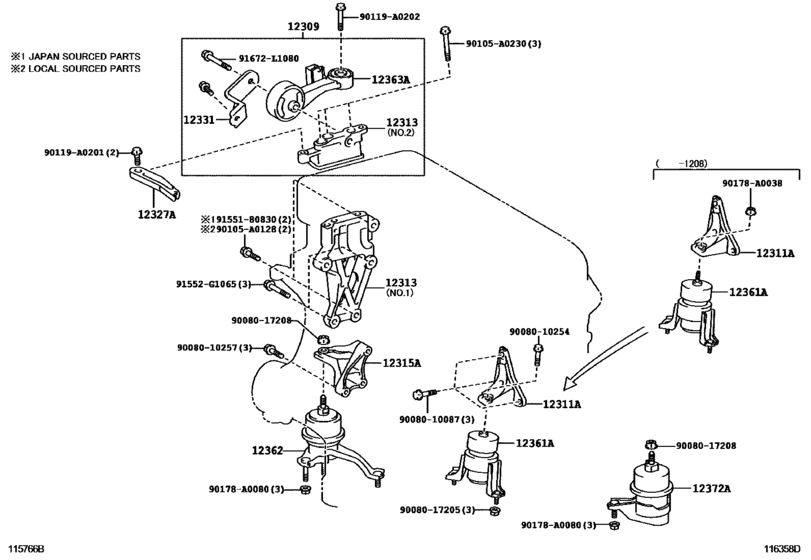

Mounting ([05.2010 - ] (1005- )1ARFE) Diagram Toyota SIENNA
- Year
- 2010 - 2013
- Sales region
- U.S.A.
- Frame
- ASL30
- grade
- LE
- body
- WG
- ENGINE
- 1ARFE
- DESTINATION
- USA
- From
- 05.2010
- To
- 08.2013
- Gear Shift Type
- 6FC
- Seating Capacity
- 08S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12309
|
12309
12309-0V040
Rod Sub-Assy, Engine Moving Control
[05.2010 - 12.2010] 1ARFE..ASL30 |
12309-0V040 |
— | ||
| replacement | |||||
|
12309
|
12309
12309-0V041
Rod Sub-Assy, Engine Moving Control
[05.2010 - 12.2010] 1ARFE..ASL30 |
12309-0V041 |
— | ||
|
12309
|
12309
12309-0V041
Rod Sub-Assy, Engine Moving Control
[01.2011 - 08.2013] 1ARFE..ASL30 |
12309-0V041 |
— | ||
|
12311A
|
12311A
12311-36020 Bracket, Engine Mounting, Front(For Transverse Engine)ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) [05.2010 - 08.2013] 1ARFE..ASL30 |
12311-36020 |
US $38.58 |
||
|
12313
|
12313
12313-0V040
Bracket, Engine Mounting
[09.2011 - 08.2013] 1ARFE..ASL30 *212,NO.1,(L) |
12313-0V040 |
— | ||
|
12313
|
12313
12313-0V050
Bracket, Engine Mounting Control(For Transverse Engine)
[05.2010 - 08.2013] 1ARFE..ASL30 NO.2:REFER ILLUST. |
12313-0V050 |
— | ||
|
12313
|
12313
12313-36010 Bracket, Engine Mounting[05.2010 - 08.2013] 1ARFE..ASL30 *107,NO.1 |
12313-36010 |
US $50.09 |
||
|
12315A
|
12315A
12319-0V020
Bracket, Engine Mounting, Rh(For Transverse Engine)
[05.2010 - 08.2013] 1ARFE..ASL30 |
12319-0V020 |
— | ||
|
12327A
|
12327A
12327-0V010 Stay, Engine Mounting, No.2 Rh[05.2010 - 08.2013] 1ARFE..ASL30 |
12327-0V010 |
US $23.73 |
||
|
12331
|
12331
12331-0V010
Stay, Engine Mounting, No.3 Rh
[05.2010 - 08.2013] 1ARFE..ASL30 |
12331-0V010 |
— | ||
|
12361A
|
12361A
12361-0V030
Insulator, Engine Mounting, Front(For Transverse Engine)
[05.2010 - 08.2012] 1ARFE..ASL30 |
12361-0V030 |
— | ||
|
12361A
|
12361A
12361-0V031
Insulator, Engine Mounting, Front(For Transverse Engine)
[08.2012 - 08.2013] 1ARFE..ASL30 |
12361-0V031 |
— | ||
|
12362
|
12362
12362-0V040
Insulator, Engine Mounting, Rh(For Transverse Engine)
[05.2010 - 08.2013] 1ARFE..ASL30 |
12362-0V040 |
— | ||
|
12363A
|
12363A
12363-0V040
Rod, Engine Moving Control
[05.2010 - 12.2010] 1ARFE..ASL30 |
12363-0V040 |
— | ||
| replacement | |||||
|
12363A
|
12363A
12363-0V041
Rod, Engine Moving Control
[05.2010 - 12.2010] 1ARFE..ASL30 |
12363-0V041 |
— | ||
|
12363A
|
12363A
12363-0V041
Rod, Engine Moving Control
[01.2011 - 08.2013] 1ARFE..ASL30 |
12363-0V041 |
— | ||
|
12372A
|
12372A
12372-0H090
Insulator, Engine Mounting, Lh(For Transverse Engine)
[05.2010 - 08.2013] 1ARFE..ASL30 |
12372-0H090 |
— | ||
|
90105A0128
|
90105A0128
90105-A0128
New Genuine Part
|
90105-A0128 |
— | ||
|
90105A0230
|
90105A0230
90105-A0230
Bolt(For Alternator)
|
90105-A0230 |
— | ||
|
90119A0201
|
90119A0201
90119-A0201
New Genuine Part
|
90119-A0201 |
— | ||
|
90119A0202
|
90119A0202
90119-A0202
New Genuine Part
|
90119-A0202 |
— | ||
|
90178A0038
|
90178A0038
90178-A0038
New Genuine Part
|
90178-A0038 |
— | ||
|
90178A0080
|
90178A0080
90178-A0080
Nut(For Front Stabilizer Link)
|
90178-A0080 |
— | ||
|
91552G1065
|
91552G1065
91552-G1065 BOLT FLANGE |
91552-G1065 |
US $1.93 |
||
|
91672L1080
|
91672L1080
91672-L1080 BOLT FLANGE |
91672-L1080 |
US $2.48 |
||
|
9008010087
|
9008010087
90080-10087
Bolt(For Drive Shaft Bearring Bracket Setting No.2)
|
90080-10087 |
— | ||
|
9008010254
|
9008010254
90080-10254
New Genuine Part
|
90080-10254 |
— | ||
|
9008010257
|
9008010257
90080-10257
New Genuine Part
|
90080-10257 |
— | ||
|
9008017205
|
9008017205
90080-17205
New Genuine Part
|
90080-17205 |
— | ||
|
9008017208
|
9008017208
90080-17208
New Genuine Part
|
90080-17208 |
— | ||
|
9155180830
|
9155180830
91551-80830 Bolt, Compressor, No.2 |
91551-80830 |
from US $0.88 |
||
