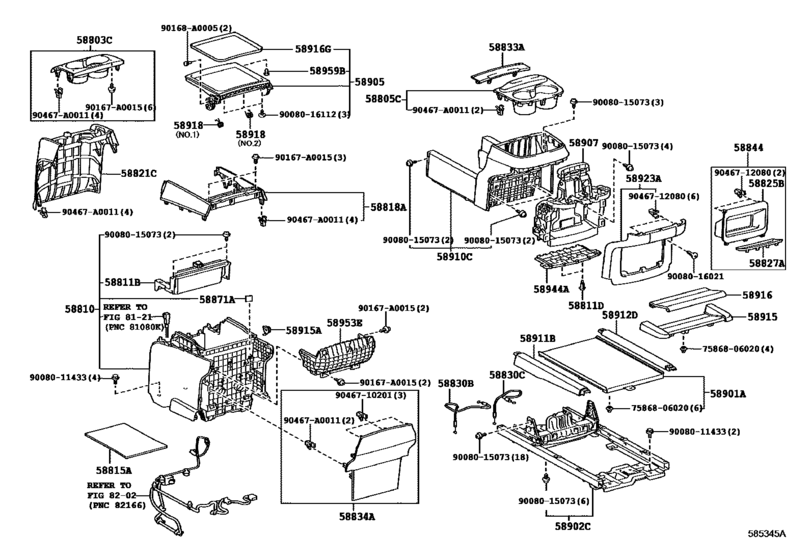

Console Box & Bracket ([09.2014 - 08.2016] (1409-1608)) Diagram Toyota SIENNA
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GSL30
- grade
- XLE
- body
- WG
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58803C
|
58803C
58803-08020-E0
Box Sub-Assy, Console Cup Holder
[09.2011 - 09.2014] GSL3# DARK BROWN,TRIM1#,4# |
58803-08020-E0 |
— | ||
|
58803C
|
58803C
58803-08040-E0
Box Sub-Assy, Console Cup Holder
[09.2014 - 08.2016] GSL3# BROWN,TRIM1#,4# |
58803-08040-E0 |
— | ||
|
58805C
|
58805C
58805-08010-E0
Panel Sub-Assy, Console, Upper Rear
[09.2011 - 09.2014] GSL3# DARK BROWN,TRIM1#,4# |
58805-08010-E0 |
— | ||
|
58805C
|
58805C
58805-08040-E0
Panel Sub-Assy, Console, Upper Rear
[09.2014 - 08.2016] GSL3# BROWN,TRIM1#,4# |
58805-08040-E0 |
— | ||
|
58810
|
58810
58801-08020-B0
Console Assy
[09.2011 - 07.2012] GSL30 LT.GRAY,TRIM1# |
58801-08020-B0 |
— | ||
| replacement | |||||
|
58810
|
58810
58801-08021-B0
Console Assy
[09.2011 - 07.2012] GSL30 LT.GRAY,TRIM1# |
58801-08021-B0 |
— | ||
|
58810
|
58810
58801-08020-E0
Console Assy
[09.2011 - 07.2012] GSL30 GREGE,TRIM4# |
58801-08020-E0 |
— | ||
|
58810
|
58810
58801-08021-B0
Console Assy
[08.2012 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58801-08021-B0 |
— | ||
|
58810
|
58810
58801-08021-E0
Console Assy
[08.2012 - 09.2014] GSL3# GREGE,TRIM4# |
58801-08021-E0 |
— | ||
|
58810
|
58810
58801-08040-C0
Console Assy
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58801-08040-C0 |
— | ||
|
58811B
|
58811B
58802-08010
Box, Console
[09.2011 - 07.2012] GSL30 |
58802-08010 |
— | ||
| replacement | |||||
|
58811B
|
58811B
58802-08011
Box, Console
[09.2011 - 07.2012] GSL30 |
58802-08011 |
— | ||
|
58811B
|
58811B
58802-08011
Box, Console
[08.2012 - 09.2014] GSL3# |
58802-08011 |
— | ||
|
58811D
|
58811D
90467-A0002-B0 Clip(For Instrument Lower Cover)[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
90467-A0002-B0 |
US $1.16 |
||
|
58811D
|
58811D
90467-A0002-C0
Clip
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
90467-A0002-C0 |
— | ||
|
58811D
|
58811D
90467-A0002-E0 Clip, Instrument Panel Finish, Lower Center[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
90467-A0002-E0 |
US $1.02 |
||
|
58815A
|
58815A
58815-08010 Carpet, Console BoxCONSOLE BOX [09.2011 - 09.2014] GSL3# |
58815-08010 |
US $8.59 |
||
|
58818A
|
58818A
58818-08010-B0
Cover, Console Box, Fr
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58818-08010-B0 |
— | ||
|
58818A
|
58818A
58818-08010-E0
Cover, Console Box, Fr
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58818-08010-E0 |
— | ||
|
58818A
|
58818A
58818-08020-C0
Cover, Console Box, Fr
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58818-08020-C0 |
— | ||
|
58821C
|
58821C
58821-08020-B0
Panel, Console, Upper
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58821-08020-B0 |
— | ||
|
58821C
|
58821C
58821-08020-E1
Panel, Console, Upper
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58821-08020-E1 |
— | ||
|
58821C
|
58821C
58821-08050-C0
Panel, Console, Upper
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58821-08050-C0 |
— | ||
|
58825B
|
58825B
58826-08020-B0
Pocket, Console Box
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58826-08020-B0 |
— | ||
|
58825B
|
58825B
58826-08020-C0
Pocket, Console Box
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58826-08020-C0 |
— | ||
|
58825B
|
58825B
58826-08020-E0
Pocket, Console Box
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58826-08020-E0 |
— | ||
|
58827A
|
58827A
58827-08010-B0
Garnish, Console Box Pocket
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58827-08010-B0 |
— | ||
|
58827A
|
58827A
58827-08010-C0
Garnish, Console Box Pocket
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58827-08010-C0 |
— | ||
|
58827A
|
58827A
58827-08010-E0
Garnish, Console Box Pocket
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58827-08010-E0 |
— | ||
|
58830B
|
58830B
58830-08010
Cable Assy, Console Box Lock Control, No.1
[09.2011 - 09.2014] GSL3# |
58830-08010 |
— | ||
|
58830C
|
58830C
58830-08020
Cable Assy, Console Box Lock Control, No.2
[09.2011 - 09.2014] GSL3# |
58830-08020 |
— | ||
|
58833A
|
58833A
58833-08010
Cover, Console, Upper
[09.2011 - 09.2014] GSL3# |
58833-08010 |
— | ||
|
58834A
|
58834A
58834-08010-B0
Cover, Console, Lower
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58834-08010-B0 |
— | ||
|
58834A
|
58834A
58834-08010-E0
Cover, Console, Lower
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58834-08010-E0 |
— | ||
|
58834A
|
58834A
58834-08020-C0
Cover, Console, Lower
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58834-08020-C0 |
— | ||
|
58844
|
58844
58844-08020-B0
Bezel, Console Box
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58844-08020-B0 |
— | ||
|
58844
|
58844
58844-08020-C0
Bezel, Console Box
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58844-08020-C0 |
— | ||
|
58844
|
58844
58844-08020-E0
Bezel, Console Box
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58844-08020-E0 |
— | ||
|
58871A
|
58871A
58871-08020
Cushion, Console Box, No.2
[09.2011 - 09.2014] GSL3# |
58871-08020 |
— | ||
|
58901A
|
58901A
58901-08010-B0
Box Sub-Assy, Console, Rear
[09.2011 - 09.2014] GSL3# GRAY,TRIM1# |
58901-08010-B0 |
— | ||
|
58901A
|
58901A
58901-08010-C0
Box Sub-Assy, Console, Rear
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58901-08010-C0 |
— | ||
|
58901A
|
58901A
58901-08010-E0
Box Sub-Assy, Console, Rear
[09.2011 - 09.2014] GSL3# ASH BROWN,TRIM4# |
58901-08010-E0 |
— | ||
|
58902C
|
58902C
58902-08010
Bracket Sub-Assy, Console Box Mounting
[09.2011 - 09.2014] GSL3# |
58902-08010 |
— | ||
|
58905
|
58905
58905-08011 Door Sub-Assy, Console Compartment[09.2011 - 09.2014] GSL3# |
58905-08011 |
US $109.71 |
||
|
58907
|
58907
58907-08010
Hinge Sub-Assy, Console Compartment Door
[09.2011 - 09.2014] GSL3# |
58907-08010 |
— | ||
|
58910C
|
58910C
58910-08010-B0
Box Assy, Console, Rear
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58910-08010-B0 |
— | ||
|
58910C
|
58910C
58910-08010-E0
Box Assy, Console, Rear
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58910-08010-E0 |
— | ||
|
58910C
|
58910C
58910-08030-C0
Box Assy, Console, Rear
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58910-08030-C0 |
— | ||
|
58911B
|
58911B
58911-08010-B0
Panel, Box, No.1
[09.2011 - 09.2014] GSL3# GRAY,TRIM1# |
58911-08010-B0 |
— | ||
|
58911B
|
58911B
58911-08010-C0
Panel, Box, No.1
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58911-08010-C0 |
— | ||
|
58911B
|
58911B
58911-08010-E0
Panel, Box, No.1
[09.2011 - 09.2014] GSL3# ASH BROWN,TRIM4# |
58911-08010-E0 |
— | ||
|
58912D
|
58912D
58912-08010-B0
Panel, Box, No.2
[09.2011 - 09.2014] GSL3# GRAY,TRIM1# |
58912-08010-B0 |
— | ||
|
58912D
|
58912D
58912-08010-C0
Panel, Box, No.2
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58912-08010-C0 |
— | ||
|
58912D
|
58912D
58912-08010-E0
Panel, Box, No.2
[09.2011 - 09.2014] GSL3# ASH BROWN,TRIM4# |
58912-08010-E0 |
— | ||
|
58915
|
58915
58819-08010-B0
Panel, Box Bottom
[09.2011 - 09.2014] GSL3# GRAY,TRIM1# |
58819-08010-B0 |
— | ||
|
58915
|
58915
58819-08010-C0
Panel, Box Bottom
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58819-08010-C0 |
— | ||
|
58915
|
58915
58819-08010-E0
Panel, Box Bottom
[09.2011 - 09.2014] GSL3# ASH BROWN,TRIM4# |
58819-08010-E0 |
— | ||
|
58915A
|
58915A
58915-08030
Damper, Console Box, Rear
[09.2011 - 09.2014] GSL3# |
58915-08030 |
— | ||
|
58916
|
58916
58916-08020-B0
Mat, Box Bottom
[09.2011 - 09.2014] GSL3# GRAY,TRIM1# |
58916-08020-B0 |
— | ||
|
58916
|
58916
58916-08020-C0
Mat, Box Bottom
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58916-08020-C0 |
— | ||
|
58916
|
58916
58916-08020-E0
Mat, Box Bottom
[09.2011 - 09.2014] GSL3# ASH BROWN,TRIM4# |
58916-08020-E0 |
— | ||
|
58916G
|
58916G
58916-08040 Mat, Box Bottom, No.2[09.2011 - 09.2014] GSL3# |
58916-08040 |
US $125.28 |
||
|
58918
|
58918
58949-08010
Spring, Console Box Stopper
[09.2011 - 09.2014] GSL3# NO.1 |
58949-08010 |
— | ||
|
58918
|
58918
58949-08020
Spring, Console Box Stopper
[09.2011 - 09.2014] GSL3# NO.2 |
58949-08020 |
— | ||
|
58923A
|
58923A
58904-08010-B0
Panel, Console Rear End
[09.2011 - 09.2014] GSL3# LT.GRAY,TRIM1# |
58904-08010-B0 |
— | ||
|
58923A
|
58923A
58904-08010-E0
Panel, Console Rear End
[09.2011 - 09.2014] GSL3# GREGE,TRIM4# |
58904-08010-E0 |
— | ||
|
58923A
|
58923A
58904-08020-C0
Panel, Console Rear End
[09.2014 - 08.2016] GSL3# BLACK,TRIM1#,4# |
58904-08020-C0 |
— | ||
|
58944A
|
58944A
58944-08010
Cover, Console, Rear
[09.2011 - 09.2014] GSL3# |
58944-08010 |
— | ||
|
58953E
|
58953E
58953-08010
Cover, Console Compartment Door Pad
[09.2011 - 09.2014] GSL3# |
58953-08010 |
— | ||
|
58959B
|
58959B
58959-60060 Cushion, Instrument Panel[09.2011 - 09.2014] GSL3# |
58959-60060 |
from US $1.44 |
||
|
90167A0015
|
90167A0015
90167-A0015
New Genuine Part
|
90167-A0015 |
— | ||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
7586806020
|
7586806020
75868-06020 Clip, Rocker Panel Moulding, No.2REAR SEAT LEG GARNISH COVER |
75868-06020 |
US $2.77 |
||
|
9008011433
|
9008011433
90080-11433
New Genuine Part
|
90080-11433 |
— | ||
|
9008015073
|
9008015073
90080-15073
SCREW WWASHER TAPP
|
90080-15073 |
— | ||
|
9008016021
|
9008016021
90080-16021
New Genuine Part
|
90080-16021 |
— | ||
|
9008016112
|
9008016112
90080-16112 New Genuine Part |
90080-16112 |
US $2.97 |
||
|
9046710201
|
9046710201
90467-10201 Clip, Cover Sub-Assy, Position Indicator Housing |
90467-10201 |
from US $0.96 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.80 |
||
