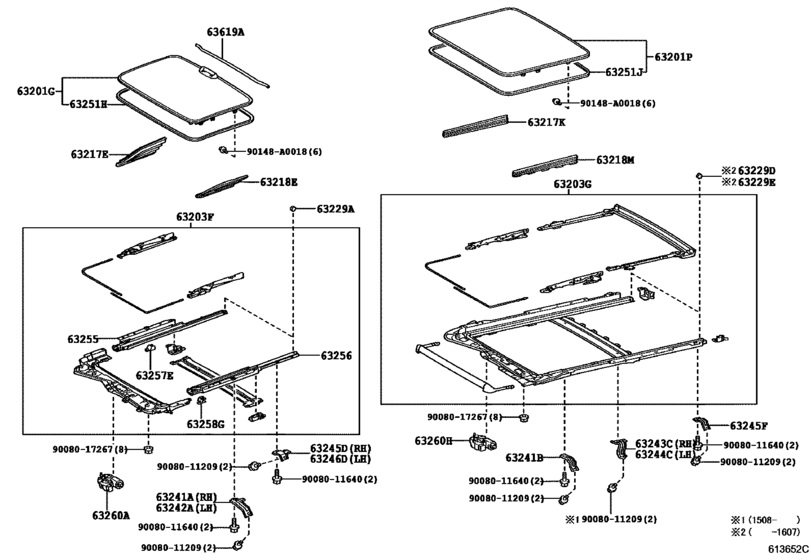

Roof Panel & Back Panel ([09.2011 - ] SLIDING ROOF(DUAL ROOF) (1109- )GSL30 ; (1109- )GSL35..6FC) Diagram Toyota SIENNA
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GSL30
- grade
- XLE
- body
- WG
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
63201G
|
63201G
63201-08040
Glass Sub-Assy, Sliding Roof
[09.2011 - 04.2014] GSL3# |
63201-08040 |
— | ||
| replacement | |||||
|
63201G
|
63201G
63201-08041
Glass Sub-Assy, Sliding Roof
[09.2011 - 04.2014] GSL3# |
63201-08041 |
— | ||
|
63201G
|
63201G
63201-08041
Glass Sub-Assy, Sliding Roof
[05.2014 - 09.2014] GSL3# |
63201-08041 |
— | ||
|
63201P
|
63201P
63201-08030
Glass Sub-Assy, Sliding Roof
[09.2011 - 04.2014] GSL3# |
63201-08030 |
— | ||
| replacement | |||||
|
63201P
|
63201P
63201-08031
Glass Sub-Assy, Sliding Roof
[09.2011 - 04.2014] GSL3# |
63201-08031 |
— | ||
|
63201P
|
63201P
63201-08031
Glass Sub-Assy, Sliding Roof
[05.2014 - 09.2014] GSL3# |
63201-08031 |
— | ||
|
63203F
|
63203F
63203-08021 Housing Sub-Assy, Sliding Roof[09.2011 - 09.2014] GSL3# |
63203-08021 |
US $385.84 |
||
|
63203G
|
63203G
63203-08030
Housing Sub-Assy, Sliding Roof, Rear
[09.2011 - 09.2014] GSL3# |
63203-08030 |
— | ||
| replacement | |||||
|
63203G
|
63203G
63203-08031
Housing Sub-Assy, Sliding Roof, Rear
[09.2011 - 09.2014] GSL3# |
63203-08031 |
— | ||
|
63203G
|
63203G
63203-08031
Housing Sub-Assy, Sliding Roof, Rear
[07.2016 - 08.2016] GSL3# |
63203-08031 |
— | ||
|
63217E
|
63217E
63217-08021 Garnish, Sliding Roof, Front Rh[09.2011 - 09.2014] GSL3# |
63217-08021 |
US $20.53 |
||
|
63217K
|
63217K
63217-08030 Garnish, Sliding Roof Side, RhSLIDING ROOF SIDE, RH [09.2011 - 09.2014] GSL3# |
63217-08030 |
US $18.56 |
||
|
63218E
|
63218E
63218-08011 Garnish, Sliding Roof, Front Lh[09.2011 - 09.2014] GSL3# |
63218-08011 |
US $20.53 |
||
|
63218M
|
63218M
63217-08030 Garnish, Sliding Roof Side, RhSLIDING ROOF SIDE, RH [09.2011 - 09.2014] GSL3# |
63217-08030 |
US $18.56 |
||
|
63229A
|
63229A
63229-08030
Stopper, Sliding Roof Sunshade
[09.2011 - 09.2014] GSL3# |
63229-08030 |
— | ||
|
63229D
|
63229D
63229-08030
Stopper, Sliding Roof Sunshade
[09.2011 - 09.2014] GSL3# |
63229-08030 |
— | ||
|
63229E
|
63229E
63229-08030
Stopper, Sliding Roof Sunshade
[09.2011 - 09.2014] GSL3# |
63229-08030 |
— | ||
|
63241A
|
63241A
63241-08020
Bracket, Sliding Roof Housing Front Mounting, Rh
[09.2011 - 09.2014] GSL3# |
63241-08020 |
— | ||
|
63241A
|
63241A
63241-08021
Bracket, Sliding Roof Housing Front Mounting, Rh
[04.2015 - 08.2016] GSL3# |
63241-08021 |
— | ||
|
63241B
|
63241B
63241-08030
Bracket, Sliding Roof Housing, No.1
[09.2011 - 09.2014] GSL3# |
63241-08030 |
— | ||
|
63242A
|
63242A
63241-08020
Bracket, Sliding Roof Housing Front Mounting, Rh
[09.2011 - 09.2014] GSL3# |
63241-08020 |
— | ||
|
63242A
|
63242A
63241-08021
Bracket, Sliding Roof Housing Front Mounting, Rh
[04.2015 - 08.2016] GSL3# |
63241-08021 |
— | ||
|
63243C
|
63243C
63243-08020
Bracket, Sliding Roof Housing Center Mounting, Rh
[09.2011 - 09.2014] GSL3# |
63243-08020 |
— | ||
|
63244C
|
63244C
63244-08030
Bracket, Sliding Roof Housing Center Mounting, Lh
[09.2011 - 09.2014] GSL3# |
63244-08030 |
— | ||
|
63245D
|
63245D
63245-08010
Bracket, Sliding Roof Housing Rear Mounting, Rh
[09.2011 - 09.2014] GSL3# |
63245-08010 |
— | ||
|
63245F
|
63245F
63245-08020
Bracket, Sliding Rear Mounting
[09.2011 - 09.2014] GSL3# |
63245-08020 |
— | ||
|
63246D
|
63246D
63246-08010
Bracket, Sliding Roof Housing Rear Mounting, Lh
[09.2011 - 09.2014] GSL3# |
63246-08010 |
— | ||
|
63251H
|
63251H
63251-08020 Weatherstrip, Sliding RoofSLIDING ROOF [09.2011 - 09.2014] GSL3# |
63251-08020 |
US $63.34 |
||
|
63251J
|
63251J
63251-08030 Weatherstrip, Sliding RoofSLIDING ROOF [09.2011 - 09.2014] GSL3# |
63251-08030 |
US $75.71 |
||
|
63255
|
63255
63255-08010
Cover, Sliding Roof Guide Rail, Rh
[09.2011 - 09.2014] GSL3# |
63255-08010 |
— | ||
|
63256
|
63256
63256-08010
Cover, Sliding Roof Guide Rail, Lh
[09.2011 - 09.2014] GSL3# |
63256-08010 |
— | ||
|
63257E
|
63257E
63257-08011 Holder, Sliding Roof Guide Rail, Rh[09.2011 - 09.2014] GSL3# |
63257-08011 |
US $2.62 |
||
|
63258G
|
63258G
63258-08011 Holder, Sliding Roof Guide Rail, Lh[09.2011 - 09.2014] GSL3# |
63258-08011 |
US $2.62 |
||
|
63260A
|
63260A
63260-08010 Gear Sub-Assy, Sliding Roof DriveSLIDING ROOF DRIVE [09.2011 - 09.2014] GSL3# |
63260-08010 |
US $387.47 |
||
|
63260H
|
63260H
63260-08020 Gear Assy, Sliding Roof DriveSLIDING ROOF DRIVE [09.2011 - 09.2014] GSL3# |
63260-08020 |
US $387.47 |
||
|
63619A
|
63619A
63619-08010 Protector, Removable Roof Panel, InnerREMOVABLE ROOF PANEL, INNER [09.2011 - 09.2014] GSL3# |
63619-08010 |
US $10.05 |
||
|
90148A0018
|
90148A0018
90148-A0018 New Genuine Part |
90148-A0018 |
US $0.73 |
||
|
9008011209
|
9008011209
90080-11209
New Genuine Part
|
90080-11209 |
— | ||
|
9008011640
|
9008011640
90080-11640
New Genuine Part
|
90080-11640 |
— | ||
|
9008017267
|
9008017267
90080-17267
New Genuine Part
|
90080-17267 |
— | ||
