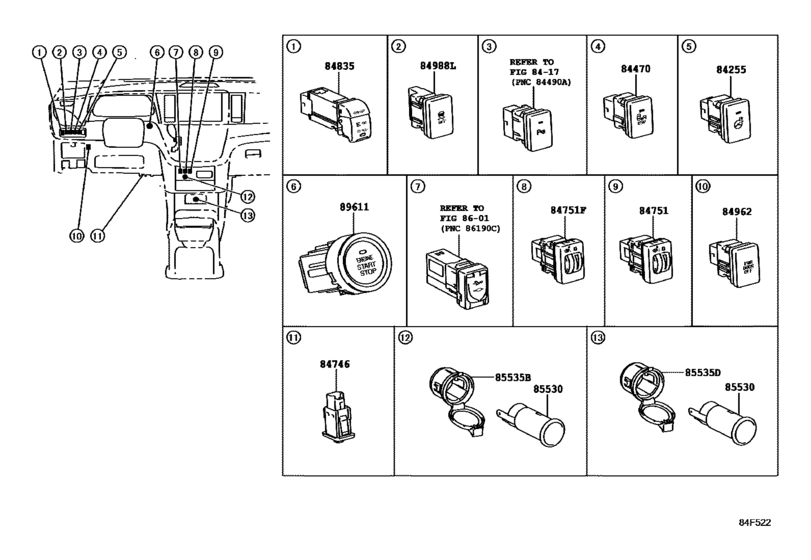

Switch & Relay & Computer ([09.2014 - ] INSTRUMENT PANEL (1409- )) Diagram Toyota SIENNA
- Year
- 2011 - 2016
- Sales region
- General
- Frame
- GSL30
- grade
- XLE
- body
- WG
- ENGINE
- 2GRFE
- TRANSMISSION
- ATM
- DESTINATION
- KRE
- From
- 09.2011
- To
- 08.2016
- Gear Shift Type
- 6FC
- Seating Capacity
- 07S
- Vehicle Model
- SIENNA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
84255
|
84255
84255-08010
Switch, Steering Heater
[09.2014 - 02.2015] GSL3# |
84255-08010 |
— | ||
| replacement | |||||
|
84255
|
84255
84255-08011
Switch, Steering Heater
[09.2014 - 02.2015] GSL3# |
84255-08011 |
— | ||
|
84255
|
84255
84255-08011
Switch, Steering Heater
[03.2015 - 08.2016] GSL3# |
84255-08011 |
— | ||
|
84470
|
84470
84470-0R010
Switch Assy, Warning Canceling
[09.2014 - 02.2015] GSL3# |
84470-0R010 |
— | ||
| replacement | |||||
|
84470
|
84470
84470-0R011
Switch Assy, Warning Canceling
[09.2014 - 02.2015] GSL3# |
84470-0R011 |
— | ||
|
84470
|
84470
84470-0R011
Switch Assy, Warning Canceling
[03.2015 - 08.2016] GSL3# |
84470-0R011 |
— | ||
|
84746
|
84746
84746-AE010
Switch, Tire Pressure Warning
[08.2013 - 09.2014] GSL3# |
84746-AE010 |
— | ||
|
84751
|
84751
84751-0E060
Switch, Seat Heater
[09.2014 - 02.2015] GSL3# |
84751-0E060 |
— | ||
| replacement | |||||
|
84751
|
84751
84751-0E061
Switch, Seat Heater
[09.2014 - 02.2015] GSL3# |
84751-0E061 |
— | ||
|
84751
|
84751
84751-0E061
Switch, Seat Heater
[03.2015 - 08.2016] GSL3# |
84751-0E061 |
— | ||
|
84751
|
84751
84751-0T020
Switch, Seat Heater
[09.2011 - 09.2014] GSL3# |
84751-0T020 |
— | ||
| replacement | |||||
|
84751
|
84751
84751-06101
Switch, Seat Heater
[09.2011 - 09.2014] GSL3# |
84751-06101 |
— | ||
|
84751F
|
84751F
84751-0E070
Switch, Seat Heater
[09.2014 - 02.2015] GSL3# |
84751-0E070 |
— | ||
| replacement | |||||
|
84751F
|
84751F
84751-0E071
Switch, Seat Heater
[09.2014 - 02.2015] GSL3# |
84751-0E071 |
— | ||
|
84751F
|
84751F
84751-0E071
Switch, Seat Heater
[03.2015 - 08.2016] GSL3# |
84751-0E071 |
— | ||
|
84751F
|
84751F
84751-0T010
Switch, Seat Heater
[09.2011 - 09.2014] GSL3# |
84751-0T010 |
— | ||
| replacement | |||||
|
84751F
|
84751F
84751-04011
Switch, Seat Heater
[09.2011 - 09.2014] GSL3# |
84751-04011 |
— | ||
|
84835
|
84835
84835-08040
Switch, Power Quarter Window
[09.2011 - 09.2014] GSL3# |
84835-08040 |
— | ||
|
84835
|
84835
84835-08060 Switch, Power Quarter Window[09.2014 - 08.2016] GSL3# |
84835-08060 |
US $49.35 |
||
|
84962
|
84962
84962-0R020
Switch, Power Slide Door Main
[09.2014 - 02.2015] GSL3# |
84962-0R020 |
— | ||
| replacement | |||||
|
84962
|
84962
84962-0R021 Switch, Power Slide Door Main[09.2014 - 02.2015] GSL3# |
84962-0R021 |
US $46.10 |
||
|
84962
|
84962
84962-0R021 Switch, Power Slide Door Main[03.2015 - 08.2016] GSL3# |
84962-0R021 |
US $46.10 |
||
|
84962
|
84962
84962-0T010
Switch, Power Slide Door Main
[09.2011 - 09.2014] GSL3# |
84962-0T010 |
— | ||
| replacement | |||||
|
84962
|
84962
84962-0T011
Switch, Power Back Door Main
[09.2011 - 09.2014] GSL3# |
84962-0T011 |
— | ||
|
84988L
|
84988L
84988-0R070
Switch, Vsc Off
[09.2014 - 02.2015] GSL3# |
84988-0R070 |
— | ||
| replacement | |||||
|
84988L
|
84988L
84988-0R071 Switch, Vsc Off[09.2014 - 02.2015] GSL3# |
84988-0R071 |
US $41.48 |
||
|
84988L
|
84988L
84988-0R071 Switch, Vsc Off[03.2015 - 08.2016] GSL3# |
84988-0R071 |
US $41.48 |
||
|
84988L
|
84988L
84988-0T010
Switch, Traction Control
[09.2011 - 09.2014] GSL3# |
84988-0T010 |
— | ||
| replacement | |||||
|
84988L
|
84988L
84988-0T011
Switch, Traction Control
[09.2011 - 09.2014] GSL3# |
84988-0T011 |
— | ||
|
85530
|
85530
85530-AE010 Socket Assy, Power Outlet, No.1POWER POINT [09.2011 - 09.2014] GSL3# |
85530-AE010 |
from US $27.46 |
||
|
85535B
|
85535B
85535-AA010 Cover, Power Outlet Socket, No.1POWER POINT SOCKET [09.2011 - 09.2014] GSL3# |
85535-AA010 |
US $5.97 |
||
|
85535B
|
85535B
85535-AE010
Cover, Power Outlet Socket, No.1
[09.2014 - 08.2016] GSL3# |
85535-AE010 |
— | ||
|
85535D
|
85535D
85535-08010 Cover, Power Outlet Socket, No.1POWER OUTLET SOCKET, CENTER [09.2011 - 09.2014] GSL3# |
85535-08010 |
US $53.14 |
||
|
89611
|
89611
89611-07013
Switch, Push Start
[08.2013 - 09.2014] GSL3#; GSL3# STARTING SYSTEM-ROTARY |
89611-07013 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-07014
Switch, Push Start
[08.2013 - 09.2014] GSL3#; GSL3# STARTING SYSTEM-ROTARY |
89611-07014 |
— | ||
|
89611
|
89611
89611-08010
Switch, Push Start
[09.2014 - 05.2016] GSL3# |
89611-08010 |
— | ||
| replacement | |||||
|
89611
|
89611
89611-08011 Switch, Push Start[09.2014 - 05.2016] GSL3# |
89611-08011 |
US $44.17 |
||
|
89611
|
89611
89611-08011 Switch, Push Start[06.2016 - 08.2016] GSL3# |
89611-08011 |
US $44.17 |
||
