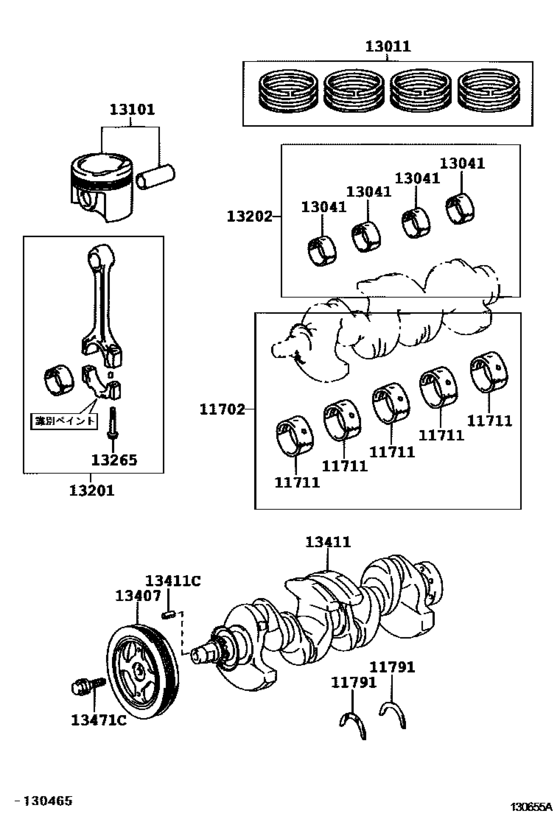

Crankshaft & Piston ([09.2003 - ] (0309- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11702
|
11702
11704-21032 Bearing Set, Crankshaft[08.2013 - 01.2014] 1NZFE..NCP8# Ｕ／Ｓ ０．２５ |
11704-21032 |
from US $91.57 |
||
|
11702
|
11702
11704-21033 Bearing Set, Crankshaft[01.2014 -] 1NZFE..NCP8# Ｕ／Ｓ ０．２５ |
11704-21033 |
US $157.25 |
||
|
11711
|
11711
11701-21032-01 Bearing, Crankshaft[08.2013 - 12.2013] 1NZFE..NCP8# MARK 1,修理書参照 |
11701-21032-01 |
from US $15.13 |
||
|
11711
|
11711
11701-21032-02 Bearing, Crankshaft[08.2013 - 12.2013] 1NZFE..NCP8# MARK 2,修理書参照 |
11701-21032-02 |
from US $16.24 |
||
|
11711
|
11711
11701-21032-03 Bearing, Crankshaft[08.2013 - 12.2013] 1NZFE..NCP8# MAKR 3,修理書参照 |
11701-21032-03 |
from US $17.36 |
||
|
11711
|
11711
11701-21032-04 Bearing, Crankshaft[08.2013 - 12.2013] 1NZFE..NCP8# MARK 4,修理書参照 |
11701-21032-04 |
from US $17.36 |
||
|
11711
|
11711
11701-21033-01 Bearing, Crankshaft[01.2014 -] 1NZFE..NCP8# MARK 1,修理書参照 |
11701-21033-01 |
US $32.93 |
||
|
11711
|
11711
11701-21033-02 Bearing, Crankshaft[01.2014 -] 1NZFE..NCP8# MARK 2,修理書参照 |
11701-21033-02 |
US $32.93 |
||
|
11711
|
11711
11701-21033-03 Bearing, Crankshaft[01.2014 -] 1NZFE..NCP8# MARK 3,修理書参照 |
11701-21033-03 |
US $32.93 |
||
|
11711
|
11711
11701-21033-04 Bearing, Crankshaft[01.2014 -] 1NZFE..NCP8# MARK 4,修理書参照 |
11701-21033-04 |
US $32.93 |
||
|
11791
|
11791
11791-37010 Washer, Crankshaft Thrust, Upper[06.2011 -] 1NZFE..NCP8# ＳＴＤ |
11791-37010 |
from US $16.28 |
||
|
11791
|
11791
11792-22020 Washer, Crankshaft Thrust, Upper[06.2011 - 10.2013] 1NZFE..NCP8# Ｏ／Ｓ ０．１２５ |
11792-22020 |
US $25.92 |
||
|
11791
|
11791
11792-37010 Washer, Crankshaft Thrust, Upper[10.2013 -] 1NZFE..NCP8# Ｏ／Ｓ ０．１２５ |
11792-37010 |
US $23.44 |
||
|
11791
|
11791
11793-22020 Washer, Crankshaft Thrust, Upper[06.2011 - 10.2013] 1NZFE..NCP8# Ｏ／Ｓ ０．２５ |
11793-22020 |
US $25.92 |
||
|
11791
|
11791
11793-37010 Washer, Crankshaft Thrust, Upper[10.2013 -] 1NZFE..NCP8# Ｏ／Ｓ ０．２５ |
11793-37010 |
US $23.44 |
||
|
13011
|
13011
13011-21091 Ring Set, Piston[06.2011 -] 1NZFE..NCP81 ＳＴＤ |
13011-21091 |
from US $95.96 |
||
|
13041
|
13041
13041-21033-01 Bearing, Connecting Rod[08.2013 -] 1NZFE..NCP8# MARK 1,修理書参照 |
13041-21033-01 |
from US $12.91 |
||
|
13041
|
13041
13041-21033-02 Bearing, Connecting Rod[08.2013 -] 1NZFE..NCP8# MARK 2,修理書参照 |
13041-21033-02 |
from US $11.41 |
||
|
13041
|
13041
13041-21033-03 Bearing, Connecting Rod[08.2013 -] 1NZFE..NCP8# MARK 3,修理書参照 |
13041-21033-03 |
from US $12.91 |
||
|
13101
|
13101
13101-21120 Piston Sub-Assy, W/pin[06.2011 -] 1NZFE..NCP81 ＳＴＤ |
13101-21120 |
US $65.69 |
||
|
13201
|
13201
13201-29736 Rod Sub-Assy, Connecting[08.2013 - 01.2014] 1NZFE..NCP8# |
13201-29736 |
US $104.83 |
||
| replacement | |||||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[08.2013 - 01.2014] 1NZFE..NCP8# |
13201-29737 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29757 Rod sub-assy, Connecting[08.2013 - 01.2014] 1NZFE..NCP8# |
13201-29757 |
from US $101.65 |
||
|
13201
|
13201
13201-29737
Rod Sub-Assy, Connecting
[01.2014 -] 1NZFE..NCP8# |
13201-29737 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-29757 Rod sub-assy, Connecting[01.2014 -] 1NZFE..NCP8# |
13201-29757 |
from US $101.65 |
||
|
13202
|
13202
13204-21033 Bearing Set, Connecting Rod[08.2013 -] 1NZFE..NCP8# Ｕ／Ｓ ０．２５ |
13204-21033 |
from US $55.79 |
||
|
13265
|
13265
13265-21020 Bolt, Connecting Rod[06.2011 -] 1NZFE..NCP8# |
13265-21020 |
from US $2.91 |
||
|
13407
|
13407
13407-21032 Damper Sub-Assy, Crankshaft[05.2012 -] 1NZFE..NCP81 |
13407-21032 |
from US $142.68 |
||
|
13411
|
13411
13401-21020 Crankshaft[06.2011 -] 1NZFE..NCP8# |
13401-21020 |
US $701.79 |
||
|
13411C
|
13411C
90254-03025
Pin, Straight(For Crankshaft)
[06.2011 -] 1NZFE..NCP8# |
90254-03025 |
— | ||
| replacement | |||||
|
13411C
|
13411C
90250-03095 Pin, Straight(For Crankshaft)[06.2011 -] 1NZFE..NCP8# |
90250-03095 |
from US $0.55 |
||
|
13471C
|
13471C
90119-12345 Bolt(For Crankshaft Pulley Set)[06.2011 -] 1NZFE..NCP8# |
90119-12345 |
from US $2.67 |
||
