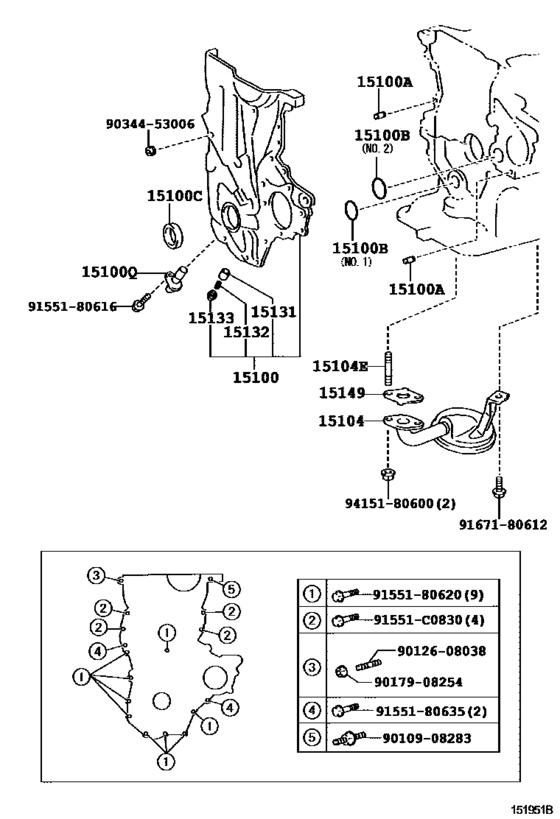

Engine Oil Pump ([04.2012 - ] (1204- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-21062 Pump Assy, Oil[04.2012 -] 1NZFE..NCP81 |
15100-21062 |
US $166.40 |
||
|
15100A
|
15100A
90253-08003 Pin, Ring W/head[06.2011 -] 1NZFE..NCP8# |
90253-08003 |
US $1.43 |
||
|
15100B
|
15100B
11497-21010 Ring, O(For Oil Pump)[11.2011 -] 1NZFE..NCP8# ＮＯ．２ |
11497-21010 |
from US $3.24 |
||
|
15100B
|
15100B
12151-21010 Ring, O(For Oil Pump)[11.2011 -] 1NZFE..NCP8# ＮＯ．１ |
12151-21010 |
from US $0.76 |
||
|
15100C
|
15100C
90311-25032 Seal, Oil(For Timing Chain Or Belt Cover)[04.2012 - 10.2013] 1NZFE..NCP8# |
90311-25032 |
from US $5.56 |
||
|
15100C
|
15100C
90311-25033 Seal(For Oil Pump)[11.2013 -] 1NZFE..NCP8# |
90311-25033 |
from US $4.86 |
||
|
15100Q
|
15100Q
90919-05087 Sensor, Crank Position[05.2013 -] 1NZFE..NCP8# |
90919-05087 |
from US $46.37 |
||
|
15104
|
15104
15104-21022 Strainer Sub-Assy, Oil[06.2011 -] 1NZFE..NCP8# |
15104-21022 |
from US $19.85 |
||
|
15104E
|
15104E
90126-06021 Bolt, Stud(For Oil Strainer)[06.2011 -] 1NZFE..NCP8# |
90126-06021 |
US $1.43 |
||
|
15131
|
15131
15131-21020 Valve, Oil Pump Relief[06.2011 -] 1NZFE..NCP8# |
15131-21020 |
US $4.37 |
||
|
15132
|
15132
15132-21060 Spring, Oil Pump Relief Valve[06.2011 -] 1NZFE..NCP81 |
15132-21060 |
US $2.33 |
||
|
15133
|
15133
15133-21030 Plug, Oil Pump Relief Valve[06.2011 -] 1NZFE..NCP8# |
15133-21030 |
US $2.91 |
||
|
15149
|
15149
16258-21030 Gasket, Oil Strainer Flange[06.2011 -] 1NZFE..NCP8# |
16258-21030 |
from US $2.61 |
||
|
91551C0830
|
91551C0830
91551-C0830 BOLT FLANGE |
91551-C0830 |
from US $0.92 |
||
|
9010908283
|
9010908283
90109-08283 New Genuine Part |
90109-08283 |
US $1.43 |
||
|
9012608038
|
9012608038
90126-08038 New Genuine Part |
90126-08038 |
US $3.76 |
||
|
9017908254
|
9017908254
90179-08254 NUT |
90179-08254 |
US $1.43 |
||
|
9034453006
|
9034453006
90344-53006 Plug, Tight, No.1(For Timing Gear Cover) |
90344-53006 |
from US $2.22 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.64 |
||
|
9155180620
|
9155180620
91551-80620 Bolt |
91551-80620 |
from US $0.64 |
||
|
9155180635
|
9155180635
91551-80635 Bolt(For Head To Camshaft Bearing Cap) |
91551-80635 |
from US $0.78 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.66 |
||
|
9415180600
|
9415180600
94151-80600 Nut, Cap(For Cylinder Head Cover) |
94151-80600 |
from US $0.66 |
