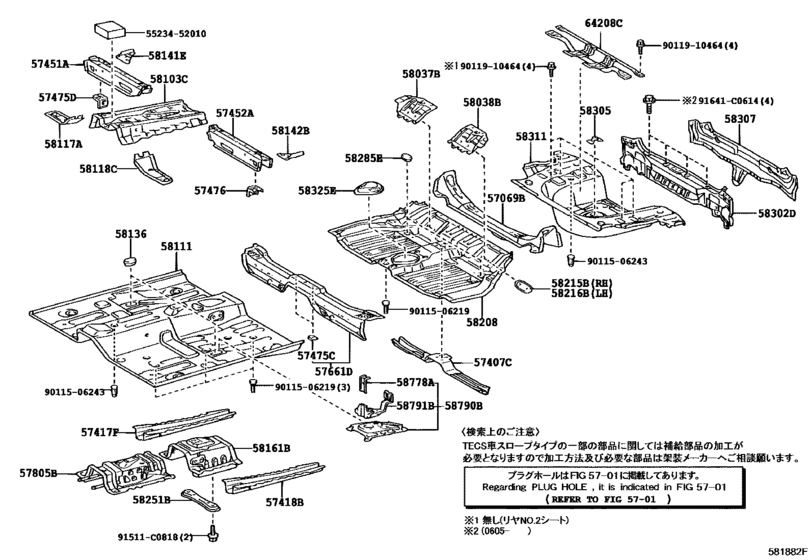

Floor Pan & Lower Back Panel ([09.2003 - ] (0309- )NCP81) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57069B
|
57069B
57069-52010 Member Sub-Assy, Rear Floor Cross, Center[06.2011 -] NCP81 |
57069-52010 |
US $198.02 |
||
|
57407C
|
57407C
57407-52010 Member Sub-Assy, Center Floor Cross, No.1[06.2011 -] NCP81 |
57407-52010 |
US $71.93 |
||
|
57417F
|
57417F
57417-52011 Reinforcement, Front Floor Under, Rh[06.2011 -] NCP81 |
57417-52011 |
from US $35.24 |
||
|
57418B
|
57418B
57417-52011 Reinforcement, Front Floor Under, Rh[06.2011 -] NCP81 |
57417-52011 |
from US $35.24 |
||
|
57451A
|
57451A
57451-52070 Member, Front Floor Cross, Rh[06.2011 -] NCP81 |
57451-52070 |
US $54.45 |
||
|
57452A
|
57452A
57452-52081 Member, Front Floor Cross, Lh[06.2011 -] NCP81 |
57452-52081 |
US $54.02 |
||
|
57475C
|
57475C
57475-32010 Plate, Front Floor Crossmember[06.2011 -] NCP8# |
57475-32010 |
US $2.04 |
||
|
57475D
|
57475D
57475-52010 Plate, Front Floor Crossmember, Rh[06.2011 -] NCP8# |
57475-52010 |
US $19.66 |
||
|
57476
|
57476
57476-52010 Plate, Front Floor Crossmember, Lh[06.2011 -] NCP8# |
57476-52010 |
US $19.51 |
||
|
57661D
|
57661D
57068-52010 Member, Rear Floor Cross, Front[06.2011 -] NCP81 |
57068-52010 |
US $100.46 |
||
|
57805B
|
57805B
57805-52060 Reinforcement Sub-Assy, Belt Anchor, Rh[06.2011 -] NCP81 |
57805-52060 |
US $117.94 |
||
|
58037B
|
58037B
57671-52090 Reinforce, Center Pillar To Floor, Rh[06.2011 -] NCP8# |
57671-52090 |
US $27.52 |
||
|
58038B
|
58038B
57672-52090 Reinforce, Center Pillar To Floor, Lh[06.2011 -] NCP8# |
57672-52090 |
US $27.52 |
||
|
58103C
|
58103C
58103-52060 Reinforcement Sub-Assy, Front Floor, Front[06.2011 -] NCP81 |
58103-52060 |
US $69.60 |
||
|
58111
|
58111
58111-52905 Pan, Front Floor[06.2011 -] NCP81 |
58111-52905 |
US $349.44 |
||
|
58117A
|
58117A
58117-52040 Reinforcement, Front Floor Side, Rh[06.2011 -] NCP81 |
58117-52040 |
US $19.66 |
||
|
58118C
|
58118C
58118-52030 Reinforcement, Front Floor Side, Lh[06.2011 -] NCP81 |
58118-52030 |
US $19.66 |
||
|
58136
|
58136
58136-52010 Cover, Front Floor Hole[06.2011 -] NCP8# |
58136-52010 |
US $5.10 |
||
|
58141E
|
58141E
58141-52010 Reinforcement, Front Side Member To Floor Pan, Rh[06.2011 -] NCP8# |
58141-52010 |
US $7.43 |
||
|
58142B
|
58142B
58142-52010 Reinforcemnt, Front Side Member To Floor Pan, Lh[06.2011 -] NCP8# |
58142-52010 |
US $7.43 |
||
|
58161B
|
58161B
58161-52050 Reinforcement, Belt Anchor To Floor Pan[06.2011 -] NCP81 |
58161-52050 |
US $77.17 |
||
|
58208
|
58208
58211-52904 Pan, Center Floor[06.2011 -] NCP81 |
58211-52904 |
US $263.54 |
||
|
58215B
|
58215B
58215-52060 Bracket, Rear Seat Mounting, Rh[06.2011 -] NCP8# |
58215-52060 |
US $12.38 |
||
|
58216B
|
58216B
58215-52060 Bracket, Rear Seat Mounting, Rh[06.2011 -] NCP8# |
58215-52060 |
US $12.38 |
||
|
58251B
|
58251B
58251-52010 Brace, Floor Panel, Front[06.2011 -] NCP81 |
58251-52010 |
US $12.38 |
||
|
58285E
|
58285E
58285-52010 Cover, Center Floor Hole[06.2011 -] NCP81 |
58285-52010 |
US $3.64 |
||
|
58302D
|
58302D
58302-52090 Panel Sub-Assy, Rear Floor, Front[06.2011 -] NCP8# |
58302-52090 |
US $322.92 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[06.2011 -] NCP8# |
58351-33010 |
US $7.35 |
||
|
58307
|
58307
58307-52180 Panel Sub-Assy, Body Lower Back[06.2011 - 06.2015] NCP81 |
58307-52180 |
US $220.80 |
||
|
58311
|
58311
58311-52909 Pan, Rear Floor[06.2011 - 05.2014] NCP81 |
58311-52909 |
US $263.54 |
||
| replacement | |||||
|
58311
|
58311
58311-52911 Pan, Rear Floor[06.2011 - 05.2014] NCP81 |
58311-52911 |
US $307.20 |
||
|
58311
|
58311
58311-52911 Pan, Rear Floor[05.2014 -] NCP81 |
58311-52911 |
US $307.20 |
||
|
58325E
|
58325E
58325-52030 Cover, Rear Floor Service Hole[06.2011 -] NCP81 |
58325-52030 |
US $19.66 |
||
|
58778A
|
58778A
58778-52010 Bracket, Jack Holder, No.1[06.2011 -] NCP8# |
58778-52010 |
US $3.20 |
||
|
58790B
|
58790B
58790-52040 Carrier Assy, Jack[06.2011 -] NCP8# |
58790-52040 |
US $15.14 |
||
|
58791B
|
58791B
58791-52050 Carrier, Jack[06.2011 -] NCP8# |
58791-52050 |
US $11.94 |
||
|
64208C
|
64208C
64208-52010 Member Sub-Assy, Room Partition Cross[06.2011 -] NCP8# |
64208-52010 |
US $123.76 |
||
|
91511C0818
|
91511C0818
91511-C0818 BOLTFLANGE |
91511-C0818 |
from US $1.01 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.66 |
||
|
5523452010
|
5523452010
55234-52010 Sheet, Dash Panel Insulator, No.2 |
55234-52010 |
US $4.08 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.43 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.43 |
||
|
9011910464
|
9011910464
90119-10464 BOLTWWASHER |
90119-10464 |
US $2.75 |
||
