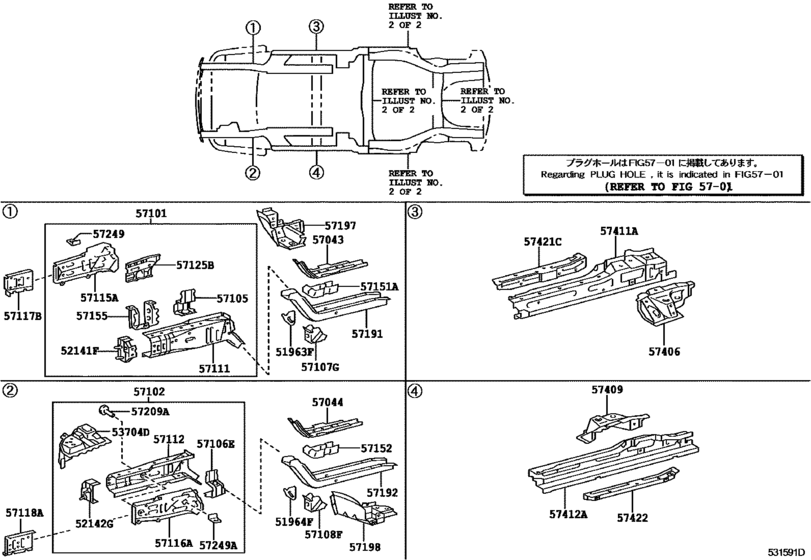

Floor Side Member ([09.2003 - ] ﾌﾛﾝﾄ (0309- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51963F
|
51963F
51963-52020 Hook, Transport[06.2011 -] NCP8# |
51963-52020 |
US $10.34 |
||
|
51964F
|
51964F
51964-52020 Hook, Transport, Lh[06.2011 -] NCP8# |
51964-52020 |
US $10.34 |
||
|
52141F
|
52141F
52141-52070 Arm, Front Bumper, Rh[06.2011 -] NCP8# |
52141-52070 |
US $32.40 |
||
|
52142G
|
52142G
52142-52010 Arm, Front Bumper, Lh[06.2011 -] NCP8# |
52142-52010 |
US $28.64 |
||
|
53704D
|
53704D
53704-52050 Support Sub-Assy, Battery, Lh[06.2011 -] NCP81 |
53704-52050 |
US $61.15 |
||
|
57043
|
57043
57043-46010 Reinforcement Sub-Assy, Front Side Member, Rear Rh[06.2011 -] NCP8# |
57043-46010 |
US $103.38 |
||
|
57044
|
57044
57044-46010 Reinforcement Sub-Assy, Front Side Member, Rear Lh[06.2011 -] NCP8# |
57044-46010 |
US $103.38 |
||
|
57101
|
57101
57101-52919 Member Sub-Assy, Front Side, Rh[06.2011 -] NCP8# |
57101-52919 |
US $240.24 |
||
|
57102
|
57102
57102-52918 Member Sub-Assy, Front Side, Lh[06.2011 -] NCP81 |
57102-52918 |
US $260.62 |
||
|
57105
|
57105
57105-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[06.2011 -] NCP8# |
57105-52010 |
US $30.28 |
||
|
57106E
|
57106E
57105-52010 Bracket Sub-Assy, Front Suspension Member Mounting, Front Rh[06.2011 -] NCP8# |
57105-52010 |
US $30.28 |
||
|
57107G
|
57107G
57107-52020 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Rh[06.2011 -] NCP8# |
57107-52020 |
from US $28.10 |
||
|
57108F
|
57108F
57108-52020 Bracket Sub-Assy, Front Suspension Member Mounting, Rear Lh[06.2011 -] NCP8# |
57108-52020 |
from US $28.10 |
||
|
57111
|
57111
57111-52010 Member, Front Side, Rh[06.2011 -] NCP8# |
57111-52010 |
US $178.87 |
||
|
57112
|
57112
57112-52010 Member, Front Side, Lh[06.2011 -] NCP8# |
57112-52010 |
US $178.87 |
||
|
57115A
|
57115A
57115-52010 Plate, Front Side Member, Outer Rh[06.2011 -] NCP8# |
57115-52010 |
US $105.62 |
||
|
57116A
|
57116A
57116-52010 Plate, Front Side Member, Outer Lh[06.2011 -] NCP8# |
57116-52010 |
US $105.62 |
||
|
57117B
|
57117B
57117-52020 Plate Sub-Assy, Front Side Member, Front Rh[06.2011 -] NCP8# |
57117-52020 |
from US $22.56 |
||
|
57118A
|
57118A
57118-52010 Reinforcement, Front Bumper Mounting, Lh[06.2011 -] NCP8# |
57118-52010 |
US $30.20 |
||
|
57125B
|
57125B
57127-46010 Reinforcement, Front Side Member, Rh[06.2011 -] NCP8# |
57127-46010 |
US $19.66 |
||
|
57151A
|
57151A
57151-52010 Reinforcement, Front Side Member, No.1 Rh[06.2011 -] NCP8# |
57151-52010 |
US $23.44 |
||
|
57152
|
57152
57153-52010 Reinforcement, Front Side Member, No.1 Lh[06.2011 -] NCP8# |
57153-52010 |
US $23.44 |
||
|
57155
|
57155
57155-52012 Reinforcement, Front Side Member, No.3, Rh[06.2011 -] NCP8# |
57155-52012 |
from US $19.66 |
||
|
57191
|
57191
57191-52900 Plate, Front Side Member, Outer Rear Rh[06.2011 -] NCP8# |
57191-52900 |
US $164.53 |
||
|
57192
|
57192
57192-52011 Plate, Front Side Member, Outer Rear Lh[06.2011 -] NCP8# |
57192-52011 |
US $115.02 |
||
|
57197
|
57197
57077-52030 Box, Torque, Front Rh[06.2011 -] NCP8# |
57077-52030 |
US $57.37 |
||
|
57198
|
57198
57078-52030 Box, Torque, Front Lh[06.2011 -] NCP8# |
57078-52030 |
US $57.37 |
||
|
57209A
|
57209A
57209-16090 Member Sub-Assy, Engine Rear Mounting[06.2011 -] NCP8# |
57209-16090 |
US $11.94 |
||
|
57249
|
57249
57249-10040 Bracket, Front Side Member, Rh[06.2011 -] NCP8# |
57249-10040 |
US $4.37 |
||
|
57249A
|
57249A
57249-10040 Bracket, Front Side Member, Rh[06.2011 -] NCP8# |
57249-10040 |
US $4.37 |
||
|
57406
|
57406
57406-52010 Member Sub-Assy, Main Floor Side, Rh[06.2011 -] NCP8# |
57406-52010 |
US $78.62 |
||
|
57409
|
57409
57409-52010 Member Sub-Assy, Main Floor Side, Lh[06.2011 -] NCP8# |
57409-52010 |
US $78.62 |
||
|
57411A
|
57411A
57411-52080 Member, Floor Side, Inner Rh[06.2011 -] NCP8# |
57411-52080 |
US $144.14 |
||
|
57412A
|
57412A
57412-52080 Member, Floor Side, Inner Lh[06.2011 -] NCP8# |
57412-52080 |
US $144.14 |
||
|
57421C
|
57421C
57421-52020 Plate, Floor Side Rail, Rh[06.2011 -] NCP8# |
57421-52020 |
US $58.53 |
||
|
57422
|
57422
57422-52020 Plate, Floor Side Rail, Lh[06.2011 -] NCP8# |
57422-52020 |
US $58.53 |
