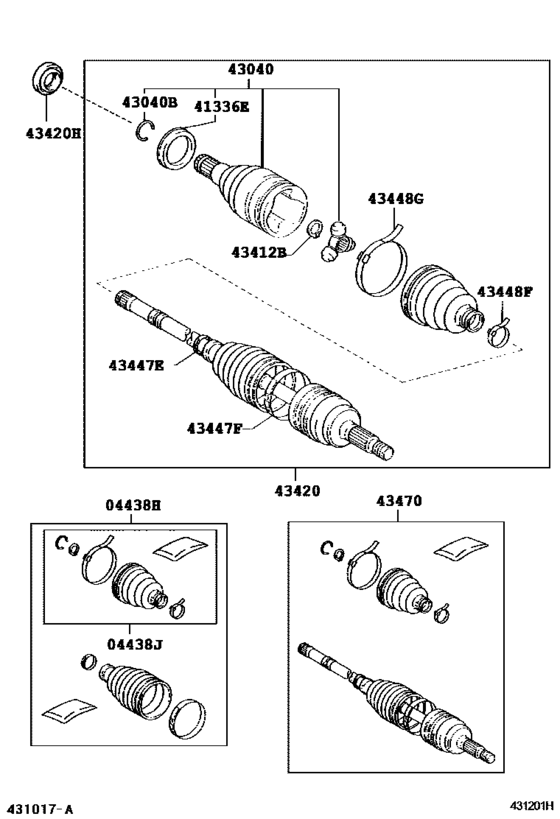

Front Drive Shaft ([09.2003 - ] ﾚﾌﾄ (0309- )NCP81) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438H
|
04438H
04427-52891
Boot Kit, Front Drive Shaft, In & Outboard, Rh
[06.2011 -] NCP81 |
04427-52891 |
— | ||
| replacement | |||||
|
04438H
|
04438H
04427-52897 BOOT KIT FR DRIVE[06.2011 -] NCP81 |
04427-52897 |
from US $95.57 |
||
|
04438J
|
04438J
04437-52191 Boot Kit, Front Drive Shaft Inboard Joint[06.2011 -] NCP81 |
04437-52191 |
from US $72.11 |
||
|
41336E
|
41336E
41336-12010 Cover, Dust(For Differential Side Gear Shaft)[06.2011 -] NCP8# |
41336-12010 |
from US $1.68 |
||
|
43040
|
43040
43403-10011
Joint Assy, Front Drive Inboard
[06.2011 -] NCP81 |
43403-10011 |
— | ||
| replacement | |||||
|
43040
|
43040
43403-0W031 JOINT SET, FR AXLE[06.2011 -] NCP81 |
43403-0W031 |
US $283.92 |
||
|
43040B
|
43040B
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[06.2011 -] NCP8# |
90521-26004 |
from US $1.79 |
||
|
43412B
|
43412B
90520-22001 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)[06.2011 -] NCP81 |
90520-22001 |
US $1.02 |
||
|
43420
|
43420
43420-52070 Shaft Assy, Front Drive, Lh[06.2011 - 06.2015] NCP81 |
43420-52070 |
US $666.85 |
||
|
43420H
|
43420H
90311-34026 Oil Seal, Front Drive Shaft, Lh[06.2011 - 07.2014] NCP81 |
90311-34026 |
from US $8.42 |
||
|
43420H
|
43420H
90311-34049 Oil Seal, Front Drive Shaft, Lh[08.2014 - 06.2015] NCP81 |
90311-34049 |
US $5.10 |
||
|
43447E
|
43447E
42345-52110 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[06.2011 -] NCP8# |
42345-52110 |
US $4.80 |
||
| replacement | |||||
|
43447E
|
43447E
42345-52260 Clamp (For Front Axle Outboard Joint Boot Rh)[06.2011 -] NCP8# |
42345-52260 |
US $3.94 |
||
|
43447F
|
43447F
42345-52100 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[06.2011 -] NCP8# |
42345-52100 |
US $6.99 |
||
| replacement | |||||
|
43447F
|
43447F
42345-52250 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[06.2011 -] NCP8# |
42345-52250 |
US $5.91 |
||
|
43448F
|
43448F
90949-01078 Clamp (For Rear Drive Shaft Outboard Joint Boot)[06.2011 -] NCP8# |
90949-01078 |
US $0.96 |
||
|
43448G
|
43448G
90949-01146 Clamp, No.2 (For Front Axle Inboard Joint Boot Setting)[06.2011 -] NCP81 |
90949-01146 |
US $4.40 |
||
|
43470
|
43470
43470-59456 Shaft Assy, Front Drive Outboard Joint, LhFRONT DRIVE OUTBOARD JOINT, LH [06.2011 -] NCP81 |
43470-59456 |
US $444.08 |
||
