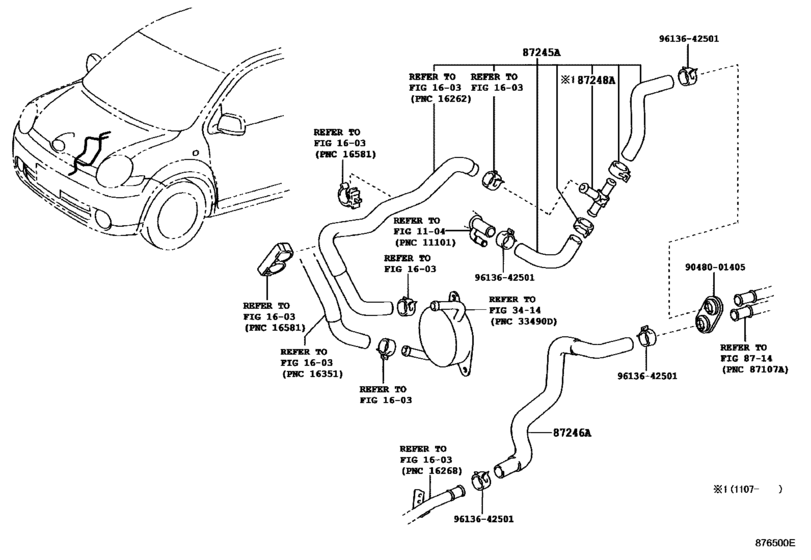

Heating & Air Conditioning - Water Piping ([09.2003 - ] (0309- )NCP81) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245A
|
87245A
87209-52081 Hose, Heater Water, Inlet A[07.2011 - 06.2015] NCP81 |
87209-52081 |
US $100.04 |
||
|
87246A
|
87246A
87245-52070 Hose, Heater Water, Outlet A[06.2011 -] NCP81 |
87245-52070 |
US $29.40 |
||
|
87248A
|
87248A
87248-52010
Pipe, Heater Water Inlet, A
[07.2011 -] NCP81 |
87248-52010 |
— | ||
|
9048001405
|
9048001405
90480-01405 Grommet, Heater Hose |
90480-01405 |
US $3.84 |
||
|
9613642501
|
9613642501
96136-42501 Clip(For Ventilation Hose) |
96136-42501 |
from US $3.24 |
