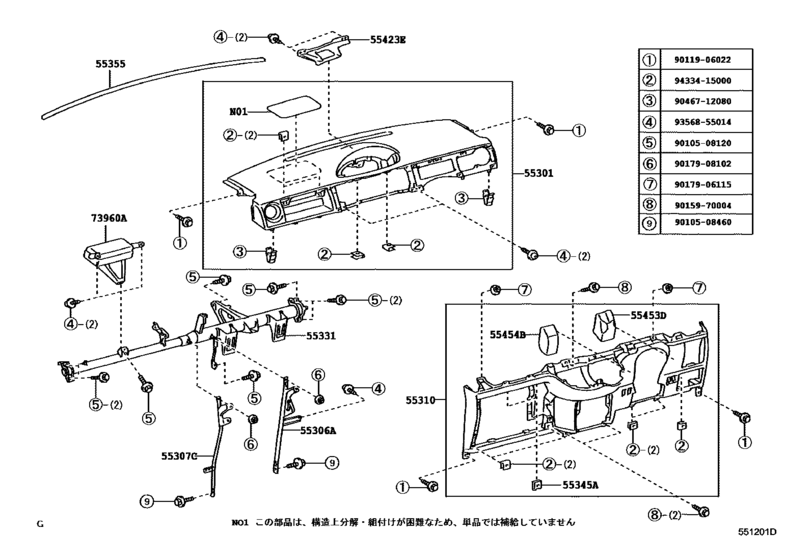

Instrument Panel & Glove Compartment ([09.2003 - ] (0309- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55301
|
55301
55301-52180-B0 Panel Sub-Assy, Instrument[06.2011 - 06.2015] NCP8#..DICE,DICEG,X DK.GRAY,TRIM1# |
55301-52180-B0 |
US $333.42 |
||
|
55306A
|
55306A
55306-52110 Brace Sub-Assy, Instrument Panel, No.1[06.2011 -] NCP8# |
55306-52110 |
US $36.40 |
||
|
55307C
|
55307C
55307-52020 Brace Sub-Assy, Instrument Panel, No.2[06.2011 -] NCP8# |
55307-52020 |
US $21.40 |
||
|
55310
|
55310
55310-52090-B0 Panel Assy, Instrument, Lower[06.2011 - 06.2015] NCP8#..DICE,DICEG,X DK.GRAY,TRIM1# |
55310-52090-B0 |
US $259.17 |
||
|
55331
|
55331
55330-52300 Reinforcement, Instrument Panel[06.2011 -] NCP8# |
55330-52300 |
US $173.26 |
||
|
55345A
|
55345A
55345-12060 Clip, Instrument Panel, No.1[06.2011 -] NCP8# |
55345-12060 |
US $1.10 |
||
|
55355
|
55355
55355-52080 Cushion, Instrument Panel, No.1[06.2011 -] NCP8# |
55355-52080 |
US $14.41 |
||
|
55423E
|
55423E
55423-52040 Cushion, Center Cluster, No.1[06.2011 -] NCP8# |
55423-52040 |
US $17.04 |
||
|
55453D
|
55453D
55453-52040 Pad, Instrument Panel Safety, No.1[06.2011 -] NCP8# |
55453-52040 |
US $30.87 |
||
|
55454B
|
55454B
55454-52030 Pad, Instrument Panel Safety, No.2[06.2011 -] NCP8# |
55454-52030 |
US $27.96 |
||
|
73960A
|
73960A
73960-52010 Air Bag Assy, Instrument Panel Passenger W/o Door[06.2011 -] NCP8# |
73960-52010 |
US $1,121.12 |
||
|
9010508120
|
9010508120
90105-08120 New Genuine Part |
90105-08120 |
US $1.61 |
||
|
9010508460
|
9010508460
90105-08460 New Genuine Part |
90105-08460 |
US $1.02 |
||
|
9011906022
|
9011906022
90119-06022 BOLT |
90119-06022 |
US $2.33 |
||
|
9015970004
|
9015970004
90159-70004 SCREW WWASHER |
90159-70004 |
US $0.69 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.87 |
||
|
9046712080
|
9046712080
90467-12080 Clip(For Panel, Instrument Cluster Finish) |
90467-12080 |
from US $0.76 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.49 |
||
|
9433415000
|
9433415000
94334-15000 New Genuine Part |
94334-15000 |
US $1.02 |
