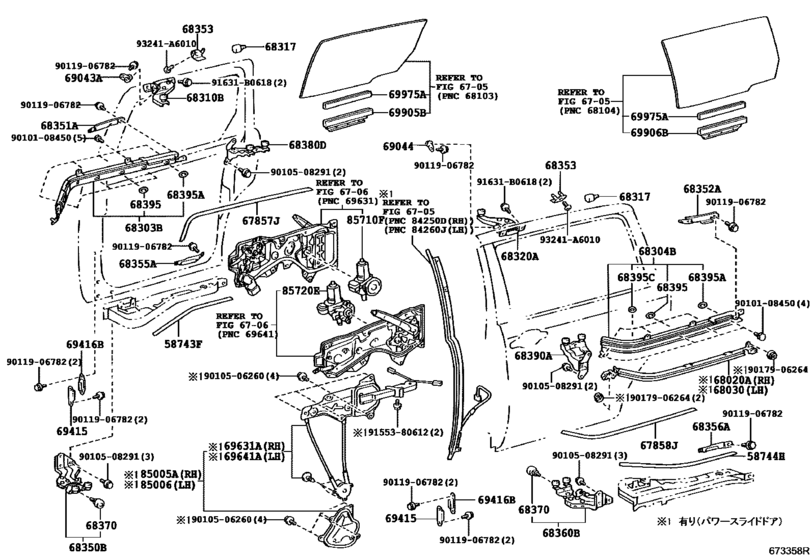

Rear Door Window Regulator & Hinge ([09.2003 - ] (0309- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
58743F
|
58743F
58743-52010 Protector, Slide Door Panel, Rh[06.2011 -] NCP8# |
58743-52010 |
US $27.96 |
||
|
58744H
|
58744H
58744-52010 Protector, Slide Door Panel, Lh[06.2011 -] NCP8# |
58744-52010 |
US $27.96 |
||
|
67857J
|
67857J
67857-52050 Protector, Slide Door Rail, Rh[06.2011 -] NCP8# |
67857-52050 |
US $10.19 |
||
|
67858J
|
67858J
67858-52050 Protector, Slide Door Rail, Lh[06.2011 -] NCP8# |
67858-52050 |
US $10.19 |
||
|
68020A
|
68020A
68020-52010 Guide Assy, Slide Door Cable, Rh[06.2011 -] NCP8#..DICE,DICEG,G オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
68020-52010 |
US $34.29 |
||
|
68030
|
68030
68030-52011 Guide Assy, Slide Door Cable[06.2011 -] NCP8#..DICEG,G; NCP81..X オート＆イージークローザードア−有り（パワースライドドア（助手席側のみ））; NCP8#..DICE オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
68030-52011 |
US $40.48 |
||
|
68303B
|
68303B
68303-52011 Rail Sub-Assy, Slide Door, Center Rh[06.2011 - 06.2015] NCP8# |
68303-52011 |
US $74.26 |
||
|
68303B
|
68303B
68303-52021 Rail Sub-Assy, Slide Door, Center Rh[06.2011 - 06.2015] NCP8#..DICE,DICEG,G オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
68303-52021 |
US $82.72 |
||
|
68304B
|
68304B
68304-52021 Rail Sub-Assy, Slide Door, Center Lh[06.2011 - 06.2015] NCP8#..DICEG,G; NCP81..X オート＆イージークローザードア−有り（パワースライドドア（助手席側のみ））; NCP8#..DICE オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
68304-52021 |
US $104.83 |
||
|
68310B
|
68310B
68310-52011 Roller Assy, Slide Door, Upper Rh[06.2011 - 06.2015] NCP8# |
68310-52011 |
US $24.46 |
||
|
68317
|
68317
68317-52020 Stopper, Slide Door Upper Rail, Rh[06.2011 -] NCP8# |
68317-52020 |
US $3.58 |
||
|
68320A
|
68320A
68320-52011 Roller Assy, Slide Door, Upper, Lh[06.2011 - 06.2015] NCP8# |
68320-52011 |
US $24.46 |
||
|
68350B
|
68350B
68350-46030 Roller Assy, Slide Door, Lower Rh[06.2011 -] NCP8# |
68350-46030 |
US $80.08 |
||
|
68351A
|
68351A
68351-52010 Plate, Slide Door Rail Protector, No.1 Rh[06.2011 -] NCP8# |
68351-52010 |
US $5.10 |
||
|
68352A
|
68352A
68352-52010 Plate, Slide Door Rail Protector, No.1 Lh[06.2011 -] NCP8# |
68352-52010 |
US $5.10 |
||
|
68353
|
68353
68353-52010 Plate, Slide Door Rail Protector, No.2[06.2011 -] NCP8# |
68353-52010 |
US $2.48 |
||
|
68355A
|
68355A
68355-52010 Plate, Slide Door Rail Protector, No.3 Rh[06.2011 -] NCP8# |
68355-52010 |
US $4.51 |
||
|
68356A
|
68356A
68356-52010 Plate, Slide Door Rail Protector, No.3 Lh[06.2011 -] NCP8# |
68356-52010 |
US $4.51 |
||
|
68360B
|
68360B
68360-52050 Roller Assy, Slide Door, Lower Lh[06.2011 -] NCP8# |
68360-52050 |
US $80.08 |
||
|
68370
|
68370
68370-46011 Roller Assy, Slide Door, Lower Sub[06.2011 -] NCP8# |
68370-46011 |
US $9.90 |
||
|
68380D
|
68380D
68380-52010 Hinge Assy, Slide Door, Center Rh[06.2011 - 06.2015] NCP8# |
68380-52010 |
US $51.98 |
||
|
68380D
|
68380D
68380-52020 Hinge Assy, Slide Door, Center Rh[06.2011 - 06.2015] NCP8#..DICE,DICEG,G オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
68380-52020 |
US $48.40 |
||
|
68390A
|
68390A
68390-52010 Hinge Assy, Slide Door, Center Lh[06.2011 - 06.2015] NCP8# |
68390-52010 |
US $93.48 |
||
|
68395
|
68395
68395-46020 Packing, Slide Door Center Rail[06.2011 - 06.2015] NCP8# |
68395-46020 |
US $5.91 |
||
|
68395A
|
68395A
68395-52030 Packing, Slide Door Center Rail[06.2011 -] NCP8# |
68395-52030 |
US $17.98 |
||
|
68395C
|
68395C
68395-52020 Packing, Slide Door Center Rail[06.2011 -] NCP8# |
68395-52020 |
US $4.84 |
||
|
69043A
|
69043A
69418-46010 Stopper Sub-Assy, Slide Door Down Female, Rh[06.2011 -] NCP8# |
69418-46010 |
US $9.68 |
||
|
69044
|
69044
69419-46010 Stopper Sub-Assy, Slide Door Down Female, Lh[06.2011 -] NCP8# |
69419-46010 |
US $9.68 |
||
|
69415
|
69415
69046-46011 Stopper Sub-Assy, Slide Door Down Female[06.2011 -] NCP8# |
69046-46011 |
US $22.51 |
||
|
69416B
|
69416B
69416-46011 Stopper, Slide Door Down Male[06.2011 -] NCP8# |
69416-46011 |
US $21.50 |
||
|
69631A
|
69631A
69631-52060 Control, Slide Door Attachment, Rh[06.2011 -] NCP8# |
69631-52060 |
US $104.83 |
||
|
69641A
|
69641A
69641-52080 Control, Slide Door Attachment, Lh[06.2011 -] NCP8# |
69641-52080 |
US $142.80 |
||
|
69905B
|
69905B
69906-52010 Channel Sub-Assy, Rear Door Glass, Rh[06.2011 - 06.2015] NCP8# |
69906-52010 |
US $7.17 |
||
|
69906B
|
69906B
69905-52020 Bracket Sub-Assy, Rear Door Glass, Rh[06.2011 - 06.2015] NCP8# |
69905-52020 |
US $7.17 |
||
|
69975A
|
69975A
69975-52010 Filler, Rear Door Glass Channel[06.2011 - 06.2015] NCP8# |
69975-52010 |
from US $5.73 |
||
|
85005A
|
85005A
85005-52042 Motor Unit, Slide Door, Rh[06.2011 -] NCP8#..DICE,DICEG,G オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
85005-52042 |
US $679.95 |
||
|
85006
|
85006
85006-52013 Motor Unit, Slide Door, Lh[06.2011 -] NCP8#..DICEG,G; NCP81..X オート＆イージークローザードア−有り（パワースライドドア（助手席側のみ））; NCP8#..DICE オート＆イージークローザードア−有り（パワースライドドア（運転席側＆助手席側）） |
85006-52013 |
from US $1,007.55 |
||
|
85710F
|
85710F
85710-52120 Motor Assy, Power Window Regulator, Rh[06.2011 - 06.2015] NCP8# |
85710-52120 |
US $235.87 |
||
|
85720E
|
85720E
85720-52120 Motor Assy, Power Window Regulator, Lh[06.2011 - 06.2015] NCP8# |
85720-52120 |
US $235.87 |
||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.66 |
||
|
93241A6010
|
93241A6010
93241-A6010 New Genuine Part |
93241-A6010 |
US $1.38 |
||
|
9010108450
|
9010108450
90101-08450 Bolt(For Backing Plate To Steering Knuckle Setting) |
90101-08450 |
US $3.94 |
||
|
9010506260
|
9010506260
90105-06260 BOLT, WASHER BASED |
90105-06260 |
from US $0.66 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
from US $0.92 |
||
|
9011906782
|
9011906782
90119-06782 BOLT WWASHER |
90119-06782 |
from US $0.66 |
||
|
9017906264
|
9017906264
90179-06264 NUT, WWASHER |
90179-06264 |
from US $0.84 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.62 |
