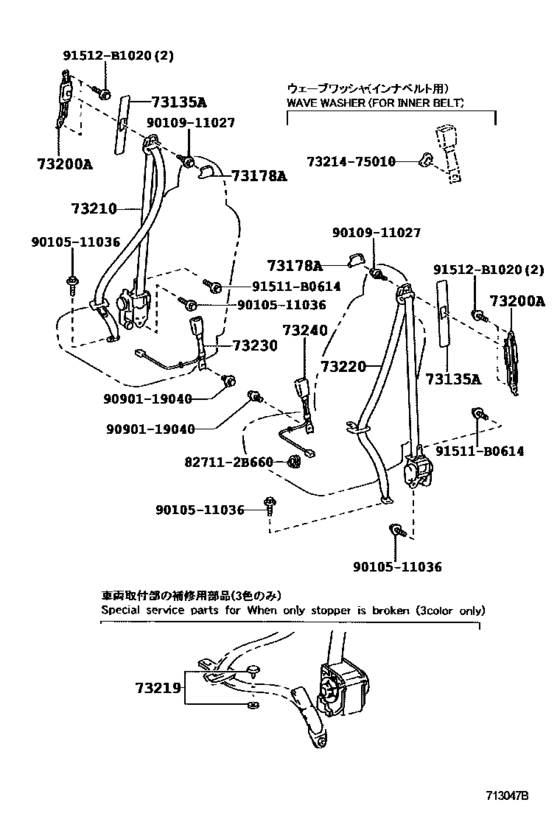

Seat Belt & Child Restraint Seat ([09.2003 - ] ﾌﾛﾝﾄ ｼ-ﾄ (0309- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73135A
|
73135A
73135-12030-P2 Cover, Shoulder Belt Anchor, Rh[06.2011 - 06.2015] NCP8#..DICE,DICEG,X MD.GRAY,TRIM1# |
73135-12030-P2 |
US $7.13 |
||
|
73178A
|
73178A
73178-33020-P1 Cap, Seat Belt Anchor CoverSEAT BELT ANCHOR COVER [06.2011 - 06.2015] NCP8#..DICE,DICEG,X MD.GRAY,TRIM1# |
73178-33020-P1 |
US $5.10 |
||
|
73200A
|
73200A
73200-12050-B8 Adjuster Assy, Front Shoulder Belt Anchor[06.2011 - 06.2015] NCP8#..DICE,DICEG,X MD.GRAY,TRIM1# |
73200-12050-B8 |
US $47.47 |
||
|
73210
|
73210
73210-52383-B1 Belt Assy, Front Seat Outer, Rh[06.2011 - 06.2015] NCP8#..DICE,DICEG,X GRAY,TRIM1# |
73210-52383-B1 |
US $352.35 |
||
|
73220
|
73220
73220-52433-B1 Belt Assy, Front Seat Outer, Lh[06.2011 - 06.2015] NCP8#..DICE,DICEG,X GRAY,TRIM1# |
73220-52433-B1 |
US $352.35 |
||
|
73230
|
73230
73230-52232-B1 Belt Assy, Front Seat Inner, Rh[06.2011 - 06.2015] NCP8#..DICE,DICEG,X MD.GRAY,TRIM1# |
73230-52232-B1 |
US $69.96 |
||
|
73240
|
73240
73230-52241-B1 Belt Assy, Front Seat Inner, Lh[06.2011 - 06.2015] NCP8#..DICE,DICEG,X MD.GRAY,TRIM1# |
73230-52241-B1 |
US $53.14 |
||
|
91511B0614
|
91511B0614
91511-B0614 BOLT FLANGE |
91511-B0614 |
from US $0.70 |
||
|
91512B1020
|
91512B1020
91512-B1020 Bolt(For Front Transaxle Case Cover) |
91512-B1020 |
US $1.65 |
||
|
827112B660
|
827112B660
82711-2B660 Clamp, Wiring Harness |
82711-2B660 |
US $2.45 |
||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $2.06 |
||
|
9010511036
|
9010511036
90105-11036 New Genuine Part |
90105-11036 |
US $1.38 |
||
|
9010911027
|
9010911027
90109-11027 BOLT |
90109-11027 |
US $2.20 |
||
|
9090119040
|
9090119040
90901-19040 BOLT WWASHER |
90901-19040 |
US $1.51 |
