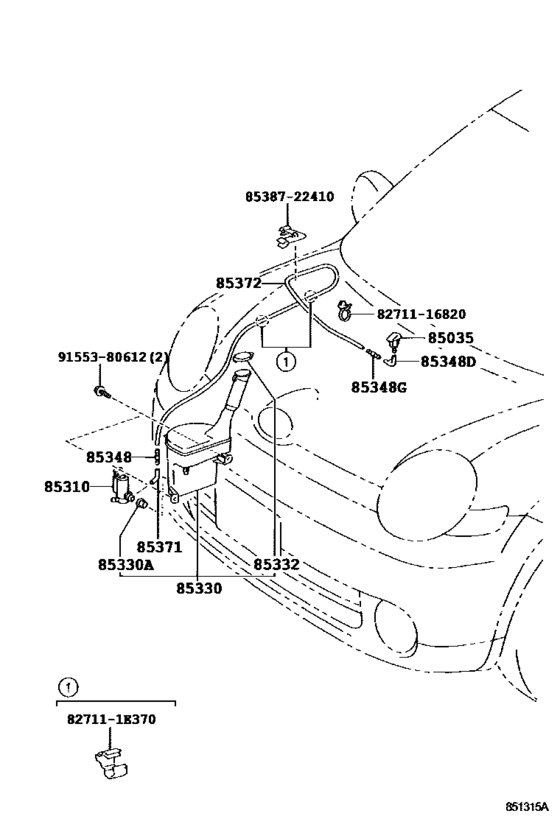

Windshield Washer ([09.2003 - ] (0309- )) Diagram Toyota SIENTA
- Year
- 2013 - 2015
- Sales region
- Japan
- Frame
- NCP81
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 06.2015
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-52400
Nozzle Sub-Assy, Washer
[06.2011 -] NCP8#..DICE,DICEG |
85381-52400 |
— | ||
|
85310
|
85310
85330-20460
Motor And Pump Assy, Windshield Washer
[06.2011 - 06.2015] NCP8# |
85330-20460 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-20461 Motor And Pump Assy, Windshield Washer[06.2011 - 06.2015] NCP8# |
85330-20461 |
US $60.45 |
||
|
85330
|
85330
85315-52050
Jar Assy, Windshield Washer
[06.2011 -] NCP8# |
85315-52050 |
— | ||
|
85330A
|
85330A
90099-32089 Bush, Headlamp Cleaner Washer Jar[06.2011 -] NCP8# |
90099-32089 |
from US $0.98 |
||
| replacement | |||||
|
85330A
|
85330A
90099320891 Grommet[06.2011 -] NCP8# |
90099320891 |
US $2.28 |
||
|
85332
|
85332
85316-42011 Cap, Washer, Inlet[06.2011 -] NCP8# |
85316-42011 |
from US $1.75 |
||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[06.2011 -] NCP8# |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85336-12230 Joint, Windshield Washer Elbow, No.1[06.2011 -] NCP8# |
85336-12230 |
US $3.74 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[06.2011 -] NCP8#..DICEG |
85349-89122 |
from US $1.25 |
||
|
85371
|
85371
90099-33080 Hose, Windshield Washer (From Motor To Joint)[06.2011 -] NCP8# ＊Ｈ，Ｌ＝５０ |
90099-33080 |
from US $5.62 |
||
|
85372
|
85372
90099-33589 Hose, Rear Washer (From Motor To Joint)[06.2011 -] NCP8#..G,X ＊Ｈ，Ｌ＝１９２０; NCP8#..DICE,DICEG ＊Ｈ，Ｌ＝１９５０ |
90099-33589 |
from US $3.84 |
||
|
827111E370
|
827111E370
82711-1E370 Clamp, Hood Lock Control Cable |
82711-1E370 |
US $1.51 |
||
|
8271116820
|
8271116820
82711-16820 Clamp, Hood Lock Control Wire |
82711-16820 |
from US $1.08 |
||
|
8538722410
|
8538722410
85387-22410 Clamp No.1 (For Windseield Washer) |
85387-22410 |
from US $3.14 |
||
|
9155380612
|
9155380612
91553-80612 BOLT FLANGE |
91553-80612 |
from US $0.63 |
||
