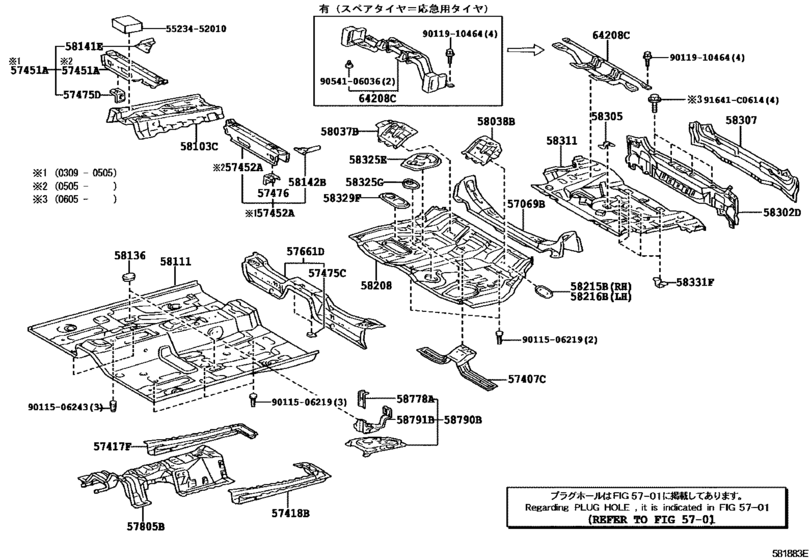

Floor Pan & Lower Back Panel ([09.2003 - ] (0309- )NCP85) Diagram Toyota SIENTA
- Year
- 2013 - 2014
- Sales region
- Japan
- Frame
- NCP85
- grade
- DICEG
- ENGINE
- 1NZFE
- From
- 09.2013
- To
- 09.2014
- Vehicle Model
- SIENTA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57069B
|
57069B
57069-52020 Member Sub-Assy, Rear Floor Cross, Center[06.2011 - 09.2014] NCP85 |
57069-52020 |
US $222.77 |
||
|
57407C
|
57407C
57407-52030 Member Sub-Assy, Center Floor Cross, No.1[06.2011 - 09.2014] NCP85 |
57407-52030 |
US $71.93 |
||
|
57417F
|
57417F
57505-52040 Reinforcement, Front Floor Under, Rh[06.2011 - 09.2014] NCP85 |
57505-52040 |
US $61.15 |
||
|
57418B
|
57418B
57506-52040 Reinforcement, Front Floor Under, Lh[06.2011 - 09.2014] NCP85 |
57506-52040 |
US $61.15 |
||
|
57451A
|
57451A
57451-52080 Member, Front Floor Cross, Rh[06.2011 - 09.2014] NCP85 |
57451-52080 |
US $44.55 |
||
|
57452A
|
57452A
57452-52090 Member, Front Floor Cross, No.2[06.2011 - 09.2014] NCP85 |
57452-52090 |
US $53.29 |
||
|
57475C
|
57475C
57475-32010 Plate, Front Floor Crossmember[06.2011 -] NCP8# |
57475-32010 |
US $2.04 |
||
|
57475D
|
57475D
57475-52010 Plate, Front Floor Crossmember, Rh[06.2011 -] NCP8# |
57475-52010 |
US $19.66 |
||
|
57476
|
57476
57476-52010 Plate, Front Floor Crossmember, Lh[06.2011 -] NCP8# |
57476-52010 |
US $19.51 |
||
|
57661D
|
57661D
57068-52020 Member, Rear Floor Cross, Front[06.2011 - 09.2014] NCP85 |
57068-52020 |
US $100.46 |
||
|
57805B
|
57805B
57805-52100 Reinforcement Sub-Assy, Belt Anchor, Rh[06.2011 - 09.2014] NCP85 |
57805-52100 |
US $163.07 |
||
|
58037B
|
58037B
57671-52090 Reinforce, Center Pillar To Floor, Rh[06.2011 -] NCP8# |
57671-52090 |
US $27.52 |
||
|
58038B
|
58038B
57672-52090 Reinforce, Center Pillar To Floor, Lh[06.2011 -] NCP8# |
57672-52090 |
US $27.52 |
||
|
58103C
|
58103C
58103-52022 Reinforcement Sub-Assy, Front Floor, Front[06.2011 - 09.2014] NCP85 |
58103-52022 |
US $84.45 |
||
|
58111
|
58111
58111-52932 Pan, Front Floor[06.2011 - 09.2014] NCP85 |
58111-52932 |
US $347.98 |
||
|
58136
|
58136
58136-52010 Cover, Front Floor Hole[06.2011 -] NCP8# |
58136-52010 |
US $5.10 |
||
|
58141E
|
58141E
58141-52010 Reinforcement, Front Side Member To Floor Pan, Rh[06.2011 -] NCP8# |
58141-52010 |
US $7.43 |
||
|
58142B
|
58142B
58142-52010 Reinforcemnt, Front Side Member To Floor Pan, Lh[06.2011 -] NCP8# |
58142-52010 |
US $7.43 |
||
|
58208
|
58208
58211-52905 Pan, Center Floor[06.2011 - 09.2014] NCP85 |
58211-52905 |
US $308.67 |
||
|
58215B
|
58215B
58215-52060 Bracket, Rear Seat Mounting, Rh[06.2011 -] NCP8# |
58215-52060 |
US $12.38 |
||
|
58216B
|
58216B
58215-52060 Bracket, Rear Seat Mounting, Rh[06.2011 -] NCP8# |
58215-52060 |
US $12.38 |
||
|
58302D
|
58302D
58302-52090 Panel Sub-Assy, Rear Floor, Front[06.2011 -] NCP8# |
58302-52090 |
US $289.80 |
||
|
58305
|
58305
58351-33010 Bracket Sub-Assy, Spare Wheel Clamp[06.2011 -] NCP8# |
58351-33010 |
US $6.56 |
||
|
58307
|
58307
58307-52340 Panel Sub-Assy, Body Lower Back[06.2011 - 09.2014] NCP85 |
58307-52340 |
US $150.96 |
||
|
58311
|
58311
58311-52172 Pan, Rear Floor[06.2011 - 04.2014] NCP85 |
58311-52172 |
US $291.20 |
||
| replacement | |||||
|
58311
|
58311
58311-52173 Pan, Rear Floor[06.2011 - 04.2014] NCP85 |
58311-52173 |
US $238.78 |
||
|
58311
|
58311
58311-52173 Pan, Rear Floor[05.2014 - 09.2014] NCP85 |
58311-52173 |
US $238.78 |
||
|
58325E
|
58325E
58325-52041 Cover, Rear Floor Service Hole[06.2011 - 09.2014] NCP85 |
58325-52041 |
US $26.94 |
||
|
58325G
|
58325G
58339-52051 Cover, Rear Floor Service Hole[06.2011 - 09.2014] NCP85 |
58339-52051 |
US $9.61 |
||
|
58329F
|
58329F
58329-52011 Cover, Rear Floor Service Hole, No.2[06.2011 - 09.2014] NCP85 |
58329-52011 |
US $14.27 |
||
|
58331F
|
58331F
58331-10011 Cover, Rear Floor Service Hole, No.2[06.2011 - 09.2014] NCP85 |
58331-10011 |
US $3.03 |
||
|
58778A
|
58778A
58778-52010 Bracket, Jack Holder, No.1[06.2011 -] NCP8# |
58778-52010 |
US $3.20 |
||
|
58790B
|
58790B
58790-52040 Carrier Assy, Jack[06.2011 -] NCP8# |
58790-52040 |
US $15.14 |
||
|
58791B
|
58791B
58791-52050 Carrier, Jack[06.2011 -] NCP8# |
58791-52050 |
US $11.94 |
||
|
64208C
|
64208C
64208-52010 Member Sub-Assy, Room Partition Cross[06.2011 -] NCP8# |
64208-52010 |
US $123.76 |
||
|
64208C
|
64208C
64208-52020 Member Sub-Assy, Room Partition Cross[06.2011 - 09.2014] NCP85 スペア タイヤ−Ｔ１２５／７０Ｄ１６ |
64208-52020 |
US $196.56 |
||
|
91641C0614
|
91641C0614
91641-C0614 Bolt |
91641-C0614 |
from US $0.74 |
||
|
5523452010
|
5523452010
55234-52010 Sheet, Dash Panel Insulator, No.2 |
55234-52010 |
US $4.08 |
||
|
9011506219
|
9011506219
90115-06219 Bolt, Weld(For Front Floor Pan, Lh) |
90115-06219 |
US $1.28 |
||
|
9011506243
|
9011506243
90115-06243 Bolt, Weld(For Front Floor Panel, Center) |
90115-06243 |
US $1.28 |
||
|
9011910464
|
9011910464
90119-10464 BOLTWWASHER |
90119-10464 |
US $3.14 |
||
|
9054106036
|
9054106036
90541-06036 Cushion, No.1(For Clutch Pedal) |
90541-06036 |
from US $0.96 |
||
| replacement | |||||
|
9054106036
|
9054106036
90541060361
CUSHION
|
90541060361 |
— | ||
