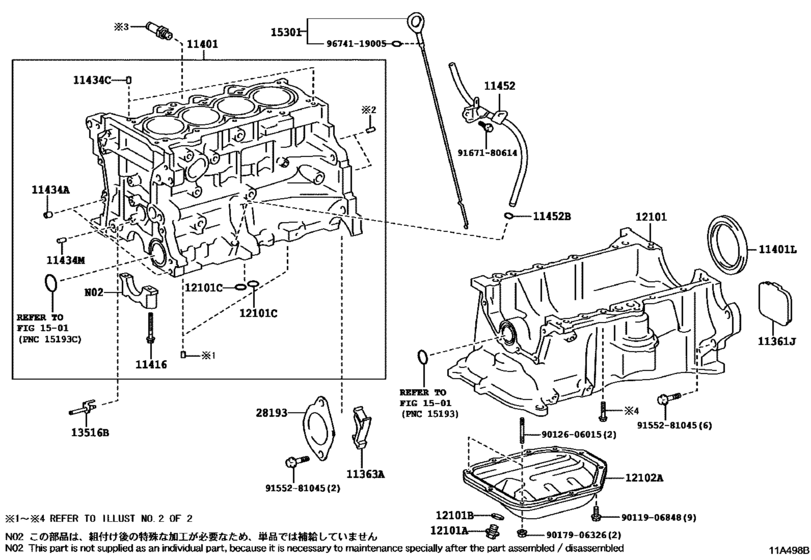

Cylinder Block ([07.2015 - ] (1507- )1NZFXE) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- NHP170
- grade
- G
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 07.2015
- Seating Capacity
- 06S
- Vehicle Model
- SIENTA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11361J
|
11361J
11361-21011 Cover, Flywheel Housing Under[06.2015 -] 1NZ#..NCP175,NHP170 |
11361-21011 |
US $7.84 |
||
|
11363A
|
11363A
11363-21020 Cover, Flywheel Housing Side[07.2015 -] 1NZFXE..NHP170 |
11363-21020 |
US $3.35 |
||
|
11401
|
11401
11401-80804 Block Sub-Assy, Cylinder[07.2015 - 12.2015] 1NZFXE..NHP170 |
11401-80804 |
US $1,688.96 |
||
| replacement | |||||
|
11401
|
11401
11401-80883 Block Sub-Assy, Cylinder[07.2015 - 12.2015] 1NZFXE..NHP170 |
11401-80883 |
US $1,528.80 |
||
|
11401
|
11401
11401-80883 Block Sub-Assy, Cylinder[12.2015 -] 1NZFXE..NHP170 |
11401-80883 |
US $1,528.80 |
||
|
11401L
|
11401L
90311-75019 Seal, Engine Rear Oil[06.2015 - 03.2016] 1NZ#..NCP175,NHP170 |
90311-75019 |
US $20.24 |
||
| replacement | |||||
|
11401L
|
11401L
90311-75022 Seal, Engine Rear Oil[06.2015 - 03.2016] 1NZ#..NCP175,NHP170 |
90311-75022 |
from US $21.13 |
||
|
11401L
|
11401L
90311-75022 Seal, Engine Rear Oil[04.2016 -] 1NZ#..NCP175,NHP170 |
90311-75022 |
from US $21.13 |
||
|
11416
|
11416
90910-02125
Bolt(For Crankshaft Bearing Cap Set)
[06.2015 -] 1NZ#..NCP175,NHP170 |
90910-02125 |
— | ||
| replacement | |||||
|
11416
|
11416
9091002207 Bolt[06.2015 -] 1NZ#..NCP175,NHP170 |
9091002207 |
US $2.56 |
||
|
11434A
|
11434A
90253-08003 Pin, Ring W/head[07.2015 -] 1NZFXE..NHP170 長さ＝８，外径＝８ |
90253-08003 |
US $1.28 |
||
|
11434C
|
11434C
90250-08120 Pin, Straight, No.1[06.2015 -] 1NZ#..NCP175,NHP170 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.07 |
||
|
11434M
|
11434M
90250-10030 Pin, Straight(For Clutch Housing Set)[06.2015 -] 1NZ#..NCP175,NHP170 |
90250-10030 |
from US $1.40 |
||
|
11452
|
11452
11452-21060 Guide, Oil Level Gage[07.2015 -] 1NZFXE..NHP170 |
11452-21060 |
US $21.99 |
||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[06.2015 -] 1NZ#..NCP175,NHP170 |
96721-19010 |
from US $1.64 |
||
|
12101
|
12101
12111-21070 Pan Sub-Assy, Oil[07.2015 -] 1NZFXE..NHP170 |
12111-21070 |
US $567.84 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[06.2015 -] 1NZ#..NCP175,NHP170 |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[06.2015 -] 1NZ#..NCP175,NHP170 |
90341-T0004 |
US $4.49 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[06.2015 -] 1NZ#,2NRFKE..NCP175,NHP170,NSP17# |
90430-12031 |
from US $0.88 |
||
|
12101C
|
12101C
96722-24020 Ring, O(For Oil Pan)[06.2015 -] 1NZ#..NCP175,NHP170 |
96722-24020 |
from US $2.24 |
||
|
12102A
|
12102A
12102-21010 Pan Sub-Assy, Oil, No.2[06.2015 -] 1NZ#..NCP175,NHP170 |
12102-21010 |
from US $51.25 |
||
|
13516B
|
13516B
13516-21011 Jet, Oil[06.2015 -] 1NZ#..NCP175,NHP170 |
13516-21011 |
US $5.07 |
||
|
15301
|
15301
15301-21050 Gage Sub-Assy, Oil Level[07.2015 - 12.2016] 1NZFXE..NHP170 |
15301-21050 |
US $11.07 |
||
| replacement | |||||
|
15301
|
15301
15301-21051 Gage Sub-Assy, Oil Level[07.2015 - 12.2016] 1NZFXE..NHP170 |
15301-21051 |
US $12 |
||
|
15301
|
15301
15301-21051 Gage Sub-Assy, Oil Level[01.2017 -] 1NZFXE..NHP170 |
15301-21051 |
US $12 |
||
|
28193
|
28193
28193-21020 Insulator, Starter Hole[07.2015 -] 1NZFXE..NHP170 |
28193-21020 |
US $7.72 |
||
|
9011906848
|
9011906848
90119-06848 BOLT WWASHER |
90119-06848 |
US $0.96 |
||
|
9012606015
|
9012606015
90126-06015 Bolt, Stud(For Oil Pan) |
90126-06015 |
from US $1.76 |
||
|
9017906326
|
9017906326
90179-06326 NUT W-WASHER |
90179-06326 |
from US $0.70 |
||
| replacement | |||||
|
9017906326
|
9017906326
90182-A0010 New Genuine Part |
90182-A0010 |
US $2.13 |
||
|
9155281045
|
9155281045
91552-81045 Bolt, No.1(For Alternator) |
91552-81045 |
US $1.92 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
|
9674119005
|
9674119005
96741-19005 O-Ring (For Oil Level Gage) |
96741-19005 |
from US $2.24 |
||
