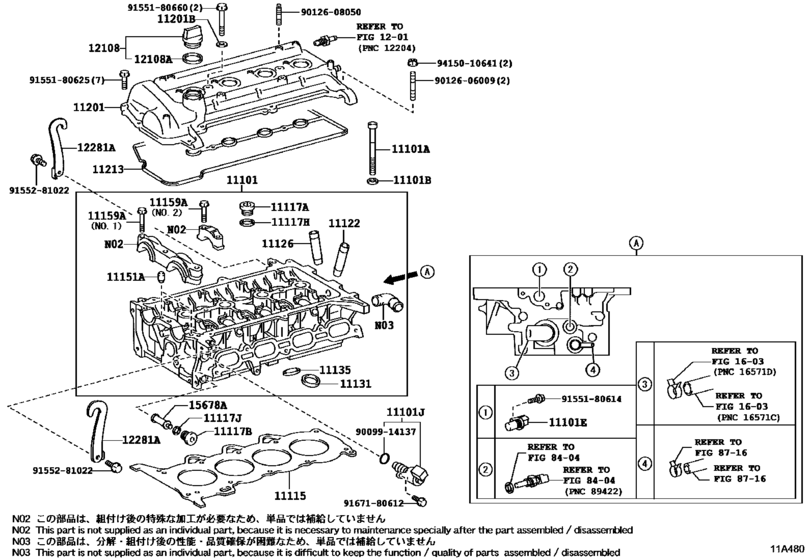

Cylinder Head ([07.2015 - ] (1507- )1NZFXE) Diagram Toyota SIENTA
- Year
- 2015 - 2018
- Sales region
- Japan
- Frame
- NHP170
- grade
- G
- body
- WG
- ENGINE
- 1NZFXE
- TRANSMISSION
- CVT
- From
- 07.2015
- Seating Capacity
- 06S
- Vehicle Model
- SIENTA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-21080 Head Sub-Assy, Cylinder[07.2015 -] 1NZFXE..NHP170 |
11101-21080 |
US $1,068.45 |
||
|
11101A
|
11101A
90910-02170 Bolt(For Cylinder Head Set)[06.2015 -] 1NZ#..NCP175,NHP170 |
90910-02170 |
from US $3.84 |
||
|
11101B
|
11101B
90201-09024 Washer, Plate(For Cylinder Head Set)[06.2015 -] 1NZ#..NCP175,NHP170 |
90201-09024 |
from US $1.17 |
||
|
11101E
|
11101E
90919-05024 Sensor, Cam Position[06.2015 -] 1NZ#..NCP175,NHP170 |
90919-05024 |
from US $62.78 |
||
|
11101J
|
11101J
15330-21030 Valve Assy, Camshaft Timing Oil Control[01.2017 -] 1NZFXE..NHP170 |
15330-21030 |
US $121.36 |
||
|
11101J
|
11101J
15330-21040 Valve Assy, Camshaft Timing Oil Control[07.2015 - 12.2016] 1NZFXE..NHP170 |
15330-21040 |
US $108.04 |
||
|
11115
|
11115
11115-21091 Gasket, Cylinder Head[06.2015 -] 1NZ#..NCP175,NHP170 |
11115-21091 |
from US $33.93 |
||
|
11117A
|
11117A
90341-20002 Plug, W/head Taper Screw, No.1[07.2015 -] 1NZFXE..NHP170 |
90341-20002 |
from US $2.88 |
||
|
11117B
|
11117B
90341-14013 Plug, W/head Taper Screw, No.1[06.2015 -] 1NZ#..NCP175,NHP170 |
90341-14013 |
from US $1.92 |
||
|
11117H
|
11117H
90430-20004 Gasket(For Cylinder Head Screw Plug)[07.2015 -] 1NZFXE..NHP170 |
90430-20004 |
from US $1.01 |
||
|
11117J
|
11117J
90430-14009 Gasket(For Cylinder Head Screw Plug)[06.2015 -] 1NZ#..NCP175,NHP170 |
90430-14009 |
US $1.28 |
||
|
11122
|
11122
11122-21010 Bush, Intake Valve Guide[07.2015 -] 1NZFXE..NHP170 ＳＴＤ |
11122-21010 |
US $8 |
||
|
11122
|
11122
11123-21010 Bush, Intake Valve Guide[07.2015 -] 1NZFXE..NHP170 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11126
|
11126
11122-21010 Bush, Intake Valve Guide[07.2015 -] 1NZFXE..NHP170 ＳＴＤ |
11122-21010 |
US $8 |
||
|
11126
|
11126
11123-21010 Bush, Intake Valve Guide[07.2015 -] 1NZFXE..NHP170 Ｏ／Ｓ ０．０５ |
11123-21010 |
US $6.33 |
||
|
11131
|
11131
11131-21020
Seat, Intake Valve
[06.2015 - 04.2016] 1NZFXE..NHP170 ＳＴＤ |
11131-21020 |
— | ||
| replacement | |||||
|
11131
|
11131
11131-21021
Seat, Intake Valve
[06.2015 - 04.2016] 1NZFXE..NHP170 ＳＴＤ |
11131-21021 |
— | ||
|
11131
|
11131
11131-21021
Seat, Intake Valve
[04.2016 -] 1NZFXE..NHP170 ＳＴＤ |
11131-21021 |
— | ||
|
11131
|
11131
11132-21020 Seat, Intake Valve[06.2015 - 04.2016] 1NZFXE..NHP170 Ｏ／Ｓ ０．０３ |
11132-21020 |
US $11.50 |
||
|
11131
|
11131
11132-21021 Seat, Intake Valve[04.2016 -] 1NZFXE..NHP170 Ｏ／Ｓ ０．０３ |
11132-21021 |
US $10.34 |
||
|
11135
|
11135
11135-21040 Seat, Exhaust Valve[07.2015 -] 1NZFXE..NHP170 ＳＴＤ |
11135-21040 |
US $10.34 |
||
|
11135
|
11135
11136-21040 Seat, Exhaust Valve[07.2015 -] 1NZFXE..NHP170 Ｏ／Ｓ ０．０３ |
11136-21040 |
US $10.34 |
||
|
11151A
|
11151A
90250-06001 Pin, Straight[06.2015 -] 1NZ#..NCP175,NHP170 長さ＝１４，外径＝６ |
90250-06001 |
US $1.60 |
||
|
11159A
|
11159A
90109-06080 Bolt, Stud(For Head To Cylinder Head Cover)[07.2015 -] 1NZFXE..NHP170 ＮＯ．１：イラスト参照 |
90109-06080 |
from US $1.19 |
||
|
11159A
|
11159A
90119-08A29 Bolt(For Head To Camshaft Bearing Cap)[07.2015 -] 1NZFXE..NHP170 ＮＯ．２：イラスト参照 |
90119-08A29 |
US $1.60 |
||
|
11201
|
11201
11201-21080 Cover Sub-Assy, Cylinder Head[07.2015 -] 1NZFXE..NHP170 |
11201-21080 |
US $202.38 |
||
|
11201B
|
11201B
90210-05008 Washer, Seal(For Cylinder Head Cover)[07.2015 -] 1NZFXE..NHP170 |
90210-05008 |
from US $0.80 |
||
|
11213
|
11213
11213-21011 Gasket, Cylinder Head Cover[07.2015 -] 1NZFXE..NHP170 |
11213-21011 |
from US $15.66 |
||
|
12108
|
12108
12180-38010 Cap Sub-Assy, Oil Filler[06.2015 -] 1NZ#,2NRFKE..NCP175,NHP170,NSP17# |
12180-38010 |
from US $10.24 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[06.2015 -] 1NZ#,2NRFKE..NCP175,NHP170,NSP17# |
90430-35001 |
from US $1.21 |
||
|
12281A
|
12281A
12281-21090 Hanger, Engine, No.1[06.2015 -] 1NZ#..NCP175,NHP170 |
12281-21090 |
US $15.50 |
||
|
15678A
|
15678A
15678-21010 Filter, Oil Control Valve[06.2015 -] 1NZ#..NCP175,NHP170 |
15678-21010 |
from US $5.34 |
||
|
9009914137
|
9009914137
90099-14137 Ring, O(For Cam Timing Oil Control Valve) |
90099-14137 |
from US $2.22 |
||
|
9012606009
|
9012606009
90126-06009 STUD HEX LOBULAR |
90126-06009 |
US $2.08 |
||
|
9012608050
|
9012608050
90126-08050 New Genuine Part |
90126-08050 |
US $1.28 |
||
|
9155180614
|
9155180614
91551-80614 Bolt(For Vacuum Transmitting Pipe) |
91551-80614 |
from US $0.66 |
||
|
9155180625
|
9155180625
91551-80625 Bolt(For Camshaft Housing Set) |
91551-80625 |
from US $0.70 |
||
|
9155180660
|
9155180660
91551-80660 BOLT FLANGE |
91551-80660 |
US $1.28 |
||
|
9155281022
|
9155281022
91552-81022 New Genuine Part |
91552-81022 |
US $1.76 |
||
|
9167180612
|
9167180612
91671-80612 Bolt |
91671-80612 |
from US $0.68 |
||
|
9415010641
|
9415010641
94150-10641 Nut |
94150-10641 |
US $0.96 |
||
